Description

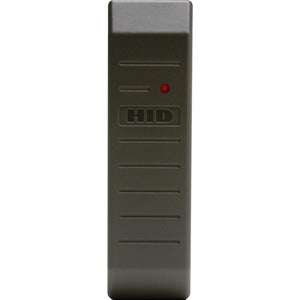

HID MiniProx 5365 Smart Card Reader
The HID MiniProx 5365 Smart Card Reader is a compact, rugged proximity card reader designed to secure access points across commercial, educational, and institutional environments. Built with potted electronics, this reader delivers enhanced security by protecting critical reading components from tampering and environmental exposure. Its slim, elegant profile makes it suitable for both indoor and outdoor mounting, blending with modern architectural aesthetics while delivering dependable performance. With flexible power and interface options, the MiniProx 5365 provides a versatile solution that integrates seamlessly with a wide range of access control systems, credential types, and installation scenarios.
- Mullion-mount proximity card reader with a slim, attractive design ideal for indoor or outdoor installations.
- Potted electronics deliver enhanced security, tamper resistance, and protection against environmental influences.
- Wide input voltage range of 5 to 16 volts, enabling compatibility with most access control power supplies and configurations.
- Flexible interface options including Wiegand or Clock-and-Data (C&D) to accommodate popular access controllers and circuit designs.
- Compact form factor that preserves architectural aesthetics while delivering reliable, consistent card reading performance in challenging environments.
Technical Details of HID MiniProx 5365
- Voltage: 5–16 V DC input, supporting a broad range of power supplies used in access control systems.
- Interfaces: Wiegand and Clock-and-Data (C&D) options available for easy integration with common controllers.
- Mounting: Mullion-mount design designed for secure placement on door frames, glass walls, or architectural mullions—works well for indoor and outdoor applications.
- Construction: Potted electronics to improve security against tampering and to shield sensitive components from moisture, dust, and temperature fluctuations.
- Form factor: Slim, compact reader that minimizes visual impact while maintaining robust performance in demanding environments.
How to install HID MiniProx 5365
Installing the HID MiniProx 5365 is straightforward for technicians familiar with access control hardware. Follow these practical steps to achieve a reliable installation that maximizes security and reliability:
- Plan placement: Choose a secure, accessible location on the mullion that allows for convenient card presentation while minimizing exposure to direct moisture, heavy dust, or potential impact. Confirm there is a power source within the 5–16 V DC range and identify the appropriate controller interface (Wiegand or Clock-and-Data) for your system.
- Mount the reader: Use the supplied mounting hardware to attach the reader to the mullion. Ensure the reader sits flush against the surface and that the faceplate is oriented for easy card presentation by users. Tighten screws securely without over-tightening to avoid warping the housing.
- Connect power: Wire the reader to a 5–16 V DC power supply. Verify polarity where applicable and route power conductors away from high-traffic areas to protect against wear and accidental disconnection.
- Connect data lines: Run the selected interface cables to the access controller. If using Wiegand, connect the three primary lines (data0, data1, and common ground) as specified by the controller’s documentation. If using Clock-and-Data, follow the controller's clock and data connection guidelines. Ensure tight, secure connections to minimize signal integrity issues.
- Test and configure: Power the system and verify that the reader reports correctly to the controller. Use valid credentials to confirm successful reads, and observe LED indicators and controller responses. If available, enable any required anti-passback or access rules in the controller and perform a functional test with multiple credential types to ensure compatibility.
- Final checks: Confirm there are no loose cables or exposed conductors. Clean any debris around the mount, and confirm that the reader remains stable under typical environmental conditions. Document the installation for future maintenance and compliance records.
Frequently asked questions
-
Q: Is the HID MiniProx 5365 suitable for outdoor use?
A: Yes. The reader is designed for indoor or outdoor mounting, aided by its potted electronics and robust mullion-mount housing that withstands environmental exposure.
-
Q: What voltage does it require?
A: The MiniProx 5365 operates on a voltage range of 5 to 16 volts DC, allowing compatibility with many standard access control power supplies.
-
Q: Which interfaces are supported?
A: The reader is available with Wiegand or Clock-and-Data (C&D) interface options to align with a wide variety of access controllers and system architectures.
-
Q: What is meant by potted electronics?
A: Potted electronics mean the internal circuitry is encapsulated to provide enhanced security, moisture resistance, and protection from tampering, improving long-term reliability in diverse conditions.
-
Q: What mounting style is used?
A: The reader uses a mullion-mount design, ideal for securing access points on door frames, glass partitions, or architectural mullions while maintaining a slim, unobtrusive appearance.
-
Q: Is there any special maintenance required?
A: Routine maintenance for proximity readers typically includes periodic cleaning of the reading surface, inspection of mounting hardware, and verification of power and data connections. Always follow your organization’s maintenance schedule and the controller’s documentation.
