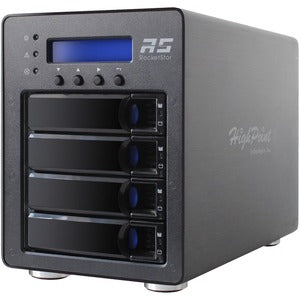

HighPoint 4-Bay M.2 NVMe RAID Storage Solution

Experience the pinnacle of external desktop storage with the HighPoint SSD6540M-powered 4-Bay M.2 NVMe RAID Storage Solution. Engineered for professionals who demand uncompromising speed, reliability, and expandability, this enclosure turns four M.2 NVMe SSDs into a single, high-performance storage array. Boasting a PCIe 3.0 x16 host interface and a blistering up to 14,000 MB/s transfer rate, it delivers levels of throughput once reserved for enterprise-class systems. It’s the ideal solution for video editors, 3D artists, engineers, and data scientists who need rapid data access, real-time playback, and accelerated backups. Whether you’re working on multi-track 4K/8K projects, running large simulations, or archiving massive datasets, this external RAID storage solution keeps pace with your workflow while remaining simple to install and monitor.

• Blistering performance with NVMe power: Four M.2 NVMe SSDs work in concert through a PCIe 3.0 x16 host interface to unleash up to 14,000 MB/s of sustained throughput. This level of speed dramatically shortens project render times, reduces bottlenecks in data-heavy workflows, and enables real-time playback for high-resolution footage and large datasets.
• Flexible RAID for speed or redundancy: Choose from multiple RAID configurations to tailor performance and data protection to your needs. RAID 0 delivers maximum throughput for workloads that benefit from speed, while RAID 1, 5, and 10 provide redundancy and fault tolerance. JBOD/SPAN mode is available for non-RAID, single-volume access across all drives when larger, raw capacity is the priority.
• Cross-platform compatibility: Built to fit modern production pipelines, the HighPoint 4-Bay NVMe RAID Storage Solution supports Windows, Linux, and macOS. It integrates with a wide range of software ecosystems and hardware configurations, making it a versatile addition to any workstation, server room, or creative studio.
• Professional-grade reliability and management: The SSD6540M enclosure is engineered for demanding workloads, with robust thermal management, durable cooling, and clear drive activity indicators. The included management software gives you real-time health monitoring, RAID configuration, and easy volume administration, so you can optimize performance and safeguard data with confidence.
• Tool-less setup and expandability: Designed for quick installation, the four drive bays are accessible for effortless drive insertion and removal, supporting hot-swappable NVMe SSDs where applicable. The external desktop form factor keeps the unit out of the way on your desk while providing scalable storage that grows with your project needs.

Technical Details of HighPoint 4-Bay M.2 NVMe RAID Storage Solution

• Model: SSD6540M
• Form factor: External desktop RAID storage enclosure
• Drive bays: 4 x M.2 NVMe SSD bays
• Host interface: PCIe 3.0 x16
• Supported drives: Standard M.2 NVMe SSDs (sizes such as 2242/2260/2280 commonly supported by the enclosure)
• RAID levels: RAID 0, RAID 1, RAID 5, RAID 10, and JBOD/SPAN
• Operating system compatibility: Windows, Linux, macOS
• Throughput: Up to 14,000 MB/s theoretical maximum (actual speeds depend on drives, RAID level, and workload)
• Power: External power supply (AC input for reliable, sustained performance)
• Cooling and reliability: Integrated thermal management and cooling to support prolonged, high-speed operation
• Management: Included software suite for RAID configuration, monitoring, and drive health
• Connectivity: PCIe 3.0 x16 host connection for high-bandwidth data transfer

How to install HighPoint 4-Bay M.2 NVMe RAID Storage Solution

• Prepare your workspace by powering off the host computer and disconnecting power. Place the enclosure on a stable, static-free surface and ensure you have a compatible PCIe slot available for the host connection.
• Install up to four M.2 NVMe SSDs into the four bays. Align the notch on each drive with the connector and gently press down until it seats securely. If your drives require heat dissipation accessories, attach them according to the drive maker’s guidelines before insertion.
• Connect the enclosure to your host system using the PCIe 3.0 x16 interface cable included with the unit. Ensure the host motherboard or expansion card supports enough PCIe lanes for optimal performance.
• Power on the enclosure and boot your computer. Install any required drivers or the management software provided by HighPoint from the official source, then launch the RAID management utility. The enclosure should appear as a controllable device in the software.
• Configure your preferred RAID level and create volumes. Format the newly created volumes in your operating system, then begin transferring data. For ongoing maintenance, monitor drive health and temperature using the management software to extend the life of your NVMe SSDs and preserve data integrity.

Frequently asked questions

• Q: What speed can I expect from the HighPoint 4-Bay NVMe RAID Storage Solution? A: Theoretical speeds reach up to 14,000 MB/s with four high-performance NVMe drives in RAID configurations that maximize bandwidth. Real-world performance varies with drive models, RAID level, and workload characteristics.
• Q: Which operating systems are supported? A: The device is designed to be used with Windows, Linux, and macOS environments, facilitating broad compatibility across workstations, servers, and creative workstations.
• Q: Can I hot-swap drives? A: Yes, the enclosure supports hot-swapping in many configurations, allowing you to replace drives without powering down the system. Always consult your drive and enclosure documentation for best practices when hot-swapping.
• Q: What RAID levels are available? A: You can configure RAID 0, RAID 1, RAID 5, RAID 10, or use JBOD/SPAN to maximize either performance or data protection according to your needs.
• Q: How many NVMe drives can I install? A: The unit supports up to four M.2 NVMe SSDs simultaneously, providing substantial throughput and storage capacity for demanding workloads.
• Q: Do I need special software to manage the RAID configuration? A: The HighPoint management software is included to configure RAID levels, create volumes, monitor health, and manage performance. It helps simplify setup and ongoing maintenance.
• Q: Is there any required driver installation? A: Depending on your operating system and hardware, you may need to install drivers or management utilities. Check the product’s official software package for the latest versions and installation instructions.
