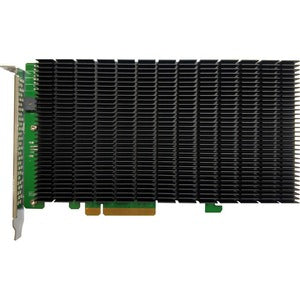

HighPoint SSD7204: Industry's Best Cost/Performance NVMe RAID Controller

The HighPoint SSD7204 redefines NVMe RAID with a focus on cost-efficiency and outstanding performance for Mac, Linux, and Windows environments. Designed to unlock the full speed of NVMe M.2 SSDs, this PCIe RAID controller delivers a flexible, high-capacity storage solution that scales from everyday computing to demanding professional workflows. Whether you’re editing 4K video, rendering complex graphics, running data-intensive simulations, or managing a high-throughput media library, the SSD7204 is engineered to maximize throughput while minimizing latency and CPU overhead. Its zero-noise cooling approach ensures quiet operation in workstations, studios, and server rooms, letting you push throughput without compromising acoustics. Seamlessly integrate multiple NVMe drives into a robust RAID array to balance speed, redundancy, and raw capacity for an optimized storage backbone.

• Industry-leading cost/performance NVMe RAID: The SSD7204 is built to offer exceptional value in high-speed storage, combining a sophisticated RAID engine with NVMe M.2 support to deliver fast sequential and random I/O. It enables high-bandwidth workloads with efficient CPU utilization, so professionals can enjoy faster file transfers, quicker backups, and snappier OS/app performance across Mac, Linux, and Windows platforms. RAID 0 delivers maximum speed for throughput-driven tasks, while RAID 1 provides data redundancy, and RAID 1/0 delivers a balanced blend of performance and protection. For data preservation on critical projects or large-scale datasets, the SSD7204 also supports single-disk mode and JBOD for flexible configurations.
• Zero-noise cooling for demanding workflows: The SSD7204 features a groundbreaking cooling solution that keeps NVMe drives operating at peak efficiency without fan noise. This passive cooling approach reduces hardware noise in workstations and media suites, enabling longer sessions without distraction. The absence of moving parts also lowers the potential for mechanical failures, contributing to longer-term reliability in mission-critical environments where silent operation matters as much as performance.
• Flexible PCIe integration and scalable bandwidth: This controller is designed for flexible deployment in systems with PCIe x8 or x16 slots, giving you the freedom to choose the closest available bandwidth path. It provides a dedicated PCIe 3.0 x8 bus bandwidth to the controller and up to PCIe 3.0 x4 bandwidth per NVMe M.2 SSD, ensuring sustained performance across multiple drives. The SSD7204 supports configurations with multiple NVMe M.2 SSDs, enabling you to scale storage capacity as your workload grows without compromising throughput or latency. The card is ideal for workstation-class builds, professional editing rigs, and dense storage servers where every I/O cycle counts.
• Cross-platform compatibility and intuitive management: Built to work across Mac, Linux, and Windows environments, the SSD7204 delivers broad compatibility for mixed-OS studios and data centers. The RAID management experience is designed to be intuitive, with straightforward configuration of common RAID levels and easy health monitoring of individual drives. With robust driver support and firmware updates, you can maintain peak performance and reliability over the life of the system. The combination of cross-platform support and user-friendly management tools makes it a practical choice for diverse deployment scenarios.
• Reliable performance with enterprise-grade endurance: The SSD7204 emphasizes durability and long-term reliability. With high-quality components, efficient heat dissipation, and a design focused on minimizing bottlenecks, this controller is built to handle sustained workloads typical of media editing, 3D rendering, database operations, and virtualized environments. In addition to speed, you get persistent data protection options and a solid foundation for a storage subsystem you can depend on during critical production cycles.

Technical Details of HighPoint SSD7204

• Model: HighPoint SSD7204 NVMe RAID Controller Card
• Form Factor: PCIe add-in card (AIC) designed for desktop and workstation slots
• Host Interface: PCIe 3.0 with a dedicated PCIe 3.0 x8 bus
• Slot Compatibility: Flexible use with PCIe x8 and x16 slots (depending on motherboard capabilities and slot spacing)
• NVMe Support: NVMe M.2 SSDs configured in RAID arrays or as single disks
• RAID Levels: RAID 0, RAID 1, RAID 1/0 (RAID 10), and JBOD; can operate with a single disk for simple storage
• Drive Count: Supports multiple NVMe M.2 SSDs routed through the controller to form RAID sets (exact drive count varies by motherboard/BIOS constraints and slot layout)
• Cooling: Zero-noise, passive cooling design (no fans required for typical operation), contributing to silent system performance
• Operating System Compatibility: Mac, Linux, and Windows supported with appropriate drivers and utilities
• Management: Includes RAID configuration and health monitoring utilities to manage arrays, monitor drive SMART data, and update firmware
• Power: Power delivery designed to support NVMe drives within RAID configurations; dependent on system power supply and PCIe slot current limits
• Warranty and Support: Manufacturer-backed warranty with software and firmware updates to maintain compatibility and performance over time

How to Install HighPoint SSD7204

• Step 1 — Power down and prepare: Ensure your computer is powered off and unplugged. Ground yourself to avoid static damage to components. Open the case and locate an available PCIe x8 or x16 slot on the motherboard that aligns with your case layout and airflow requirements.
• Step 2 — Install the SSD7204 card: Insert the HighPoint SSD7204 into the chosen PCIe slot, applying firm but careful pressure until it is fully seated. Secure the card with a screw to the chassis bracket to prevent movement during operation.
• Step 3 — Install NVMe M.2 SSDs: Insert NVMe M.2 SSDs into the card’s drive slots or connectors as specified by the SSD7204’s user guide. Ensure each drive is properly seated and that any required heat sinks or spacers are in place if your chassis design dictates.
• Step 4 — Power and BIOS/UEFI setup: Reconnect power and boot into your system BIOS/UEFI. Confirm that the SSD7204 is recognized as a PCIe device. If necessary, enable any PCIe slot configuration options (such as Gen3/Gen4 compatibility) to maximize bandwidth. Save changes and boot into your operating system.
• Step 5 — Install drivers and configure RAID: In your OS, install the HighPoint management utilities and drivers recommended for your platform. Launch the RAID management tool to initialize and configure your drives, select the desired RAID level (0, 1, 1/0, or JBOD), and create the array. Initialize and format the logical volume as needed for your workflow.
• Step 6 — Optimize and monitor: Use the included monitoring software to track drive health, temperatures, and array status. Update firmware if prompted to ensure compatibility with the latest NVMe drives and performance improvements. Fine-tune caching, read-ahead settings, and OS-level optimizations to fully leverage the RAID capabilities.

Frequently asked questions

• Q: What RAID levels does the HighPoint SSD7204 support?

  A: The SSD7204 supports RAID 0 for maximum speed, RAID 1 for redundancy, RAID 1/0 (RAID 10) for a balance of performance and protection, JBOD for independent drive use, and a single-disk mode for simple storage configurations.

• Q: How many NVMe M.2 drives can be used with the SSD7204?

  A: The number of drives depends on the card’s drive slots and how they’re wired to the PCIe bus. The SSD7204 is designed to enable multiple NVMe M.2 SSDs in RAID configurations with a scalable bandwidth approach. Refer to your motherboard’s slot layout and the card’s documentation for exact drive count in your setup.

• Q: Is the SSD7204 compatible with Mac, Linux, and Windows?

  A: Yes. The SSD7204 is designed for cross-platform use and provides drivers and management utilities compatible with Mac, Linux, and Windows environments, enabling consistent performance and management across operating systems.

• Q: Do I need special software to configure RAID on the SSD7204?

  A: Yes. The HighPoint management utilities are recommended for configuring RAID arrays, monitoring drive health, and updating firmware. These tools help simplify array creation, status checks, and maintenance tasks.

• Q: Can I boot from an SSD7204-controlled array?

  A: Boot capability depends on your operating system and motherboard firmware. In many setups, NVMe RAID arrays are used for data drives rather than boot drives. Always consult the motherboard documentation and HighPoint guidance for boot support in your specific configuration.
