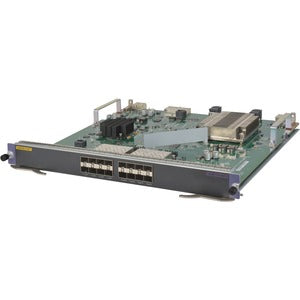

HPE 10500 16-Port 1/10GbE SFP+ SF Module

The HPE 10500 16-port 1/10GbE SFP+ SF Module is a high-density expansion solution designed for optical and data networking environments. Engineered to maximize throughput and extend the reach of your network, this SF module delivers 16 flexible SFP+ and SFP (mini-GBIC) ports to support a broad range of fiber optic transceivers and link configurations. It’s the ideal upgrade path for enterprises, data centers, and service providers looking to scale their backbone, aggregation, and distribution layers while maintaining simplicity and reliability in one compact expansion module. Built to integrate seamlessly with HPE 10500-class infrastructure, this module unlocks new levels of performance and scalability without compromising space or manageability.

• High-density 16-port 1/10GbE SFP+ capability: This module consolidates sixteen fiber-optic ports into a single expansion module, delivering robust 1/10 Gigabit Ethernet connectivity to support dense connectivity requirements in modern data centers and campus networks.
• Versatile optical networking support: With SFP+ and SFP (mini-GBIC) compatibility, you can deploy a wide range of transceivers to tailor your fiber connectivity to single-mode or multi-mode environments, reach distances, and power budgets.
• Seamless integration with HPE 10500 series: Engineered for the HPE 10500 family, this SF module aligns with your existing chassis, management tools, and service profiles, enabling straightforward expansion and consistent policy enforcement across the network.
• Dense, scalable design for growing networks: The 16-port expansion provides the density needed for data-intensive workloads, high-availability fabrics, and scalable topologies while preserving a clean rack footprint.
• Reliable performance for data-intensive workloads: With 1/10 GbE options, users gain predictable low-latency connectivity, high throughput, and flexible deployment paths that support virtualization, storage networks, and converged infrastructures.

Technical Details of HPE 10500 16-port 1/10GbE SFP+ SF Module

• Port configuration: 16 x SFP+/SFP (mini-GBIC) expansion ports for 1/10 GbE optical connectivity
• Module type: SF (Small Form-factor) expansion module designed for optical network and data networking applications
• Supported speeds: 1 Gbps and 10 Gbps Ethernet via compatible SFP/SFP+ transceivers
• Application focus: Optical networking, data networking, scalable uplinks, and high-density fiber connectivity
• Form factor and compatibility: Expansion module compatible with HPE 10500-series switches and chassis, enabling straightforward capacity upgrades
• Transceivers and fiber types: Supports a range of SFP+/SFP transceivers for single-mode and multi-mode fiber, allowing flexible fiber deployment strategies

how to install HPE 10500 16-port 1/10GbE SFP+ SF Module

• Prepare the chassis: Ensure your HPE 10500-series system is powered down or follow your vendor’s hot-swappability guidelines if applicable, and discharge static electricity before handling components.
• Identify the correct expansion slot: Locate an appropriate expansion slot or module bay in the chassis that supports SF expansion modules and aligns with the 16-port footprint.
• Align and insert the module: Gently align the module’s connectors with the chassis backplane and insert it fully until it seats securely. Pay attention to any guides or latches that hold the module in place.
• Secure and verify: Engage any retention mechanisms as required by the chassis design, then power the system back on. Use the management interface to verify the module is recognized and that the ports are active.
• Configure transceivers and cables: Install appropriate SFP+/SFP transceivers for your fiber type (single-mode or multi-mode) and connect the fiber optic cables. Configure the port profiles, speed settings, and any necessary VLAN or QoS rules in your network management system.

Frequently asked questions

• Q: What does the HPE 10500 16-port 1/10GbE SFP+ SF Module offer? A: It provides a dense expansion solution with 16 SFP+/SFP ports for 1/10 GbE optical connectivity, designed to extend and enhance optical network and data networking capabilities within HPE 10500-series environments.
• Q: Which environments are best suited for this module? A: It is ideal for data centers, enterprise campuses, and service provider backbones where high-density, flexible fiber connectivity is required to support 1/10 GbE deployments and scalable network fabrics.
• Q: Do I need separate transceivers? A: Yes. This expansion module provides the ports; you will pair it with appropriate SFP+/SFP transceivers and fiber cables according to your distance and fiber type requirements.
• Q: Is this module compatible with all HPE switches? A: This module is designed for use with HPE 10500-series devices. Ensure compatibility with your specific chassis model and firmware version before installation.
• Q: Can I mix transceiver types on the same module? A: In most cases, yes, you can mix SFP+ transceivers to meet diverse links; however, verify vendor guidelines and ensure corresponding port configurations and link budgets are properly set up in your management software.
