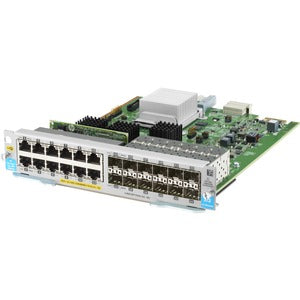

HPE 12-Port 10/100/1000BASE-T PoE+ / 12-Port 1GbE SFP MACsec v3 zl2 Module

Engineered for high-density, secure, and scalable network deployments, the HPE 12-port PoE+ / 12-port SFP MACsec v3 zl2 Module is the ideal expansion solution for the HP 5400R zl2 Series Switch family. This dual-port-type expansion module brings robust power-enabled copper access and encrypted fiber connectivity into a single, compact device, enabling administrators to extend both local Ethernet access and secure inter-switch links without sacrificing performance or reliability. Built to meet the demands of modern campuses, data centers, and enterprise networks, this module helps you deliver high-bandwidth services—from IP phones and wireless access points to cameras and edge devices—while maintaining tight security and streamlined management across the network.

• High-density PoE+ copper ports for edge devices: 12 x 10/100/1000BASE-T PoE+ ports provide reliable power delivery to IP phones, surveillance cameras, wireless access points, and other PoE-enabled devices directly from the switch, reducing the need for separate power sources and simplifying cabling.
• Encrypted fiber uplinks with MACsec v3: 12 x 1GbE SFP ports support MACsec v3 hardware encryption, enabling secure, authenticated communications between switches and across campuses with low latency and minimal overhead.
• Seamless integration with HP 5400R zl2 Series: Specifically designed as an expansion module for the 5400R zl2 platform, ensuring compatibility, reliability, and optimal performance within HP’s networking ecosystem.
• Efficient, scalable security features: MACsec v3 hardware acceleration provides strong data protection at the link layer, helping organizations meet stringent regulatory and security requirements without compromising throughput.
• Unified performance and management: The module delivers high-throughput copper and fiber connectivity in a single slot, enabling centralized management, policy enforcement, and simplified troubleshooting through HP’s established network management tools.

Technical Details of HPE 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module

• Ports: 12 x 10/100/1000BASE-T PoE+ copper ports and 12 x 1GbE SFP MACsec-enabled fiber ports for secure inter-site uplinks and flexible expansion.
• MACsec v3: Hardware-assisted MACsec encryption on the SFP ports for robust, standards-based security at the data link layer.
• PoE+ capability: Per-port PoE+ support on copper ports enables powering compatible devices directly from the switch, simplifying deployment and reducing cable clutter.
• Form factor and compatibility: zl2 expansion module designed for the HP 5400R zl2 Series Switch family, ensuring straightforward installation in supported chassis with minimal downtime.
• Performance characteristics: Copper ports deliver up to 1 Gbps per link; SFP ports provide flexible 1 Gbps fiber connectivity suitable for uplinks, server connections, or inter-switch links.
• Security and policy integration: MACsec v3 encryption works in harmony with existing security policies and key-management practices within the 5400R zl2 environment.
• Management compatibility: Fully compatible with HP’s management frameworks and CLI, enabling configuration of PoE budgets, MACsec settings, and monitoring alongside other HP networking equipment.

how to install HPE 12-port 10/100/1000BASE-T PoE+ / 12-port 1GbE SFP MACsec v3 zl2 Module

• 1. Prepare the chassis: Ensure your HP 5400R zl2 Series switch is powered down or follows the vendor’s hot-swap guidelines for expansion modules.
• 2. Remove the vacant slot cover or existing module (if upgrading) to accommodate the zl2 expansion module.
• 3. Align the module’s edge connectors with the switch’s expansion slot, then carefully insert until seated firmly.
• 4. Secure the module in place according to the chassis requirements and reattach any panel covers if applicable.
• 5. Reconnect power and monitor the switch’s management console for POST messages or LED indicators that confirm successful recognition of the module.
• 6. Configure PoE settings, MACsec parameters, and port security policies through your preferred HP management tool or CLI to align with your network design.
• 7. Verify port activity: check copper PoE ports for powered devices and confirm SFP ports are online with the expected link status and encryption (MACsec) where applicable.

Frequently asked questions

• What is the purpose of this module? It is a dual-sided expansion module for the HP 5400R zl2 Series Switch that provides 12 PoE+ copper ports and 12 MACsec-enabled SFP fiber ports, enabling both powered edge access and secure uplinks in a single card.
• Does this module support PoE+ on all copper ports? Yes, the 12 copper ports support PoE+ to power compatible devices directly from the switch, reducing the need for external power injectors or adapters.
• What security features are included? The SFP ports support MACsec v3 hardware encryption, offering encrypted, authenticated communications at the data link layer to protect sensitive traffic between switches.
• Is this module compatible with all HP 5400R zl2 chassis? It is designed for the HP 5400R zl2 Series Switch family and should be installed in supported zl2 chassis that offer expansion slots compatible with this module.
• How do I manage and monitor the module? Manageability is provided through HP’s standard network management tools and CLI, allowing you to configure PoE budgets, MACsec settings, port-based policies, and monitor link status and throughput.
