HPE 20-Port PoE+ / 4-Port SFP+ MACsec v3 zl2 Module for HPE 5400R zl2 Switch Series

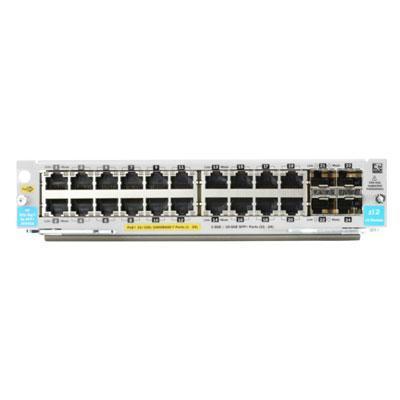

The HPE 20-port 10/100/1000BASE-T PoE+ / 4-port 1G/10GbE SFP+ MACsec v3 zl2 Module is a high-density networking upgrade engineered specifically for the HPE 5400R zl2 Switch Series. This powerful module brings together PoE+ power delivery on twenty Ethernet ports with ultra-fast SFP+ uplinks, all while delivering advanced security through MACsec v3 encryption. It is designed to help modern businesses scale their networks, simplify deployments, and protect data as it travels across wired connections. With seamless integration into the zl2 platform, this module unlocks flexible network architectures that support IP phones, wireless access points, cameras, servers, and a wide range of business-critical applications. Whether you’re expanding a campus network, upgrading a data center edge, or enhancing a branch deployment, this module provides the density, performance, and security you need to keep operations smooth and secure.

• 20-port PoE+ RJ-45 connectivity delivers Power over Ethernet+ (IEEE 802.3at) to devices like VoIP phones, IP cameras, wireless access points, and other PoE-enabled endpoints while maintaining robust data throughput on each port.
• 4-port 1G/10GbE SFP+ uplinks offer flexible, high-speed fiber connectivity for aggregation, server access, and inter-switch links, enabling scalable bandwidth growth as your network evolves.
• MACsec v3 encryption on the SFP+ ports provides Layer 2 security, ensuring confidentiality and integrity of data across wired links without impacting performance.
• Designed for HPE 5400R zl2 Switch Series compatibility ensures a seamless plug-in experience with the zl2 chassis, preserving management consistency and reliability across your network.
• Hot-swappable zl2 module with minimal downtime during installation, enabling non-disruptive upgrades and simple maintenance in busy environments.

Technical Details of HPE 20-Port PoE+ / 4-Port SFP+ MACsec v3 zl2 Module

• Port configuration: 20 x 10/100/1000BASE-T PoE+ RJ-45 ports plus 4 x SFP+ uplink ports (1G/10GbE) for flexible connectivity and high-speed interconnects.
• PoE+ support: IEEE 802.3at compliant on the 20 PoE+ ports, enabling power delivery to a range of PoE devices while maintaining data performance.
• Security features: MACsec v3 encryption on the SFP+ ports to protect data-in-transit across wired links with strong cryptographic integrity.
• Compatibility: Specifically designed for the HPE 5400R zl2 Switch Series, ensuring optimal integration with existing zl2 hardware and software ecosystems.
• Form factor and deployment: zl2 module designed for hot-swapping in compatible HPE chassis, enabling scalable growth without extensive downtime.
• Management and performance: Supports the enterprise-grade capabilities of the 5400R zl2 platform, including QoS, VLANs, and advanced switching features that leverage both PoE and SFP+ uplinks for resilient networks.

How to install HPE 20-Port 10/100/1000BASE-T PoE+ / 4-Port 1G/10GbE SFP+ MACsec v3 zl2 Module

Follow these steps to install the module into a compatible HPE 5400R zl2 switch, minimizing downtime and ensuring proper operation.

• Power down and unplug the switch (or ensure a maintenance window if your environment requires hot-swapping per your organization’s policies).
• Locate the appropriate line card or slot in the HPE zl2 chassis intended for the module, referencing the chassis documentation for slot numbering and compatibility.
• Remove the blanking plate from the target slot to prepare for the new module installation.
• Carefully align the module with the slot rails and slide it into the chassis until it seats firmly and the locking mechanism engages.
• Verify that the module is securely seated and the bezel or latch is tightened as required by the chassis design, then reapply power to the switch.
• Wait for the module to initialize, then access the switch management interface to verify port status, PoE enablement, and SFP+ link health. Configure PoE policies, VLANs, security features, and any required QoS settings as needed.
• Test critical paths by connecting PoE devices to the 20 PoE+ ports and validating data transmission, PoE operation, and uplink performance on the SFP+ ports.

Frequently asked questions

• Q: Is this module compatible with all HPE 5400R zl2 switches? A: It is designed for use with the HPE 5400R zl2 Switch Series and should be deployed in supported zl2 chassis configurations as specified by your network design and HP/HPE documentation.
• Q: Does the module support MACsec encryption? A: Yes. The SFP+ ports support MACsec v3 encryption to protect data transmitted over wired links.
• Q: How many PoE+ ports does this module provide? A: The module provides 20 PoE+ ports (10/100/1000BASE-T) for powering PoE-enabled devices while delivering data traffic over the same ports.
• Q: Can I mix this module with other zl2 modules in the same switch? A: Yes, this module is designed to integrate with the HPE 5400R zl2 platform and can be deployed alongside other compatible zl2 modules according to Hewlett Packard Enterprise guidelines for module installation and stacking or uplink configurations.
• Q: Is the installation disruptive to network services? A: Installation is designed to minimize downtime. When performed according to the manufacturer’s guidelines, you can expect a smooth install with careful planning, however, always schedule maintenance windows for critical network changes.
