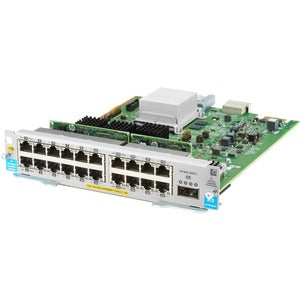

HPE 20-Port PoE+ MACsec / 1-Port 40GbE QSFP+ zl2 Expansion Module for 5400R zl2 Switch Series

The HPE 20-Port 10/100/1000BASE-T PoE+ MACsec / 1-Port 40GbE QSFP+ v3 zl2 Module is the ultimate expansion solution for the HP 5400R zl2 Switch Series. This dual-function module delivers dense PoE+ connectivity on 20 copper ports while providing a high-bandwidth 40GbE QSFP+ uplink, all in a compact zl2 form factor. Engineered for security-conscious networks and scalable deployments, it combines PoE+ power delivery, hardware-based MACsec encryption, and seamless integration with HP’s zl2 line to support IP phones, wireless access points, security cameras, and other PoE-powered devices. By adding this module, you unlock flexible, future-ready network expansion without replacing your current switch investment, while preserving top-tier performance for gigabit access and rapid core connectivity.

• Dense 20-port 10/100/1000BASE-T PoE+ copper Ethernet section, ideal for delivering power and data to IP phones, cameras, wireless APs, and other PoE devices.
• MACsec hardware-based encryption to protect data-in-transit between the switch and endpoints, enhancing security for business-critical traffic.
• 1-port 40GbE QSFP+ v3 zl2 uplink, providing a high-speed backbone to core switches or aggregators and enabling scalable aggregation and virtualization workloads.
• Designed specifically for the HP 5400R zl2 Switch Series, ensuring seamless compatibility, reliable operation, and straightforward deployment within existing zl2 environments.
• IEEE 802.3af/at PoE+ support with flexible power delivery for a wide range of PoE devices, along with easy management through HP’s feature-rich switch firmware and tooling.

Technical Details of HPE 20-Port 10/100/1000BASE-T PoE+ MACsec / 1-Port 40GbE QSFP+ v3 zl2 Module

• Module type: zl2 expansion module for the HP 5400R zl2 Switch Series
• Ports: 20 × 10/100/1000BASE-T PoE+ ports (PoE+ capable per IEEE 802.3af/at)
• Uplink: 1 × 40GbE QSFP+ uplink port (v3 zl2 module)
• Security: MACsec hardware-based encryption for data protection on supported configurations
• Performance: 1000Mbps per PoE+ port (gigabit Ethernet) with high-capacity uplink for backhaul and virtualization traffic
• Compatibility: Specifically engineered for the HP 5400R zl2 Switch Series, with plug-in compatibility and streamlined management
• Power: PoE+ capable ports (IEEE 802.3af/at) to power compatible devices directly from the switch
• Form factor: 2-in-1 expansion module (PoE+ port cluster plus 40GbE QSFP+ uplink) designed for zl2 chassis expansions
• Management: Integrates with HP’s standard switch management interfaces, firmware, and monitoring tools for visibility and control

How to Install HPE 20-Port 10/100/1000BASE-T PoE+ MACsec / 1-Port 40GbE QSFP+ v3 zl2 Module

• Prepare the chassis: Ensure the HP 5400R zl2 switch is powered down or follow hot-swap guidelines as per your maintenance policy before installing the expansion module.
• Identify the correct expansion slot: Locate an available zl2 expansion slot or empty bay compatible with the 5400R zl2 module type. Confirm that the slot supports a v3 zl2 expansion module.
• Align and insert: Carefully align the module with the slot connector, apply even, gentle pressure, and seat the module until it clicks or locks into place as designed by the chassis.
• Secure and power on: If required, secure any retention mechanism and power up the switch. Allow the system to boot and recognize the new module.
• Verify interconnects and configuration: Use the switch management interface to verify port status for the 20 PoE+ ports and the 40GbE QSFP+ uplink. Enable MACsec if required by your security policy, and configure PoE+ policies for connected devices.
• Test device readiness: Connect PoE devices (IP phones, cameras, APs) to the 20 PoE+ ports and verify power delivery and data connectivity. Validate the uplink performance against core or aggregation points to ensure proper throughput.
• Monitor and manage: Regularly monitor port utilization, PoE power budgets, and MACsec status using your network management tools to maintain performance and security levels.

Frequently Asked Questions

• Q: What series is compatible with this expansion module? A: It is designed for the HP 5400R zl2 Switch Series, providing a seamless expansion option for zl2 deployments.
• Q: How many PoE+ ports does the module provide? A: The module adds 20 × 10/100/1000BASE-T PoE+ ports for powered device connections.
• Q: What uplink does this module include? A: It includes a single 40GbE QSFP+ uplink (v3 zl2) for high-bandwidth core connectivity.
• Q: Does it support MACsec encryption? A: Yes, the module includes hardware MACsec encryption to protect data in transit between the switch and PoE devices.
• Q: Do I need any additional licenses to use PoE+ or MACsec on this module? A: Power delivery (PoE+) and MACsec features are supported as part of the switch’s standard capabilities on compatible firmware; no separate license is typically required, but ensure your switch firmware supports MACsec and PoE+ on zl2 modules.
• Q: Is this module hot-swappable? A: HP zl2 expansion modules are designed to be inserted into compatible slots with appropriate safety procedures; refer to your hardware maintenance guidelines for hot-swapping.
