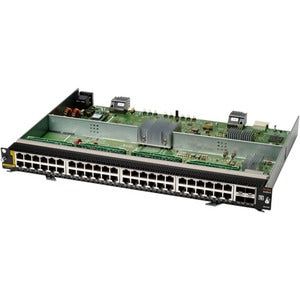

HPE 48-Port 1GbE Class 6 PoE and 4-Port SFP56 v2 Module

Elevate your data networking with the HPE 48-Port 1GbE Class 6 PoE and 4-Port SFP56 v2 Module. This high-density expansion solution is designed for demanding environments where reliable Ethernet connectivity, seamless power delivery to PoE devices, and flexible uplink options are essential. Whether you’re building a campus network, a surveillance-heavy infrastructure, or a modern office backbone, this module delivers the performance, scalability, and manageability you need. With 48 fast Ethernet ports, PoE capability, and four SFP56 uplinks, it creates a powerful foundation for converged networks that support IP cameras, phones, wireless access points, and other PoE-enabled devices while maintaining ample headroom for future growth and bandwidth-intensive applications.

• Dense PoE-enabled Ethernet access: 48 RJ-45 1000Base-T ports deliver reliable, power-over-Ethernet capable connectivity for a wide range of devices, reducing cabling complexity and enabling centralized power management across the network edge.
• High-performance SFP56 uplinks: Four 56 Gbps-capable SFP56 ports provide ultra-fast fiber uplinks, delivering the bandwidth required for backbone connectivity, data center interconnects, and high-traffic aggregation points.
• Flexible expansion with multiple slots: The module offers 4.0 x expansion slots, enabling additional modules and options to tailor uplink, aggregation, and specialty connections to your environment.
• Rack-mountable and enterprise-ready: Designed for integration into enterprise chassis and rack installations, this module fits neatly into standard data center racks and maintains clean, organized deployment.
• Integrated management and reliability: Built to work within HP’s networking ecosystem, this module supports centralized management, monitoring, and policy enforcement to streamline operations and improve uptime.

Technical Details of HPE 48-Port 1GbE Class 6 PoE and 4-Port SFP56 v2 Module

• Ports and interfaces: 48 x RJ-45 1000Base-T Ethernet ports for standard LAN access; 4 x SFP56 v2 ports for high-speed fiber uplinks.
• PoE capability: Class 6 PoE support enables power delivery to eligible devices across the 48 Ethernet ports, simplifying device placement and reducing separate power runs.
• Expansion capacity: 4.0 x expansion slots to accommodate additional modules and future network upgrades.
• Form factor: Rack-mountable expansion module designed for seamless integration into compatible HP chassis and data center racks.
• Performance and reliability: Engineered for consistent throughput, low latency, and stable operation in data networking and optical networking environments.

How to install HPE 48-Port 1GbE Class 6 PoE and 4-Port SFP56 v2 Module

Installing this expansion module is straightforward for IT teams familiar with HP network ecosystems. Follow these guidelines to ensure a smooth deployment and optimal performance.

• Prepare the chassis: Verify that the host chassis or switch platform supports expansion modules of this type and that power and cooling requirements meet your environment’s needs.
• Power considerations: If your system supports hot-swapping, you may insert the module with the system powered on. If required by your chassis, power down before installation to minimize risk.
• Insert the module: Align the expansion module with the designated expansion bay or slot in the chassis. Slide it in until it seats securely, then fasten any mounting screws as specified by the chassis documentation.
• Connect the ports: Attach your network cables to the 48 RJ-45 ports for standard Ethernet and connect fiber cables to the four SFP56 uplink ports. Label cables for easy management and future troubleshooting.
• Initial configuration: Power up (if applicable) and access the HP management interface to verify link status, port activity, and PoE readiness. Configure VLANs, port profiles, QoS policies, and PoE budgets according to your network design.

Frequently asked questions

• What is the purpose of this module? It is a high-density expansion module that adds 48 PoE-enabled Ethernet ports for end devices and four high-speed SFP56 uplink ports to connect to core or distribution layers of the network, enabling scalable and flexible enterprise deployments.
• Does it support PoE on all ports? PoE capability depends on the port negotiation with connected devices and the overall PoE budget of the chassis. The module is designed to deliver PoE where supported by devices and within the system’s power allocation rules.
• What kind of data rates can I expect? Each RJ-45 port operates at 1 Gbps, while the four SFP56 uplinks provide multi-gigabit fiber connectivity suitable for high-speed backhaul and aggregation, supporting robust performance for demanding workloads.
• Is this module compatible with non-HP switches or chassis? The module is designed to work within HP networking ecosystems and compatible HP chassis. Compatibility with non-HP hardware varies and should be verified against the official compatibility matrix for your specific chassis model.
• How do I monitor and manage this module? Use HP’s management tools and monitoring protocols (SNMP, CLI, or web interface as supported by your chassis) to monitor port status, PoE usage, temperature, and error counters, and to apply policies for QoS, VLANs, and security.
