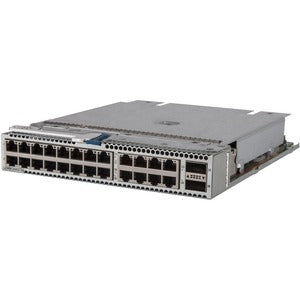

HPE 5930 24-Port 10GBASE-T & 2-Port QSFP+ MACsec Module

Enhance your enterprise network with the HPE 5930 expansion module that combines dense copper access with high-speed QSFP+ uplinks, all protected by built-in MACsec encryption. This 24-port 10GBASE-T and 2-port QSFP+ module is purpose-built for HP FlexFabric 5930 switches, delivering scalable, secure, and cost-efficient performance for data centers, campuses, and growing LAN environments. With 24x 10GBASE-T copper ports, you can leverage existing copper cabling for fast edge and aggregation deployments, while the two QSFP+ ports provide flexible uplink options for core connectivity and high-throughput inter-switch links. MACsec integration ensures data integrity and confidentiality across all active ports, giving enterprises a robust security posture without sacrificing performance. The module is designed for seamless integration, enabling rapid rollouts, simplified management, and a future-ready platform that adapts to your evolving networking needs.

• Dense port mix for versatile deployments: 24 x 10GBASE-T copper ports paired with 2 x QSFP+ uplink ports, enabling high-port-density access at 10 Gbps while preserving the option for 40 Gbps where QSFP+ is deployed.
• Hardware-based MACsec for secure data transmission: The module includes MACsec encryption on all ports, delivering enterprise-grade protection against eavesdropping and tampering with minimal impact on latency or throughput.
• Designed for HP FlexFabric 5930 switches: This expansion module is purpose-built to extend the capabilities of HP FlexFabric 5930 family, providing a scalable path to higher performance without abandoning your existing investments.
• Flexible, future-ready uplinks: Use the 24 10GBASE-T ports for edge and aggregation while connecting to core networks or aggregation switches via the 2 QSFP+ ports, supporting scalable topologies from leaf-spine to large campus networks.
• Easy deployment and maintenance: The module is designed for straightforward installation in compatible 5930 chassis, with hot-swappable capabilities in supported environments to minimize downtime and maximize network availability.

Technical Details of HPE 5930 24-Port 10GBase-T and 2-Port QSFP+ with MACsec Module

• Product type: Expansion Module for HP FlexFabric 5930 switches
• Ports: 24 x 10GBASE-T RJ-45 ports; 2 x QSFP+ ports
• Security: Hardware MACsec encryption across all active ports
• Compatibility: Specifically designed for HP FlexFabric 5930 family switches and compatible management interfaces
• Performance: 10 Gbps per 10GBASE-T port; QSFP+ uplinks provide high-capacity connectivity for core and aggregation layers
• Form factor and reliability: Expansion module designed for hot-swappable installation within supported chassis and environments

How to install HPE 5930 24-Port 10GBase-T and 2-Port QSFP+ MACsec Module

• Plan maintenance and prepare the switch: Schedule a maintenance window if the network requires downtime. Verify you have a compatible HP FlexFabric 5930 switch and a suitable expansion slot available for the module.
• Power down or isolate the chassis: If your environment requires downtime for installation, power down the switch or place it in a maintenance state to ensure a safe insertion process. Follow your organization’s electrical and safety protocols.
• Remove slot cover and align the module: Open the appropriate slot cover on the switch, align the module’s connectors with the backplane, and gently insert the module until it seats firmly.
• Secure and verify physical connection: If the chassis uses screws or retention clips, secure the module in place. Power on the switch (if powered down) and confirm the module is detected by the management interface; check port activity indicators for normal operation.
• Configure network policies: Use your standard switch management tooling to configure port profiles, VLANs, and QoS. Enable MACsec on the module’s ports, apply any required security keys or policies, and set up uplink aggregation or link bonding as needed. Save the configuration and monitor performance to ensure the module operates as expected.

Frequently asked questions

• Q: What devices is this module compatible with? A: It is designed specifically for the HP FlexFabric 5930 switch family and should be installed in compatible expansion slots within those switches. Check your chassis and firmware compatibility before purchase.
• Q: How many ports and what speeds are available? A: The module provides 24 x 10GBASE-T copper ports (RJ-45) for 10 Gbps access, plus 2 x QSFP+ uplink ports for higher-capacity connections to core or aggregation layers.
• Q: Is MACsec encryption enabled on all ports? A: Yes. The MACsec feature is hardware-based and applied across all active ports on the module, delivering secure data transmission with minimal performance impact.
• Q: Do I need a separate license for MACsec? A: MACsec is included with the module and supported through standard switch management interfaces on compatible HP FlexFabric 5930 switches; no additional licensing is typically required.
• Q: Can I mix this module with other expansion modules? A: It can be used in appropriate HP FlexFabric 5930 configurations, typically alongside other compatible expansion options, provided firmware and hardware compatibility are verified.
• Q: Will installation cause downtime? A: Installation usually requires at least a brief maintenance window to insert the module and verify configuration, but it can be performed with careful planning and in many cases with minimal disruption.
