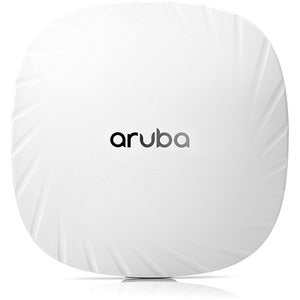

HPE AP-505 Dual Band 802.11ax Indoor Wi‑Fi 6 Access Point

The HPE AP-505 is a high-performance Wi‑Fi 6 indoor access point crafted for organizations experiencing growing demands from mobile devices, IoT sensors, and on‑the‑move employees. With a real‑world aggregate data rate of up to 1.49 Gbps (HE80/HE20), this AP delivers the speed and reliability needed for crowded venues, busy offices, classrooms, hospitals, retail spaces, and other dense environments. It’s designed to simplify deployment while delivering robust security, scalable management, and energy efficiency that helps you support more clients without compromising performance. Built to leverage the latest 802.11ax (Wi‑Fi 6) technologies, the AP-505 enables better spectrum efficiency, lower latency, and smarter power usage, making it a future‑proof addition to enterprise networks that expect growth in device density and multimedia workloads.

• The AP‑505 brings Wi‑Fi 6 performance to dense environments with 802.11ax features such as OFDMA and MU‑MIMO, allowing multiple clients to share the wireless medium more efficiently. This translates into higher average speeds for smartphones, laptops, tablets, and a growing array of IoT devices, with improved responsiveness for video calls, cloud apps, and real‑time collaboration. The real‑world aggregate data rate reaches up to 1.49 Gbps (HE80/HE20), so organizations can support high‑bandwidth applications without bottlenecks even as client counts rise.
• Cloud‑driven management makes deployment and ongoing operations simpler and faster. The AP‑505 is designed for seamless adoption and lifecycle management through HPE Aruba Central (cloud management) or an on‑premises Mobility Master, enabling zero‑touch provisioning, centralized policy control, and accessible monitoring from a single pane of glass. Network admins can push configurations, firmware updates, and security policies across hundreds of APs, ensuring consistent performance and security across campuses, clinics, or retail networks.
• Advanced security and access control protect both users and devices at the edge. With WPA3‑Enterprise, 802.1X authentication, and robust policy enforcement, the AP‑505 helps safeguard enterprise networks from evolving threats. Guest access and isolation features support BYOD or contractor devices while maintaining segmentation and corporate data protection. Integrated security features also contribute to safer IoT deployments, where devices can connect with strong, standardized encryption and centralized management.
• Designed for flexible indoor deployment, the AP‑505 features a compact, ceiling‑mountable form factor that blends into modern workspaces and venues. Its design supports clean aesthetics in classrooms, offices, retail storefronts, and hospitality environments. The dual‑band operation (2.4 GHz and 5 GHz) enables adaptive use of RF resources, while smart radio management helps optimize coverage, minimize interference, and maximize client roaming reliability across large spaces.
• Scalability and compatibility across mixed networks ensure you can grow your wireless footprint without overhauling your existing infrastructure. The AP‑505 works with standard enterprise networking frameworks and integrates with your centralized monitoring and security policies. Whether deploying a few units in a satellite office or hundreds across a campus, you gain consistent performance, predictable roaming, and easy management as guest networks, VLANs, and role‑based access policies evolve with your organization’s needs.

Technical Details of HPE AP-505

• Product type: Indoor Wireless Access Point
• Wireless standard: 802.11ax (Wi‑Fi 6)
• Frequency bands: Dual‑band (2.4 GHz and 5 GHz)
• Maximum real‑world aggregate data rate: 1.49 Gbps (HE80/HE20)
• Antenna technology: 2x2 MU‑MIMO (transmit/receive)
• Security: WPA3‑Enterprise; 802.1X authentication; enterprise‑grade encryption
• Management: Cloud‑managed via Aruba Central and compatible with on‑prem Mobility Master
• Power: PoE+ (IEEE 802.3at) power input; optional local power available with appropriate accessories
• Mounting: Indoor ceiling/ceiling‑grid mounting; compact, disruption‑free design
• Deployment features: Auto‑config, zero‑touch provisioning, and centralized monitoring for scalable growth

How to install HPE AP-505

Installing the AP‑505 is straightforward for network professionals and IT teams familiar with enterprise WLAN deployments. To ensure optimal coverage and performance, start with a site survey to identify high‑density zones, potential RF interference sources, and ideal mounting points. Plan your channel and power strategy to maximize airtime efficiency and minimize overlap with nearby devices.

• Mount the AP‑505 on the ceiling or in a suitable indoor location using the included mounting hardware. Choose a position that balances coverage for both 2.4 GHz and 5 GHz bands and minimizes obstruction from walls, furniture, or metal fixtures.
• Connect the device to a PoE+ capable switch or injector. The AP‑505 is designed to receive power via IEEE 802.3at PoE+, which simplifies wiring and reduces the number of cables required for deployment.
• Adopt the AP‑505 into your centralized management system, such as Aruba Central, or deploy it under an on‑premises Mobility Master. Use zero‑touch provisioning when possible so the AP automatically downloads the correct configuration and security policies upon first connection.
• Configure wireless networks (SSIDs), security settings (WPA3‑Enterprise, 802.1X), VLAN assignments, and guest access policies. Leverage features like band steering, OFDMA, MU‑MIMO, and TWT where appropriate to balance performance with battery efficiency for mobile devices and IoT sensors.
• Test coverage and roaming performance, then monitor the network through Aruba Central or Mobility Master. Fine‑tune RF settings, update firmware as needed, and implement ongoing security and access policies to protect data and devices across the campus or venue.

Frequently asked questions

• Q: What is the maximum data rate of the HPE AP‑505?

  A: The AP‑505 delivers a maximum real‑world aggregate data rate of up to 1.49 Gbps (HE80/HE20).

• Q: Does this access point support Wi‑Fi 6 features like OFDMA and MU‑MIMO?

  A: Yes. The AP‑505 implements Wi‑Fi 6 capabilities, including OFDMA and MU‑MIMO, to improve efficiency and performance in dense environments.

• Q: Is the AP‑505 suitable for indoor deployments only?

  A: Yes, it is designed for indoor use and ceiling‑mounted installations in offices, campuses, healthcare facilities, retail spaces, and similar environments.

• Q: How is the AP‑505 managed?

  A: It is cloud‑managed via Aruba Central, with compatibility for on‑prem Mobility Master for larger, controller‑based deployments.

• Q: What power options does it support?

  A: The AP‑505 supports Power over Ethernet (PoE+) per IEEE 802.3at, enabling flexible wiring from PoE+ switches or injectors.

• Q: Can the AP‑505 handle high device density?

  A: Yes. Built for high‑density environments, it leverages Wi‑Fi 6 features to deliver better capacity, lower latency, and improved user experiences as client counts rise.
