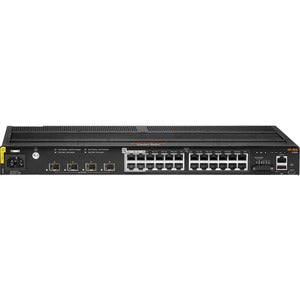

HPE CX 4100i Ethernet Switch

The HPE CX 4100i Ethernet Switch is a cutting-edge networking solution engineered to provide exceptional performance, reliability, and security for enterprise networks operating in demanding environments. Designed to connect IoT devices, access points, and user devices seamlessly, this ruggedized switch series ensures high levels of connectivity and stability. With its advanced features and integration capabilities, the HPE CX 4100i revolutionizes the way organizations leverage their network infrastructure, making it the perfect choice for enterprises that extend beyond typical carpeted areas.

• Ruggedized Design: Built to meet IP30 standards, the HPE CX 4100i Ethernet Switch operates efficiently in extreme conditions with a remarkable temperature range of -40°C to +70°C, making it ideal for outdoor and industrial applications.
• High Performance PoE Support: This switch supports both 30W and 60W Power over Ethernet (PoE) capabilities, featuring a generous power budget of up to 360W, which allows for the seamless operation of multiple IoT devices and access points.
• Versatile Connectivity Options: Equipped with high-speed 1/10GbE uplinks, the HPE CX 4100i ensures fast and reliable connections for demanding applications, enabling efficiency and performance across your entire network.
• Advanced Security Features: Utilizing Aruba Dynamic Segmentation, this switch enforces consistent security policies across both wired and wireless networks, simplifying IT management while ensuring traffic remains secure and separate.
• Easier Management and No Licensing Fees: The HPE CX 4100i offers flexible management options, including Aruba Central, a user-friendly web GUI, CLI, and REST APIs, all without requiring any switch software licensing, effectively reducing operational costs.

Technical Details of HPE CX 4100i Ethernet Switch

• Model: HPE CX 4100i Ethernet Switch Series
• Operating Temperature: -40°C to +70°C
• Power over Ethernet (PoE): Supports 30W and 60W PoE with a total power budget of 360W
• Uplinks: Built-in high-speed 1/10GbE uplinks
• Form Factor: Available in both 12 port DIN rail mount and 24 port 1U rack mount models
• Compliance Standards: IEC 61850-3 and IEEE 1613 for sub-station applications
• Management Options: Aruba Central, web GUI, CLI, and NetEdit
• Software Licensing: No licensing required for switch operations

How to Install the HPE CX 4100i Ethernet Switch

Installing the HPE CX 4100i Ethernet Switch is a straightforward process. Follow these steps for a successful installation:

1. Choose an appropriate installation location that meets the operational temperature requirements.
2. If using the DIN rail mount model, securely attach the switch to the DIN rail. For the 1U rack mount model, install it in a standard 19-inch rack using the provided mounting brackets.
3. Connect the power supply to the switch and ensure it conforms to the power requirements.
4. For network connections, use high-quality Ethernet cables to connect the devices to the switch ports. Ensure that the cables support the required speed and PoE capabilities.
5. Access the switch management interface via the web GUI or CLI to configure network settings, security policies, and other parameters according to your organization’s needs.
6. Test the network connection and ensure that all devices are recognized and functioning correctly.

Frequently Asked Questions

• What environments is the HPE CX 4100i Ethernet Switch suitable for? The switch is designed for harsh environments, including outdoor and industrial locations, with an operational temperature range of -40°C to +70°C.
• Does the HPE CX 4100i support PoE? Yes, it supports both 30W and 60W PoE, making it ideal for powering IoT devices and access points.
• Are there any software licensing costs associated with the switch? No, the HPE CX 4100i does not require any software licensing fees, simplifying ownership and reducing operational costs.
• Can the switch be managed remotely? Yes, it can be managed via Aruba Central, web GUI, CLI, or REST APIs, providing flexibility in management options.
• What compliance standards does this switch meet? The HPE CX 4100i meets IEC 61850-3 and IEEE 1613 standards, ensuring it is suitable for sub-station applications.
