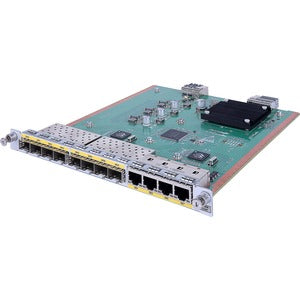

HPE Expansion Module

The HPE Expansion Module is a high-density HMIM (High-speed Mezzanine Interface Module) designed to enhance the reach and versatility of HP MSR routers. This compact, modular expansion card combines fiber and copper interfaces in a single device to deliver flexible connectivity options for growing networks. With 8-port 100BASE-FX/1000BASE-X fiber and 4-port 1000BASE-T copper (Combo), it enables organizations to bridge multiple media types, expand port availability, and consolidate edge and core connectivity without sacrificing performance or manageability. Built to support L2/L3 HMIM capabilities, this module empowers you to implement efficient segmenting, routing, and switching strategies right at the edge, while maintaining central visibility and control through your existing HP management tools. Whether you’re hardening a branch office, expanding a campus network, or integrating multiple sites, the HPE Expansion Module provides a scalable, reliable path to meet current demands and future growth. In short, it’s the single solution for flexible application deployment, media diversity, and modular expansion within HP MSR environments.

• Hybrid port configuration for flexible networks: This expansion module delivers 8 ports of 100BASE-FX/1000BASE-X fiber alongside 4 ports of 1000BASE-T copper (Combo), enabling you to mix fiber and copper media in one compact HMIM card and tailor your network to evolving requirements without swapping out existing equipment.
• Optimized for HP MSR routers: Specifically designed to pair with HP MSR series routers, ensuring seamless integration, dependable operation, and straightforward scale-out as your organization grows. This module slots into the HP MSR chassis to extend your edge, distribution, or core capabilities with minimal disruption.
• Layer 2 and Layer 3 HMIM capabilities: Built to support L2/L3 HMIM features, allowing advanced navigation of traffic through VLANs, routing, QoS, and policy-driven management. This empowers precise traffic control, efficient interconnects, and smarter use of your available bandwidth across multiple media types.
• High-density media support for growth: By combining fiber and copper interfaces in one module, you gain significant port density without adding separate line cards. This consolidation reduces space, simplifies inventory, and provides a scalable path to handle higher workloads and expanding branch networks.
• Easy deployment and centralized management: Designed for straightforward installation within HP MSR platforms and managed through familiar HP network management tools. The module enables consistent configuration, monitoring, and firmware updates, helping you maintain reliability while reducing operational overhead.

Technical Details of HPE Expansion Module

• Module type: HMIM (High-speed Mezzanine Interface Module) designed for HP MSR routers.
• Ports: 8 x 100BASE-FX / 1000BASE-X fiber ports; 4 x 1000BASE-T copper ports (Combo).
• Interface mix: Hybrid media support with fiber-based and copper-based interfaces in a single module.
• Networking capability: L2/L3 HMIM features enabling flexible switching and routing options at the edge of the network.
• Compatibility: Specifically intended for use with HP MSR series routers to extend port density and media coverage.

How to install HPE Expansion Module

Installing the HPE Expansion Module is a straightforward process designed to minimize downtime and maximize compatibility with your HP MSR router. Follow these general steps to deploy the module securely and quickly:

• Power down the HP MSR router according to vendor guidelines to ensure safe handling of the expansion slot.
• Identify the appropriate HMIM slot in the router chassis and align the expansion module with the connector pins, ensuring a clean, straight insertion.
• Gently slide the HMIM module into the slot until it seats firmly. You may hear a light click indicating it is properly seated.
• Secure the module if the chassis design requires a latch or locking mechanism, then reconnect power and allow the router to boot with the new expansion module detected.
• Connect your fiber cables to the 8 x 100BASE-FX/1000BASE-X ports and copper cables to the 4 x 1000BASE-T ports as needed for your network design. Use appropriate SFPs or copper transceivers per port type and cable specifications.
• Access the router’s management interface to verify link status, assign VLANs, configure L2/L3 features, and apply any necessary routing policies. Update firmware if recommended by HP for optimal compatibility and security.
• Perform post-install validation by testing connectivity across fiber and copper paths, verifying throughput, and confirming that the new ports appear in the management console with the expected performance metrics.

Frequently asked questions

• What is the HPE Expansion Module? It is an HMIM (High-speed Mezzanine Interface Module) designed to expand port density and media options on HP MSR routers, combining 8 fiber ports (100BASE-FX/1000BASE-X) with 4 copper ports (1000BASE-T) in a single module for flexible network deployment.
• Which devices is it compatible with? The module is built for HP MSR routers, delivering a seamless fit and integration within HP’s campus and branch networking solutions.
• What kinds of interfaces does it provide? The module offers 8 ports of fiber (100BASE-FX/1000BASE-X) and 4 ports of copper (1000BASE-T) in a combo configuration, enabling mixed-media networks on a single HMIM card.
• What networking features does it support? It supports Layer 2 and Layer 3 HMIM capabilities, enabling VLANs, routing decisions, QoS, and policy-driven traffic management at the edge of the network.
• How do I install and configure it? Install the HMIM module into the designated slot on an HP MSR router, connect the appropriate media to each port, boot the device, and use the router’s management interface to configure the ports, VLANs, and routing policies. Refer to HP’s installation guide for model-specific steps and firmware guidance.
• Do I need special cables or transceivers? Yes. Use compatible fiber transceivers for 100BASE-FX/1000BASE-X ports and standard RJ-45 copper cables for the 1000BASE-T ports, following HP and supplier specifications for cable type, length, and attenuation.
