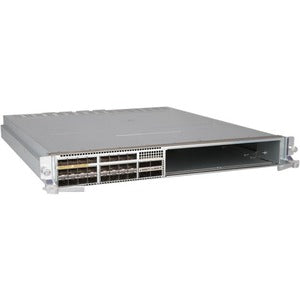

HPE FlexFabric 12900E 24-Port 10GbE and 4-Port 100GbE HD 59xx Slot Module

The HPE FlexFabric 12900E 24-port 10GbE and 4-port 100GbE HD 59xx Slot Module is a high-density expansion module designed for data centers that demand flexible, scalable networking. Engineered to plug into HPE 59xx high-density chassis, this module combines 24 ports of 10 Gigabit Ethernet with 4 ports of 100 Gigabit Ethernet, delivering a versatile mix of access and uplink bandwidth. It is purpose-built to streamline server-to-network connections, optimize inter-switch links, and support hybrid environments that require both traditional 10G access and high-speed 100G uplinks. In busy data networking and optical network environments, this expansion module helps you consolidate connectivity, simplify cabling, and accelerate workloads without overhauling your existing architecture. With HPE’s reliability and a design that emphasizes compatibility and ease of use, this slot module is a practical choice for enterprise data centers, campus cores, and cloud-scale deployments seeking efficient, future-ready networking.

• High-density connectivity: 24 x 10GbE ports plus 4 x 100GbE ports provide a flexible mix of server access and uplink capacity. This configuration supports extensive server-to-switch connectivity, storage networking, and rapid inter-switch communication, enabling you to scale your data center footprint without sacrificing manageability or performance. The 10G ports are ideal for a wide range of servers and storage interfaces, while the 100G uplinks deliver strong aggregation for spine or core layers, helping you consolidate top-of-rack and aggregation traffic with fewer devices.
• Optimized for data networking and optical networks: This module is designed to handle both traditional data networking needs and high-capacity optical workflows. With 10GBASE-SFP+ compatibility for flexible fiber deployments and 100G interfaces for dense interconnects, you can support mixed traffic patterns, virtualized workloads, and data-intensive applications. The module supports standard optics suitable for short- and long-reach needs, enabling migrations from 1G/10G environments to 100G where required while preserving existing fiber investments and upgrading pathways.
• Performance and efficiency: Built to minimize latency and maximize throughput within the HPE FlexFabric ecosystem, the module emphasizes efficient traffic management, QoS capabilities, and virtualization-friendly features. By combining 10G and 100G ports in a single module, IT teams can reduce port fragmentation, simplify cable plant, and streamline policy enforcement across workloads. This contributes to predictable performance, improved service levels, and reduced operational complexity in virtualized and AI-enabled data centers.
• Management, interoperability, and reliability: The module integrates with HPE’s management stack, offering standard interfaces such as CLI and SNMP. It is designed for interoperability with the HPE FlexFabric 12900E switch family and other compatible 59xx-slot devices, ensuring consistent behavior across firmware and hardware revisions. The plug-in design supports hot-swapping in supported systems, enabling maintenance and upgrades with minimal downtime, while robust connectors and signaling deliver dependable performance in demanding environments.
• Easy installation and upgrade path: This expansion module is designed for straightforward installation into compatible HPE chassis. It supports a plug-in, hot-swappable form factor, allowing you to minimize downtime during maintenance windows. Installation steps are simple: verify compatibility, power down if required by your maintenance policy, remove the slot cover or blank, align the module with the 59xx slot, insert firmly until it latches, and connect fiber cables to the specified ports. After installation, management software should detect the module automatically, display port status, and guide any necessary configuration changes. Firmware updates follow the standard HPE process, ensuring you can access the latest improvements and security enhancements without disrupting operations.

Technical Details of HPE FlexFabric 12900E 24-Port 10GbE and 4-Port 100GbE HD 59xx Slot Module

• Module type: Expansion/slot module designed for HPE 59xx high-density chassis in the FlexFabric 12900E family
• Ports: 24 x 10GbE (SFP+) ports and 4 x 100GbE (likely QSFP) ports
• Interface standards: 10GBASE-SFP+ for 10GbE ports; 100GBASE-X for 100GbE ports (optical transceiver compatibility varies by deployment)
• Form factor: Plug-in HD (high-density) slot module compatible with supported 59xx slots
• Management: Integrates with standard HPE management interfaces (CLI, SNMP) and supports typical enterprise automation workflows
• Compatibility: Specifically designed for the HPE FlexFabric 12900E switch family and related 59xx slot devices
• Power and cooling: Draws power from the host switch; no separate power supply required; relies on chassis cooling and standard datacenter environmental controls

How to Install HPE FlexFabric 12900E 24-Port 10GbE and 4-Port 100GbE HD 59xx Slot Module

• Prepare the system: Confirm compatibility with your HPE 59xx chassis and ensure you have the correct fiber optics and transceivers for 10G and 100G links. Verify that the switch firmware is compatible with this slot module and that you have a maintenance window if required by your change control policies.
• Power and safety: If your environment requires maintenance windows, power down the switch or follow hot-swappable guidelines as defined by your equipment’s service policy. Ground yourself to prevent electrostatic discharge before handling hardware.
• Access the chassis: Remove the appropriate slot cover or blanking plate from the chassis to reveal the slot where the module will be installed. Confirm the slot is clean and free of debris.
• Install the module: Align the module’s edge connector with the slot and slide it in firmly until the module sits flush and the locking mechanism engages. You should feel a click or hear an audible confirmation depending on the chassis design. Do not force the module; ensure proper alignment before seating fully.
• Cabling and port activation: Connect 24 x 10GbE fiber cables to the SFP+ ports and connect 4 x 100GbE fibers or copper media as appropriate to the 100G ports. Route cables neatly to prevent strain on connectors and ensure proper labeling for future maintenance. Power up the switch if you powered it down and wait for the system to initialize the new module.
• Verification and monitoring: Use the switch management interface to verify port status, link lights, and error counters. Confirm that all 10G and 100G ports appear as active in the device’s inventory, and check for any alarms or faults. Apply or adjust QoS, VLANs, and policy configurations as needed to align with your network design. If firmware updates are available, follow the standard update procedure to ensure compatibility and performance improvements.
• Operational readiness: Validate end-to-end connectivity by testing with representative traffic, confirm stability under expected load, and monitor port utilization over time. Maintain documentation of the module installation, including slot number, cabling scheme, and firmware versions for future reference and audits.

Frequently Asked Questions

• What does the HPE FlexFabric 12900E 24-port 10GbE and 4-port 100GbE HD 59xx Slot Module do?

  This module serves as a high-density expansion for HPE 59xx chassis, providing 24 x 10GbE access ports and 4 x 100GbE uplink ports. It enables flexible traffic patterns, simplifies cabling, and supports scalable data center designs by combining both modest 10G access with high-speed 100G interconnects in a single expansion module.

• Which devices is this module compatible with?

  The module is designed for the HPE FlexFabric 12900E family and related 59xx-slot devices. Always verify firmware compatibility and slot availability with your specific chassis model and current network topology before purchase or installation.

• What kind of optics do the ports require?

  10GbE ports typically use SFP+ transceivers, while 100GbE ports use high-density optics such as QSFP28 modules (as supported by the chassis and module). Check your fiber plant and transceiver inventory to select the correct optics for your deployment distance and budget.

• Can the module be hot-swapped?

  Yes. The expansion module is designed for plug-in installation in supported systems, with hot-swappable capability to minimize downtime during maintenance or upgrades, subject to your facility’s change-control policies and the chassis’ hot-swap guidelines.

• How do I manage and monitor this module?

  You can manage the module through standard HPE management interfaces, including the CLI and SNMP. The module is designed to integrate with the HPE FlexFabric management ecosystem, allowing you to monitor port status, traffic levels, and error counters, as well as apply QoS and virtualization policies as part of your overall network policy.

• Is firmware updating supported for ongoing improvements?

  Yes. Firmware updates follow the standard HPE update process, ensuring you can access bug fixes, performance enhancements, and new features. Always ensure compatibility with your other connected hardware and your change-management plan before applying updates.
