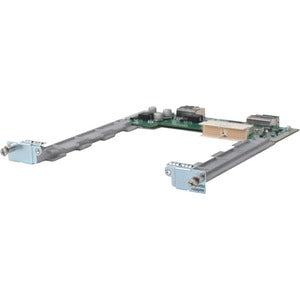

HPE MSR 24-Port Gig-T Switch HMIM Module
The HPE MSR 24-Port Gig-T Switch HMIM Module is a high-performance service processing unit designed to extend the capabilities of the HP MSR4000 Router. Built for enterprises that demand reliable routing, secure data handling, and flexible port configurations, this HMIM module blends speed, security, and scalability into a single, compact upgrade. It is purpose-built to forward data efficiently, perform encryption and decryption, and analyze and filter packets in real time, helping networks stay fast, secure, and responsive under heavy load. With a thoughtful mix of copper and fiber interfaces, plus dedicated slots for virtual port modules, the HMIM module delivers the connectivity and processing power you need to support core applications, VPNs, and multilayer services across distributed environments. Whether you are expanding edge connectivity, consolidating branch deployments, or reinforcing data-center ingress/egress points, this module provides the architectural flexibility to align network performance with evolving business demands.
- Interface flexibility for dense, scalable networks: The module combines four 1000BASE-T copper ports with four SFP fiber ports, plus a dedicated SFP+ uplink for high-speed data paths. This mix enables seamless aggregation, uplink diversification, and resilient VLAN trunking across multiple subnets. The two VPM slots further extend capacity by enabling additional virtualized port modules, so you can tailor the module to your exact topology without sacrificing performance or manageability.
- Powerful processing with ample memory: Equipped with 4GB DDR3 default memory, the HMIM Module delivers robust processing headroom for data forwarding, encryption/decryption operations, and real-time packet analysis. This memory footprint supports policy enforcement, traffic shaping, and deep packet inspection without introducing noticeable latency, ensuring smooth operation for bandwidth-intensive applications, secure remote access, and complex routing scenarios.
- Security-centered design for trusted networks: As a service processing unit, it performs encryption and decryption and provides packet analysis and filtering to enforce security policies at the edge and in transit. This capability helps protect sensitive data, supports VPN termination and termination points, and enables firewall and access-control features that are essential for compliant, policy-driven network environments.
- Reliability and modular growth for growing networks: The HMIM Module is designed to fit into the HP MSR4000 Router’s modular ecosystem, delivering dependable operation with a scalable upgrade path. Its architecture supports non-disruptive expansion, allowing organizations to increase port density and feature depth as requirements evolve, while maintaining connection reliability and service continuity across critical network paths.
- Easy integration with HP management tooling and infrastructure: Managed through established HP management interfaces, the HMIM Module works in concert with the MSR4000’s control plane for centralized provisioning, monitoring, and policy management. This integration simplifies day-to-day administration, accelerates deployment of new services, and improves visibility into traffic patterns, security events, and device health across dispersed locations.
Technical Details of HPE MSR 24-Port Gig-T Switch HMIM Module
- 4 x 1000BASE-T copper ports
- 4 x SFP fiber ports
- 1 x SFP+ high-speed port
- 2 x VPM (Virtual Port Module) slots
- 4GB DDR3 default memory
- Service processing unit for the HP MSR4000 Router
- Performs data forwarding, encryption/decryption, and real-time packet analysis and filtering
- Optimized for maximum efficiency and convenient operation within enterprise networks
- Hybrid interface design supports flexible topology, improved uplink redundancy, and scalable growth
How to install HPE MSR 24-Port Gig-T Switch HMIM Module
Installing the HPE MSR 24-Port Gig-T Switch HMIM Module is a straightforward process designed to minimize downtime while maximizing performance gains. Follow these general steps to add the HMIM module to an HP MSR4000 Router and prepare it for operation:
- Power down or place the MSR4000 into a maintenance mode as recommended by your organization’s change control process to ensure a safe, disruption-free installation.
- Identify a compatible HMIM slot on the MSR4000 backplane. The HMIM interface is designed to accept the module with proper alignment and seating; ensure the module’s connectors align with the chassis backplane contacts before seating.
- Carefully insert the HMIM module into the designated slot until it engages with the backplane connectors. Apply gentle pressure to seat the module fully, then secure the module with any retention hardware provided by the chassis (screws or clips, as applicable).
- Attach network cables to the module’s interfaces: connect copper devices to the 4 x 1000BASE-T ports, connect fiber devices to the 4 x SFP ports, and if needed, use the SFP+ uplink for higher-capacity links. Install any required transceivers or DAC cables per your topology and ensure fiber links are synchronized and authenticated.
- Power on the system or resume normal operation. Access the MSR4000 management interface to verify module recognition, status LEDs, and ROM/firmware compatibility. If a new firmware or feature pack is available, apply it through the HP management tools to ensure optimal performance and compatibility with the HMIM module.
- Configure the HMIM module according to your network design. Establish VLANs, set up routing policies, define QoS and traffic shaping rules, and enable encryption or packet-filtering features as required. Validate connectivity across all ports and verify that security policies are enforcing correctly.
Frequently asked questions
- What is the HPE MSR 24-Port Gig-T Switch HMIM Module? It is a modular service processing unit designed for the HP MSR4000 Router that provides a mix of copper and fiber interfaces, SFP/SFP+ capabilities, and VPM slots to deliver data forwarding, encryption/decryption, and packet analysis and filtering for secure, scalable enterprise networks.
- What interfaces does it offer? The module includes four 1000BASE-T copper ports, four SFP fiber ports, one SFP+ port for high-speed uplinks, and two VPM slots to extend port capacity with virtual modules, enabling flexible topology design and scalable growth.
- How much memory does it have? The HMIM Module ships with 4GB of DDR3 memory, providing ample processing headroom for routing, security functions, and real-time packet inspection without compromising throughput.
- Is it compatible with the HP MSR4000 Router? Yes. It is specifically designed as a service processing module for the HP MSR4000 router family, intended to enhance feature depth, security, and connectivity at the network edge and in aggregation points.
- How do I install and configure this module? Installation involves power-down or maintenance mode, inserting the HMIM module into an available slot, connecting ports as required, powering up, and configuring via the HP management interface to define VLANs, routing policies, encryption, and packet-filtering rules. Always refer to your device-specific deployment guide for model-specific steps and firmware requirements.
