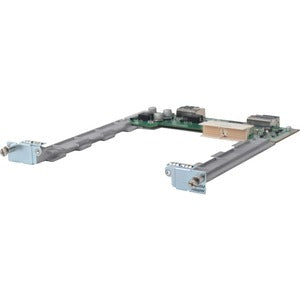

HPE MSR 8-Port 10/100/1000BASE-T / 2-Port 1000BASE-X (Combo) Switch HMIM Module

Designed for enterprise edge applications, the HPE MSR 8-Port 10/100/1000BASE-T / 2-Port 1000BASE-X (Combo) Switch HMIM Module delivers reliable, flexible gigabit connectivity in a compact, modular format. This Switch HMIM Module slots into HPE MSR routers to expand copper and fiber access with ease, enabling seamless integration into existing networks while preserving performance, uptime, and scalability. With eight Gigabit Ethernet ports for 10/100/1000BASE-T and two 1000BASE-X (Combo) uplink ports, you gain robust local access alongside high-speed uplink options, making it ideal for branch offices, remote sites, and SMBs pursuing efficient bandwidth utilization and simplified management.

• Eight 10/100/1000BASE-T copper ports: The module provides eight gigabit Ethernet copper interfaces (RJ-45) that auto-negotiate for optimum speeds and duplex modes. This combination supports smooth integration with existing LAN cabling (CAT5e/CAT6), enabling rapid deployment and flexible port assignments for workstations, printers, VoIP phones, and other network devices.
• Two 1000BASE-X (Combo) uplink ports: The two dedicated 1000BASE-X (SFP) uplinks offer scalable fiber connectivity (and the option to use copper-based alternatives where supported by SFP transceivers). This hybrid uplink design provides resilient, high-capacity pathways to distribution switches, data centers, or core networks, helping to reduce bottlenecks at the edge.
• Combo uplink flexibility: The combination of copper access ports with flexible SFP-based uplinks enables easy adaptation to changing network requirements. You can deploy fiber for longer runs or copper for shorter, cost-effective links, all managed from a single HMIM module that integrates with the MSR ecosystem.
• Designed for dependable performance and reliability: Built to complement HP MSR routers, this HMIM module emphasizes reliability, hot-swappability (in supported chassis), and consistent throughput. It helps ensure uninterrupted service for critical business applications, video conferencing, cloud access, and real-time analytics at the network edge.
• Seamless management and integration: The module works in concert with the HP MSR management capabilities, supporting essential features such as VLAN segmentation, QoS, traffic prioritization, and monitoring. Its design simplifies provisioning and ongoing maintenance while aligning with existing IT policies and security controls.

Technical Details of HPE MSR 8-Port 10/100/1000BASE-T / 2-Port 1000BASE-X (Combo) Switch HMIM Module

• Port configuration: 8 x 10/100/1000BASE-T RJ-45 ports plus 2 x 1000BASE-X (Combo) uplink ports (SFP capable).
• Form factor: HMIM Module designed for HP MSR (Multi-Services Router) systems; hot-swappable in supported chassis to minimize downtime.
• Management and features: Integrates with HP MSR management tools, supporting VLANs, QoS, traffic shaping, link aggregation, and secure access controls appropriate for enterprise edge deployments.
• Performance characteristics: Each copper port delivers up to 1 Gbps; uplinks support 1000 Mbps per port. Overall performance is defined by MSR model and configuration, with standard Gigabit-tier connectivity to handle typical branch workloads and hybrid cloud traffic.
• Compatibility and deployment: Specifically designed for HP MSR devices; ideal for edge locations requiring flexible copper and fiber connectivity alongside straightforward integration with existing network infrastructure.
• Operating considerations: Engineered for reliable operation within standard data-center and office environments; compatible with standard cabling and SFP transceivers suitable for 1000BASE-X deployments.

How to install HPE MSR 8-Port 10/100/1000BASE-T / 2-Port 1000BASE-X (Combo) Switch HMIM Module

Step 1: Verify compatibility and readiness. Ensure your HP MSR system supports HMIM modules and that you have the correct chassis slot available for the HMIM insertion. Review any vendor guidelines for hot-swapping and service windows to minimize disruption.

Step 2: Power down or follow hot-swap guidelines. If your MSR chassis allows hot-swapping, you may install the HMIM Module without powering down the entire system. If not, power down the device according to the manufacturer’s safety procedures before installation.

Step 3: Install the HMIM module. Align the module with the HMIM slot in the MSR chassis and carefully insert until it seats firmly. Confirm a secure connection with the chassis backplane and ensure there are no obstructions or bent pins. Some systems may require a locking mechanism to engage the module.

Step 4: Connect copper and fiber interfaces. Attach your Ethernet cables to the eight RJ-45 ports for immediate access at 10/100/1000 Mbps per port. For uplink connectivity, install appropriate SFP transceivers into the two 1000BASE-X (Combo) uplink ports and connect fiber cables (or copper-compatible media as supported by the SFPs). Use high-quality CAT6/Cat6a cables for copper links to maintain signal integrity over longer runs.

Step 5: Power on and verify link status. If you powered down, restore power to the MSR unit and allow the system to boot. Check the status indicators for the new HMIM Module and verify that each copper port links at the expected speed and duplex setting. Confirm that the uplink ports establish a stable connection with the rest of the network.

Step 6: Configure the module within the management interface. Access the MSR management console to assign VLANs, configure QoS policies, set up port-channel/LACP as needed, and implement any security controls. Save the configuration and test traffic flows from end-user devices to verify that latency, jitter, and throughput meet your business requirements.

Frequently asked questions

Q: What does the HMIM module add to an HP MSR system?
A: The HMIM module adds eight gigabit copper ports plus two 1000BASE-X uplink ports, expanding both access and uplink capacity within an HP MSR router. It provides flexible copper and fiber options in a single, modular form factor, enabling scalable edge deployments.

Q: Can I use the two 1000BASE-X uplink ports simultaneously with the eight copper ports?
A: Yes. The design supports concurrent operation of copper access ports and fiber (or copper-based) uplinks, allowing you to segment local access traffic from high-capacity uplink paths to your core or data center networks.

Q: Is the HMIM module hot-swappable?
A: In supported HP MSR systems, HMIM modules are designed for hot-swapping, enabling insertion or removal with minimal downtime in compliant chassis. Follow the manufacturer's guidelines for safe hot-swapping procedures.

Q: What cabling should I use with this module?
A: For the eight copper ports, use CAT5e/CAT6 cables rated for Gigabit Ethernet. For the two 1000BASE-X uplinks, use appropriate SFP transceivers and fiber cables (e.g., single-mode or multi-mode fiber) or copper alternatives as supported by the SFPs in your environment. Always verify compatibility of SFP modules with the MSR device and HMIM module.

Q: What deployment scenarios is this HMIM module best suited for?
A: It is ideal for edge and branch deployments requiring reliable Gigabit access with flexible uplinks to core networks, remote sites needing fiber backbones, or SMBs seeking a scalable, modular approach to expanding network capacity without replacing existing controllers or routers.
