Description

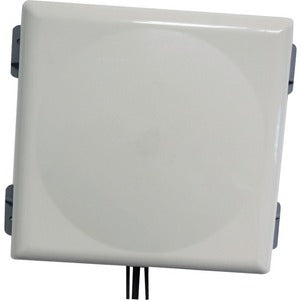

HPE Outdoor 4x4 MIMO Antenna
The HPE AP-ANT-48 is a high-performance outdoor MIMO antenna engineered to deliver reliable, high-throughput wireless coverage across both the 2.4 GHz and 5 GHz bands. This multi-polarized antenna is purpose-built for outdoor wireless data networks, offering precise sector coverage with a nominal 60° horizontal and 60° vertical beamwidth. Designed to support robust 2.4 GHz performance while also enabling effective 5 GHz sector coverage, the AP-ANT-48 is an ideal solution for enterprise WLAN deployments in stadiums, campuses, business campuses, and public outdoor spaces where stable, high-capacity connectivity is essential. Whether you’re extending network coverage along outdoor corridors, around perimeters, or across large outdoor work areas, this antenna helps maximize signal quality and user throughput while reducing interference from adjacent sectors.
- 4x4 MIMO capability: A mature multi-antenna design that enables higher data rates and improved link reliability by leveraging multiple input and multiple output streams across both 2.4 GHz and 5 GHz bands.
- Multi-polarized design: Combines multiple polarization modes to enhance signal reception in diverse outdoor environments, delivering superior performance in variable wind, rain, and surface conditions that affect signal propagation.
- Precise sector coverage: Nominal 60° horizontal x 60° vertical beamwidth focuses energy toward the client area, reducing spillover and minimizing interference from neighboring networks for cleaner, higher-throughput connections.
- Versatile mounting options: Engineered for easy installation with both pole-mount and wall-mount compatibility, enabling flexible deployment on buildings, poles, or existing infrastructure in outdoor settings.
- Optimized for outdoor wireless data networks: Specifically designed to support reliable data transmission in outdoor WLAN deployments, helping organizations scale coverage while maintaining robust performance and ease of maintenance.
Technical Details of HPE Outdoor 4x4 MIMO Antenna
- Model: AP-ANT-48
- MIMO configuration: 4x4 MIMO for enhanced throughput and reliability
- Polarization: Multi-polarized for improved reception in outdoor environments
- Beamwidth: Nominal 60° horizontal and 60° vertical
- Frequency coverage: Designed for 2.4 GHz and 5 GHz sector coverage to support wireless data networks outdoors
- Mounting options: Pole mount or wall mount for versatile outdoor installations
how to install HPE Outdoor 4x4 MIMO Antenna
Installing the HPE AP-ANT-48 is straightforward for technicians familiar with outdoor WLAN deployments. Begin with a site assessment to determine the optimal height and orientation for maximum line-of-sight to client devices while minimizing potential interference from nearby structures or other transmitters. The following steps outline a typical installation process:
Step 1: Plan the installation - Select a mounting location that provides clear line-of-sight to the intended coverage area. Consider weather exposure, cable routing, and accessibility for maintenance. Confirm that there is a suitable mounting structure capable of supporting the antenna weight and wind load.
Step 2: Prepare the mounting surface - If mounting on a pole, ensure the pole diameter matches the antenna’s mounting hardware and that the surface is clean and secure. If mounting on a wall or building facade, locate studs or solid anchors and verify the stability of the mounting surface to withstand outdoor conditions.
Step 3: Attach the antenna - Use the appropriate mounting brackets and hardware for pole or wall installation. Align the beam direction toward the target sector, ensuring the 60° beamwidth is oriented to optimize coverage for the user area. Tighten all fasteners to factory-specified torque values to maintain alignment against wind and vibration.
Step 4: Route and connect cabling - Run outdoor-rated coaxial cable from the antenna to the indoor access point or radio unit. Use weatherproof sealants and proper connectors to prevent moisture ingress. Secure cables to prevent movement that could degrade performance over time. If cable length requires, install a weatherproof enclosure or conduit to protect the run.
Step 5: Align and test - Verify proper alignment and conduct a basic site survey to confirm signal strength and coverage in the target area. Use compatible network equipment to monitor throughput, signal-to-noise ratio, and error rates. Adjust orientation if necessary to optimize performance while ensuring the beam remains within the intended sector footprint.
Step 6: Finalize installation - After confirming satisfactory performance, secure all components, label the installation for maintenance, and update documentation with installation details. Regularly inspect the antenna and cabling for weathering or damage and perform periodic testing to ensure continued performance over time.
Frequently asked questions
- Q: What bands does the HPE AP-ANT-48 support?
- A: It is designed for 2.4 GHz and 5 GHz sector coverage to support outdoor wireless data networks, enabling reliable performance across both bands.
- Q: What is the beamwidth of this antenna?
- A: The antenna features a nominal 60° horizontal beamwidth and a 60° vertical beamwidth, delivering focused sector coverage.
- Q: How can this antenna be mounted?
- A: It supports both pole-mount and wall-mount configurations, giving installers flexibility for outdoor deployments on buildings, poles, or existing structures.
- Q: What is the primary use case?
- A: It is intended for outdoor wireless data networks, helping to extend high-throughput coverage to outdoor areas such as campuses, venues, and perimeters.
- Q: Does it support 4x4 MIMO?
- A: Yes, the AP-ANT-48 is a 4x4 MIMO antenna designed to improve throughput and link reliability in outdoor WLAN deployments.
