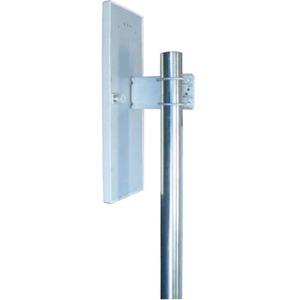

HPE Outdoor MIMO Antenna ANT-2X2-2714

HPESKU: 4690458

Price:
Sale price$463.50

Description

HPE Outdoor MIMO Antenna ANT-2X2-2714

The HPE ANT-2X2-2714 is a high-performance outdoor MIMO antenna crafted for reliable 802.11n mesh networking. This two-element, 70-degree sector antenna is engineered to deliver focused coverage in challenging urban and campus environments, where stable backhaul and point-to-multipoint links are essential. Built to operate in the 2.4 GHz Wi-Fi band, this antenna integrates two differently polarized elements within a single outdoor radome, enabling robust performance in multipath-rich environments while simplifying installation and maintenance for deployments that require dependable wireless connectivity.

Designed with practicality in mind, the ANT-2X2-2714 combines dual polarization and a compact sector design to improve network capacity and link reliability. The two distinct polarized elements enhance diversity and reduce interference, helping to maintain higher throughput in environments with reflectors, walls, and other obstructions. The 70-degree sector pattern concentrates energy toward the intended coverage area, delivering stronger receive signals and better signal-to-noise ratios for clients and backhaul links alike. In addition, the single radome protects two active elements from weather and debris, reducing maintenance needs and ensuring consistent performance across varying outdoor conditions.

Whether you are building a campus-wide mesh, extending coverage in a municipal network, or connecting remote facilities in a point-to-multipoint configuration, the ANT-2X2-2714 is designed to integrate with standard 2.4 GHz Wi‑Fi systems. Its outdoor-ready design helps minimize dead zones and supports reliable, long-range connectivity within airspaces that experience multipath propagation. With a focus on ease of deployment, this antenna consolidates two polarized elements into one streamlined housing, which translates into a cleaner installation and a streamlined maintenance workflow for network administrators and installers.

The antenna’s features are tailored to professionals who need predictable performance and straightforward integration. The dual-polarized approach improves link reliability across a variety of client orientations, making it easier to maintain stable connections for devices that are slotted around the sector area. The 2.4 GHz band remains a popular choice for mesh and backhaul deployments due to its balance of range and data rate, and the ANT-2X2-2714 is optimized to maximize performance in these typical operating conditions. This makes it an ideal choice for enterprise IT teams, service providers, and integrators looking to extend Wi‑Fi coverage with a resilient, outdoor MIMO solution.

  • Dual-polarized, 2-element design: Two differently polarized elements deliver improved signal diversity, enhancing throughput and reliability in diverse wireless environments.
  • 70-degree sector pattern: Focused energy in a defined arc reduces interference and concentrates coverage where it’s needed most, ideal for backhaul and point-to-multipoint links.
  • Outdoor-ready with a single radome: A weather-protected radome houses both elements, simplifying installation and maintenance in outdoor settings.
  • Wide 2.4 GHz coverage: Specifically tuned for the 2.400–2.483 GHz band, aligning with common Wi‑Fi deployments and 802.11n/MIMO networks.
  • Seamless integration for 802.11n MIMO mesh: Designed to support robust MIMO mesh performance, helping networks achieve higher data rates and improved reliability in campus and municipal environments.

Technical Details of ANT-2X2-2714

  • Model: ANT-2X2-2714
  • Band: 2.400–2.483 GHz
  • Elements: 2
  • Polarization: Two differently polarized elements (dual-polarized)
  • Sector Pattern: 70°
  • Radome: Single outdoor radome
  • Application: Outdoor 802.11n MIMO mesh and wireless backhaul
  • Mounting: Suitable for outdoor installations using standard mounting hardware (pole/m mast options commonly employed; installation hardware not included)

How to install ANT-2X2-2714

Installing the ANT-2X2-2714 is straightforward and designed to minimize downtime while maximizing coverage predictable for outdoor Wi‑Fi deployments. Begin by selecting a mounting location that provides the desired sector coverage and line-of-sight to the target area. A stable, elevated position helps reduce obstructions and reflections that can degrade performance. Ensure the mounting surface is secure and capable of supporting the antenna’s weight and wind loading in your environment.

Attach the antenna to the chosen mounting bracket or pole using appropriate hardware. Align the antenna so that the sector pattern points toward the area needing coverage. The 70-degree sector is directional, so precise orientation helps concentrate energy where it matters most and minimizes interference with neighboring sectors or networks. Once mounted, route RF cabling through weatherproof conduits or seals to protect against moisture and dust. Use weatherproof connectors and ensure all joints are sealed to maintain performance in outdoor conditions.

Connect the antenna to your MIMO radio or access point following your equipment’s standard instructions. In many configurations, this involves attaching the RF cables to the radio’s MIMO interface and ensuring correct channel and security settings on the network device. After cabling and connections are secured, perform a site survey or signal test to verify coverage and signal strength within the targeted arc. Fine-tune orientation if needed to maximize throughput and minimize interference from nearby networks or reflective surfaces.

Finally, document the installation parameters for maintenance and future expansions. Record the exact mounting location, orientation angle, and any observed performance metrics, so adjustments can be made quickly if network requirements change. Regularly inspect the mounting hardware and cabling, especially after severe weather, to preserve long-term reliability. With proper setup, the ANT-2X2-2714 delivers consistent 2.4 GHz MIMO performance in outdoor environments while keeping installation compact and manageable.

Frequently asked questions

  • What does ANT-2X2-2714 mean? The model name identifies an outdoor, two-element, 2x2 MIMO sector antenna designed for the 2.4 GHz Wi‑Fi band. It features dual polarization and a 70-degree coverage pattern to support reliable mesh and backhaul links.
  • What applications is this antenna best suited for? It is well-suited for outdoor 802.11n MIMO mesh networks, campus backhaul, municipal wireless deployments, and point-to-multipoint connections that require focused coverage and improved reliability in the 2.4 GHz band.
  • What frequency range does it cover? The antenna covers the 2.400–2.483 GHz band, which aligns with standard Wi‑Fi channels in the 2.4 GHz spectrum.
  • Does it support outdoor use? Yes. The ANT-2X2-2714 is designed for outdoor deployments and includes a single radome to protect the two polarized elements from weather while maintaining performance.
  • How should I install it? Choose an installation location with a clear line of sight to the target area, mount securely on a pole or mast, align the sector toward the desired coverage, use weatherproof cabling and connectors, and verify performance with a site survey after connection.
