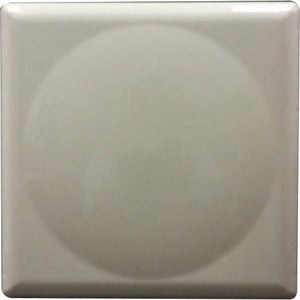

HPE Outdoor MIMO Antenna KIT ANT-3X3-5712

HPESKU: 4690466

Price:
Sale price$524.61

Description

HPE Outdoor MIMO Antenna KIT ANT-3X3-5712

Optimize your outdoor wireless deployment with the HPE ANT-3x3-5712 MIMO antenna kit. Designed for high-performance 5-GHz connections, this multipolarized, directional antenna is ideal for point-to-multipoint mesh networks, delivering strong signal coverage, improved reliability, and scalable capacity across campuses, business parks, and outdoor facilities. Built for outdoor environments, it pairs seamlessly with modern 5-GHz radios to create robust links that withstand interference and environmental conditions. With precise beam shaping and a rugged construction, the ANT-3x3-5712 helps you extend coverage where it matters most while keeping installation simple and cost-effective.

  • Multipolarized 3x3 MIMO configuration: The antenna employs a 3x3 MIMO array with multipolarized elements to boost data throughput and link reliability, delivering stronger performance in crowded 5-GHz environments and helping mesh networks scale without sacrificing quality.
  • 4.9–6.0 GHz operating range: This antenna covers the core 5-GHz bands used for outdoor wireless deployments, ensuring broad compatibility with access points, radios, and other network devices in enterprise and campus settings.
  • 70° horizontal and 25° vertical beamwidth: The directional pattern focuses energy toward target areas, extending reach while reducing interference from off-axis signals and minimizing signal leakage behind the antenna.
  • Outdoor-ready, directional design: Built to withstand outdoor conditions, the antenna’s directional profile provides stable, long-range links in exterior environments, from rooftops to utility poles and perimeters.
  • Optimized for 5-GHz point-to-multipoint mesh: Engineered to support mesh networking topologies, it enhances coverage, reliability, and capacity for scalable wireless deployments across campuses and large facilities.

Technical Details of HPE Outdoor MIMO Antenna KIT ANT-3X3-5712

  • MIMO configuration: 3x3 multipolarized array for improved throughput and link reliability in outdoor 5-GHz networks.
  • Antenna type: Outdoor, directional MIMO antenna designed for 5-GHz point-to-multipoint mesh deployments.
  • Operating frequency: 4.9 GHz to 6 GHz, covering the essential 5-GHz bands used by enterprise and campus wireless systems.
  • Beamwidth: 70° horizontal × 25° vertical, enabling broad horizontal coverage with focused vertical steering to optimize site-specific coverage needs.
  • Polarization: Multipolarized elements to adapt to changing environmental conditions and maximize gain across multiple signal paths.
  • Application: Specifically suited for outdoor 5-GHz PMP (point-to-multipoint) mesh networks to deliver reliable connectivity and scalable capacity.
  • Mounting considerations: Designed for outdoor installation on masts, poles, or walls, with weather-resistant construction to endure varying climates.

How to install HPE Outdoor MIMO Antenna KIT ANT-3X3-5712

  • Choose a sturdy outdoor mounting location with clear line of sight to the intended coverage area and the associated 5-GHz radio equipment.
  • Mount the antenna on a compatible mast, bracket, or wall mount. Ensure the mounting hardware is appropriate for your site and weather conditions, and tighten all fasteners securely to prevent movement from wind or vibration.
  • Use weatherproof, outdoor-rated cabling to connect the ANT-3X3-5712 to the corresponding 5-GHz radio or access point. Keep cable runs as short as feasible and route away from power lines or other potential sources of interference.
  • Orient the antenna to align with the target coverage area, aiming for the center of the 70° horizontal beam and the 25° vertical beam to optimize link performance and signal quality.
  • Inspect seals and weatherproofing around entry points to prevent moisture ingress. If needed, apply appropriate outdoor sealants or grommets to maintain environmental protection.
  • Power up the radio equipment and perform a site survey or link test to verify signal strength, throughput, and link stability. Fine-tune alignment as necessary to maximize performance and minimize interference.

Frequently asked questions

  • What frequency range does the ANT-3X3-5712 support? It operates across 4.9 GHz to 6 GHz, covering the core 5-GHz bands used for outdoor, enterprise, and campus wireless networks.
  • What deployment scenarios is this antenna best suited for? It is optimized for outdoor 5-GHz point-to-multipoint mesh deployments, providing reliable coverage for campuses, business parks, and other large outdoor areas where scalable wireless connectivity is needed.
  • How does the 70°/25° beamwidth affect coverage? The 70° horizontal beamwidth offers wide horizontal coverage, while the 25° vertical beamwidth focuses energy toward the intended link, improving range and reducing interference from off-axis directions.
  • Is this antenna weather-resistant? Yes, it is designed for outdoor use, with a directional, rugged construction intended to withstand outdoor environmental conditions and provide stable performance over time.
