Description

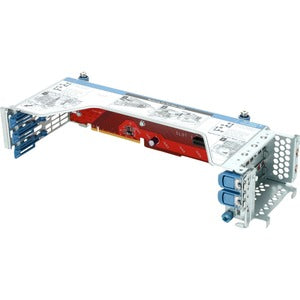

HPE ProLiant DL36X Gen10 Plus Full Height Riser Kit
The HPE ProLiant DL36X Gen10 Plus Full Height Riser Kit is the essential upgrade for enterprise servers that demand higher PCIe expansion in a compact, reliable form factor. Designed to unlock full-height add-in card support within the DL36X Gen10 Plus family, this riser kit delivers secure integration, robust airflow, and dependable performance for data-intensive workloads. Whether you're expanding compute capacity, accelerating storage throughput, or enabling specialized accelerators, this Full Height Riser Kit helps you maximize your DL36X Gen10 Plus server investment with minimal downtime and straightforward installation.
- Expanded PCIe capacity for DL36X Gen10 Plus — Seamlessly adds support for full-height PCIe cards, increasing your server’s expansion options for GPUs, accelerators, or additional NICs without needing a major system redesign.
- Full-height compatibility with a modular design — Precisely engineered to fit the DL36X Gen10 Plus form factor, this riser kit offers a secure, tool-friendly installation path that preserves existing cabling and airflow while delivering reliable card seating.
- Robust build quality and optimized airflow — Built to endure enterprise use, the kit’s materials and chassis integration maintain strong airflow characteristics, helping to prevent thermal throttling and keep critical components cool under load.
- Simple installation with standardized hardware — Includes the necessary mounting hardware and brackets to streamline installation, minimize downtime, and reduce the risk of misalignment during rack integration.
- Warranty-ready and enterprise-tested — Supported by HPE’s standard warranty ecosystem and validated for compatibility within the ProLiant DL36X Gen10 Plus ecosystem, offering confidence for production deployments.
Technical Details of HPE ProLiant DL36X Gen10 Plus Full Height Riser Kit
- Compatibility: HPE ProLiant DL36X Gen10 Plus server family; designed to support full-height PCIe expansion cards within the DL36X Gen10 Plus chassis.
- Riser type: Full Height PCIe riser card with standardized edge connectors for secure card seating.
- Form factor and mounting: Bracketed design that aligns with DL36X Gen10 Plus internal dimensions; uses standard mounting points and included screws to simplify installation.
- Included components: Riser card, mounting bracket, and necessary hardware; cables and additional accessories may be required depending on the deployment scenario.
- Warranty and support: Covered under HPE’s enterprise warranty framework; validated for reliability within the ProLiant DL36X Gen10 Plus environment.
How to install HPE ProLiant DL36X Gen10 Plus Full Height Riser Kit
- Prepare the system: Power down the server, unplug all power sources, and disconnect external cables. Ensure you’re working on a static-free surface and have appropriate antistatic precautions in place.
- Access the chassis: Remove the server’s cover or lid following the standard DL36X Gen10 Plus service procedures to expose the PCIe backplane and internal expansion slots.
- Identify the PCIe slot area: Locate the PCIe expansion region compatible with the DL36X Gen10 Plus Full Height Riser Kit; review the chassis guidelines to determine the correct alignment for the riser card.
- Install the riser card: Align the riser’s edge connectors with the backplane or PCIe slot, then firmly seat it into place. Use the supplied screws or mounting hardware to secure the riser bracket to the chassis, ensuring a snug, vibration-free fit.
- Attach expansion cards: Insert your full-height PCIe expansion cards into the riser’s slots according to card manufacturer recommendations and the server’s documentation. Verify that each card is seated properly and that any necessary power or signal cables are connected as required by the card and system design.
- Reassemble and power up: Reinstall the server cover, reconnect power and data cables, and power on the node. Enter the system BIOS/UEFI to verify that the new riser and installed cards are recognized and configured correctly.
- Test and validate: Run baseline stress tests or vendor-provided validation utilities to ensure stability, verify card detection, and confirm thermal performance within normal operating ranges.
Frequently asked questions
-
Q: What systems is the HPE ProLiant DL36X Gen10 Plus Full Height Riser Kit compatible with?
A: It is designed specifically for the HPE ProLiant DL36X Gen10 Plus server family, enabling full-height PCIe expansion within that platform. Always verify compatibility with your exact server model and BIOS version before purchase. -
Q: Does this riser kit support hot-swapping or hot-plug PCIe cards?
A: Typical installation requires powering down the server. Consult your system documentation for any model-specific allowances, but standard practice is to perform maintenance with the system powered off. -
Q: Are additional cables included with the kit?
A: The kit provides the riser card, mounting bracket, and necessary mounting hardware. Depending on your deployment, you may need to source additional cables or adapters compatible with your PCIe cards and backplane. -
Q: Will installing this riser affect server warranty or support?
A: When installed according to HPE guidelines, the riser kit is designed to be compatible with warranty and support programs for the DL36X Gen10 Plus. For exact terms, refer to your warranty documentation or contact HPE support. -
Q: Can I use high-power PCIe devices with this riser kit?
A: The ability to use high-power devices depends on the server’s overall power provisioning and thermal design. Ensure you review power budgets, airflow, and BIOS/firmware settings to maintain system stability under load. -
Q: Is there any special BIOS configuration required after installation?
A: Some BIOS/UEFI configurations may need to be updated or adjusted to recognize new PCIe devices and to optimize board layout, slot assignment, and PCIe power settings. Always perform a firmware and BIOS check after installation.
