Description

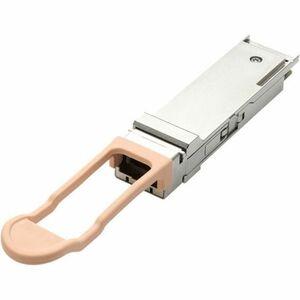

The HPE QSFP-DD Module — 400GBASE-FR4 LC FR4 2km transceiver is a high-density, next‑generation solution built for today’s bandwidth‑hungry data centers and enterprise networks. Designed to deliver robust 400G connectivity across eight parallel 50G channels, this FR4 transceiver consolidates a massive amount of bandwidth into a single compact QSFP‑DD form factor. Ideal for data center interconnects, campus networks, and slashed racks where space and performance matter, it combines advanced signaling, reliable single‑mode fiber operation, and simple plug‑and‑play deployment. With an LC/FR4 optical interface and a reach of up to 2 kilometers on SMF, it enables scalable interconnects while maintaining compatibility with existing fiber plants and standard 400G signaling. It’s engineered to minimize downtime through hot‑plug capability, integrated diagnostics, and straightforward management, ensuring you can scale your infrastructure without sacrificing uptime or ease of maintenance.
- High-density QSFP‑DD module delivering 400GBASE‑FR4 with 8×50G lanes in a single, compact form factor for dense port counts and streamlined cabling.
- Reach up to 2 kilometers on single‑mode fiber (SMF) using LC connectors and FR4 optics, enabling reliable long‑haul links between data centers, campuses, and critical interconnects.
- Plug‑and‑play deployment with hot‑swap capability in supported chassis and servers, plus built‑in diagnostics and industry‑standard 400GBASE‑FR4 signaling to maximize uptime and simplify management.
- Broad compatibility with modern switches, servers, and blade systems that support QSFP‑DD 400GBASE‑FR4 optics, helping reduce rack space and cabling complexity while maintaining high performance.
- LC/FR4 optical interface aligns with standard single‑mode fiber infrastructure; typical wavelength centered around 1310 nm, optimized for stable, long‑distance 400G connectivity.
Technical Details of HPE QSFP-DD Module
- Form Factor: QSFP‑DD
- Data Rate: 400G (8×50G lanes)
- Number of Lanes: 8
- Signaling Rate per Lane: Up to 50 GBd
- Fiber Type/Interface: Single‑Mode Fiber with LC optical interface (FR4)
- Reach: Up to 2 kilometers on SMF
- Optical Standard: 400GBASE‑FR4
- Optical Wavelength: Typical 1310 nm (FR4 variant)
How to install HPE QSFP-DD Module
- Prepare the equipment: Ensure you are working in a static‑free environment and that the host device supports QSFP‑DD modules and 400GBASE‑FR4 optics.
- Power and safety: If your system requires power down, follow your device’s standard power‑down procedure. Many modern systems support hot‑swap for QSFP‑DD modules; confirm hot‑plug capability for your chassis and slot.
- Remove packaging: Carefully remove the QSFP‑DD module from its protective packaging, handling it by the edges to prevent contamination of the optical surfaces.
- Insert the module: Align the module with the QSFP‑DD slot, ensuring the connector engages straight. Gently press until the retention latch snaps into place, signaling a secure connection.
- Connect fiber cabling: Attach SMF cables to the LC connectors on the module, observing proper bend radii and avoiding excessive tension. Label and route fibers to minimize crossovers and maintain clean, organized cabling.
- Verify operation: Power up (if required) and check the host device’s management interface for link status, lane health, and 400G link establishment. Use built‑in diagnostics to monitor optical power and temperature for reliable operation and proactive maintenance.
Frequently asked questions
- Q: What is the data rate and how many lanes does this module use?
- A: It delivers 400GBASE‑FR4 using 8×50G lanes, providing a total of 400 Gbps in a single QSFP‑DD module.
- Q: What fiber type and distance can I expect to reach?
- A: The module operates over Single‑Mode Fiber with LC connectors (FR4) and supports up to 2 kilometers, enabling long‑haul links between data centers and campus networks.
- Q: Is this module hot‑plug capable?
- A: Yes. The HPE QSFP‑DD FR4 module supports hot‑plug (hot‑swap) where the chassis and host device provide the necessary support, helping to minimize downtime during maintenance or upgrades.
- Q: What is the typical wavelength of operation?
- A: The FR4 variant typically operates at a 1310 nm wavelength, aligned with standard 400GBASE‑FR4 requirements.
- Q: How should I monitor the module’s health?
- A: The module includes built‑in diagnostics. You can monitor optical power, temperature, link status, and lane health via the host device’s management interface, enabling proactive maintenance and rapid issue isolation.
- Q: What platforms is this module compatible with?
- A: It is designed for systems that support QSFP‑DD 400GBASE‑FR4 optics, including modern switches and server blades, and is intended to integrate seamlessly into enterprise data center infrastructures with high‑density requirements.
