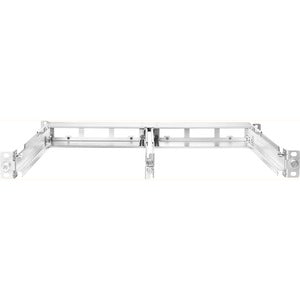

HPE StoreFabric SN2100M Rack Installation Kit

HPESKU: 5074867

Price:
Sale price$427.60

Description

The HPE StoreFabric SN2100M Rack Installation Kit is a purpose-built mounting solution designed to simplify, speed, and secure the deployment of the SN2100M StoreFabric switch in standard data center environments. This kit provides a robust set of rails, brackets, and hardware that fit neatly into a conventional 19-inch rack, delivering a clean, organized installation with dependable airflow and cable management. Built to support quick furniture-grade setups and scalable deployments, it helps IT teams reduce downtime during rack moves, upgrades, and expansion while ensuring a stable, professional presentation in front of customers, auditors, and data center managers.

  • Seamless compatibility and rack-ready engineering: The kit is designed to work with the HPE StoreFabric SN2100M and standard 19-inch rack systems, delivering a clean, tool-ready installation path. Its adjustable mounting brackets accommodate diverse rack depths and configurations, making it ideal for data centers that frequently reconfigure or expand network fabrics. By matching the SN2100M’s mounting geometry with standard rack standards, this kit ensures precise alignment, secure attachment, and reliable operation, even in dense rack rows where space is at a premium.
  • Rugged, precision-built rails and brackets: Crafted from heavy-duty galvanised steel, the rails resist corrosion and stand up to the rigors of a busy data center. The design emphasizes rigidity to minimize rail flex, which helps keep the SN2100M square and stable during installations and hot-swaps. The included brackets are engineered for straightforward attachment to the device and rack, reducing the risk of misalignment and vibration while preserving the clean front profile essential for optimal airflow and cooling.
  • Efficient installation workflow: This rack installation kit is designed to streamline deployment with thoughtful, user-friendly features. Pre-fitted hardware and clearly labeled components help technicians assemble and mount quickly, reducing installation time and downtime. The rails slide smoothly into rack channels, and integrated alignment cues guide precise positioning before final securing. The result is a repeatable, predictable installation process that minimizes the need for adjustments once the SN2100M is mounted.
  • Cable management and airflow optimization: Integrated cable management considerations help maintain orderly cabling and unimpeded airflow, which are critical for reliable performance and thermal efficiency in dense racks. The kit includes dedicated paths and support provisions for neatly routing power, data, and management cables, while preserving the SN2100M’s ventilation clearance. A tidy cable layout not only improves cooling efficiency but also simplifies maintenance and future upgrades by reducing the risk of cable strain or accidental disconnections.
  • Complete hardware kit with comprehensive coverage: Every necessary mounting component is included, such as rails, brackets, screws, cage nuts, and an installation guide. This eliminates the need to source separate parts and ensures you have everything required for a standard, compliant installation. The kit is engineered to pair precisely with the SN2100M, but it also accommodates common rack configurations, enabling flexible installation options for varied data-center layouts and future growth planning.

Technical Details of HPE StoreFabric SN2100M Rack Installation Kit

  • Compatibility: HPE StoreFabric SN2100M and standard 19-inch rack systems
  • Material: Heavy-duty galvanised steel rails and brackets designed for durability and resistance to corrosion
  • Adjustability: Adjustable depth and mounting brackets to fit a range of rack depths and configurations
  • Contents: Rails, mounting brackets, cage nuts, screws, and installation guide for a complete kit
  • Design benefits: Integrated cable management features and anti-tip considerations to support stability and airflow

how to install HPE StoreFabric SN2100M Rack Installation Kit

  • Prepare your rack and device: Ensure you are working in a standard 19-inch rack environment with power disconnected. Verify that the rack has cage nuts installed at the mounting locations and that there is sufficient clearance for airflow around the SN2100M once mounted.
  • Attach mounting brackets to the SN2100M: Align the provided brackets with the SN2100M’s mounting points and secure them using the included screws. Tighten evenly to avoid any tilt or misalignment, taking care not to over-tighten and damage mounting threads.
  • Mount rails to the rack: Extend or adjust the rails to match the rack depth, then align the rails with the cage nuts in the rack posts. Secure the rails with the appropriate screws or bolts per your rack’s configuration, ensuring the rails are level and firmly attached.
  • Install the SN2100M onto the rails: With assistance if needed, slide the SN2100M into the rails, ensuring the mounting brackets align with the rails’ slots. Engage any locking mechanisms and confirm the device sits squarely within the rack bay and is securely supported by the rails and brackets.
  • Finalize cabling and test: Route cables through the kit’s integrated cable management paths, keeping power, data, and management cables neatly organized to maximize airflow. Reconnect power, power up the SN2100M, and perform basic functional tests to verify connectivity and operation before placing the rack back into service.

Frequently asked questions

  • Q: What racks is the HPE StoreFabric SN2100M Rack Installation Kit compatible with?
    A: It is designed for standard 19-inch racks used in data centers and office server rooms, providing a universal mounting approach for SN2100M hardware across typical rack enclosures. If your rack uses non-standard posts or unusual spacing, verify compatibility prior to purchase.
  • Q: What hardware is included?
    A: The kit includes mounting rails, brackets, cage nuts, screws, and an installation guide. It provides all necessary components to complete a secure, reliable installation for the SN2100M in a standard rack.
  • Q: Do I need special tools to install?
    A: Basic hand tools are typically sufficient (such as a screwdriver or torque-limiting driver as required by your rack hardware). The kit is designed to simplify the process and minimize downtime, but verify your rack’s mounting requirements before starting.
  • Q: Can this kit be used for other SN-series devices?
    A: The kit is specifically designed for the HPE StoreFabric SN2100M. While it uses standard 19-inch mounting hardware, always confirm compatibility with other SN-series devices and mounting footprints before attempting cross-usage.
  • Q: Is there any maintenance required after installation?
    A: Routine checks for loose screws, proper rail alignment, and clear cabling are recommended. Ensure that airflow is unobstructed and that cables remain organized to support cooling efficiency and long-term reliability.
