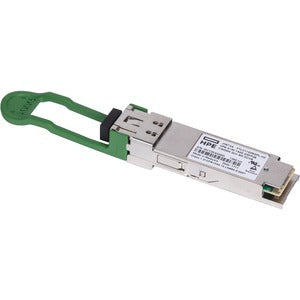

HPE X150 100G QSFP28 CWDM4 2km SM Transceiver

HPESKU: 5739041

Price:
Sale price$13,211.33

Description

HPE X150 100G QSFP28 CWDM4 2km SM Transceiver

Elevate your data center with the HPE X150 100G QSFP28 CWDM4 2km SM Transceiver — a high-performance 100 Gigabit Ethernet optical module engineered for reliable, scalable network deployments. This CWDM4 QSFP28 transceiver delivers four 25 Gbps lanes in a single compact package, enabling efficient 100G connectivity over single-mode fiber (SMF) for distances up to 2 kilometers. Built for dense, modern networks, it blends robust design, easy hot-swapping, and proactive diagnostics to reduce downtime, simplify maintenance, and maximize uptime in busy data center environments.

Designed for next-generation optical networks, the HPE X150 CWDM4 transceiver simplifies uplink aggregation, spine-leaf architectures, and long-haul connections across campus networks. By leveraging the CWDM4 approach, you gain the flexibility of mixing wavelengths to optimize fiber utilization, minimize capex, and extend reach without rewiring your entire fabric. This module is ideal for organizations migrating from 10G or 40G to 100G, offering a cost-effective upgrade path with minimal disruption and seamless compatibility with a wide range of QSFP28 Ethernet switches and routers that support 100GBASE-CWDM4.

  • High-density 100G performance — Four 25 Gbps lanes combine into a single QSFP28 module to deliver up to 100 Gbps of transport capacity, enabling fast data transfers, multi-tenant isolation, and scalable growth in data centers and enterprise networks.
  • 2 km reach on single-mode fiber — Optimized for CWDM4 channels, this transceiver supports reliable, long-range links across campus backbones and data center topologies, reducing the need for optical amplification over typical enterprise distances.
  • CWDM4 wavelengths for flexible fiber utilization — Four CWDM channels (centered around standard CWDM wavelengths) enable efficient use of existing SMF infrastructure, helping you maximize fiber profitability while simplifying route planning and inventory management.
  • MSA-compliant QSFP28 form factor — Hot-swappable, plug-and-play design fits standard QSFP28 ports on most 100G switches and routers, delivering a straightforward upgrade path without specialized adapters or extensive downtime.
  • Diagnostics and reliability — Digital Diagnostics Monitoring (DDM) and robust optical resilience provide real-time visibility into operating parameters, helping network engineers monitor link health, preempt faults, and maintain service levels with confidence.

Technical Details of HPE X150 100G QSFP28 CWDM4 2km SM Transceiver

  • Form factor: QSFP28 hot-swappable transceiver module
  • Data rate: 100 Gbps aggregated (four 25 Gbps CWDM4 lanes)
  • Interface: 100GBASE-CWDM4 over QSFP28
  • Wavelengths: CWDM4 channels around standard CWDM wavelengths (four separate lanes: nominally in the 1271–1331 nm region)
  • Reach: up to 2 kilometers on single-mode fiber (SMF)
  • Fiber type: Single-mode optical fiber (SMF, typically ITU-T G.652-compatible)
  • Diagnostics: Digital Diagnostics Monitoring (DDM) for monitoring laser bias, optical power, temperature, and supply current
  • Compliance: MSA-compliant QSFP28 module designed for use in 100G optical networks; RoHS-compliant and suitable for data-center deployments
  • Packaging: Compact, hot-swappable module designed to integrate with a wide range of 100G switches and routers that support CWDM4
  • Operating environment: Built for enterprise-grade reliability with broad compatibility across standard 100G Ethernet networks

How to install HPE X150 100G QSFP28 CWDM4 2km SM Transceiver

  • Power down or follow hot-swap procedures for the equipment hosting the QSFP28 port, and confirm that the target port supports 100GBASE-CWDM4 and is compatible with HPE X150 modules.
  • Handle the transceiver carefully and align it with the QSFP28 port, ensuring the connectors and guides engage smoothly without excessive force.
  • Insert the module into the QSFP28 slot until you hear or feel a click indicating that it is securely seated and latched.
  • Connect the fiber cables to the LC connectors on the transceiver, ensuring proper polarity ( transmit to receive across the link) and clean, dust-free connections.
  • Power up or resume operation, then verify link status on the switch or router. Use the device’s management interface to confirm the 100GBASE-CWDM4 link is established and that the traffic path is correctly mapped.
  • Leverage the transceiver’s Digital Diagnostics Monitoring (DDM) data to monitor optical power levels, temperature, and bias current, and set up alert thresholds if supported by your network management tools.
  • If you are integrating into a multi-vendor environment, validate compatibility with the chosen switch brand and firmware version to ensure optimal performance and stable CWDM4 operation.
  • Document the installation, including port, fiber connections, and lot or serial numbers, to support future maintenance, troubleshooting, and warranty coverage.

Frequently asked questions

  • What is CWDM4? CWDM4 is a four-lane 100G technology that uses four distinct wavelengths to carry 25 Gbps of data per lane, yielding a total of 100 Gbps in a single QSFP28 module. It is designed to maximize fiber utilization while keeping costs manageable for data centers and enterprise networks.
  • What distance does this transceiver support? This module is designed for up to 2 kilometers over single-mode fiber, making it suitable for intra-building and campus-scale deployments where longer reach is required without expanding fiber plant beyond what CWDM4 already leverages.
  • Is the HPE X150 CWDM4 transceiver hot-swappable? Yes. The QSFP28 form factor is designed for hot-swapping, allowing maintenance or upgrades without powering down the entire switch, subject to appropriate team procedures and equipment compatibility.
  • Can I use this transceiver with non-HPE switches? The module is designed to be compatible with a wide range of QSFP28 ports that support 100GBASE-CWDM4. However, compatibility can vary by vendor and firmware. Always verify cross-compatibility with your switch vendor’s compatibility matrix before deployment.
  • What kind of diagnostics are available? The transceiver supports Digital Diagnostics Monitoring (DDM), providing real-time visibility into optical power, temperature, bias current, and other critical parameter values to aid proactive maintenance and rapid fault isolation.
  • Do I need any special cabling or fiber type? Yes. You will need single-mode fiber (SMF) with appropriate LC connectors and proper fiber type (commonly ITU-T G.652-compatible) to achieve the stated 2 km reach and CWDM4 performance. Ensure connectors are clean and terminated correctly for best results.
  • Is this module energy efficient? CWDM4 transceivers are designed to balance performance with power efficiency suitable for dense data-center deployments, helping control overall energy consumption while delivering high-port-density 100G connectivity.
