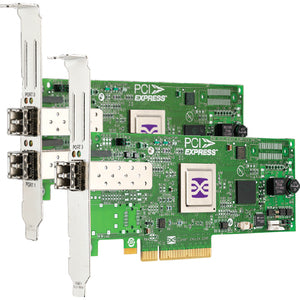

IBM Emulex LPe12002 Fibre Channel HBA

Engineered for mission‑critical storage environments, the IBM Emulex LPe12002 Fibre Channel HBA delivers robust, scalable, and high‑performance connectivity for enterprise servers. This dual‑channel Fibre Channel Host Bus Adapter is designed to meet the demands of mixed‑OS and virtualized data centers, offering streamlined installation, advanced management capabilities, and industry‑leading virtualization support. With dependable throughput, excellent I/O isolation, and strong fault tolerance, the LPe12002 is a trusted solution for consolidating storage, accelerating databases, and powering large‑scale virtualization projects.

• Dual‑port Fibre Channel performance – Two independent Fibre Channel channels provide concurrent bandwidth, enabling efficient storage fabrics, improved IOPS, and enhanced resilience for dense server workloads.
• Industry‑leading management and virtualization support – Integrated with Emulex OneCommand Manager and other widely used management tools, the LPe12002 simplifies configuration, monitoring, and path optimization in virtualized environments such as VMware, Hyper‑V, and KVM.
• Broad OS and hypervisor compatibility – Built to work with a wide range of operating systems and virtualization platforms, ensuring seamless deployment across mixed‑OS servers and data center clusters.
• Scalability and reliability for data‑center growth – Designed to scale with expanding storage fabrics, supporting multipathing, zoning, and streamlined failover to maximize uptime and data availability.
• Easy installation and integration – A compact, low‑profile design paired with straightforward deployment steps helps reduce server downtime and accelerates time‑to‑service in enterprise environments.

Techncial Details of IBM Emulex LPe12002 Fibre Channel HBA

• Product: IBM Emulex LPe12002 Fibre Channel HBA
• Ports: 2 x Fibre Channel ports (dual‑channel design)
• Fibre Channel speed: 4 Gbps per port (4Gb FC, providing solid bandwidth for storage networks)
• Bus interface: PCIe x4 form factor (typical for modern servers) – SKU and platform support may vary
• Form factor: Low‑profile PCIe/half‑height card suitable for rack‑mount and blade servers
• Transceivers: Requires standard Fibre Channel SFP modules for connectivity (modules sold separately)
• Management: Compatible with Emulex OneCommand Manager and popular third‑party management suites for visibility, provisioning, and firmware updates
• Compatibility: Built to integrate with major operating systems and virtualization platforms to support multipath I/O, zoning, and fabric provisioning

How to install IBM Emulex LPe12002 Fibre Channel HBA

Installing the LPe12002 is designed to be straightforward in standard data center hardware. Begin with a plan for your storage fabric and host connectivity, ensuring you have the correct Fibre Channel cables and SFP modules for your SAN environment. Power down the server and remove the cover to access the PCIe slot area. Insert the LPe12002 into a compatible PCIe x4 slot, ensuring the card is firmly seated and secured with the retention screw. Close the case and reconnect power.

Boot the server and install the necessary drivers and management software. The Emulex OneCommand Manager provides a centralized interface to configure the HBA, set up zoning, and enable multipathing across both ports. After driver installation, verify the card is detected in the operating system, then proceed to configure a LUN or storage target as you would with any other FC HBA. Configure multipath I/O to ensure optimal path selection and redundancy across multiple transport routes, which helps prevent single points of failure in heavy I/O workloads.

Once the HBA is recognized, create or verify zoning on the storage fabric to permit access between the host and the required storage devices. If you are running a virtualization platform, apply appropriate multipathing and path policies to ensure balanced load across both FC ports while maintaining balance with the hypervisor’s path management. Regularly monitor the HBA using OneCommand Manager or your preferred management solution to track throughput, error rates, and port status, and perform firmware updates as recommended by IBM/Emulex to maintain peak performance and reliability.

In practice, the LPe12002 helps simplify complex storage topologies by delivering reliable fabric connectivity, consistent throughput, and robust failover capabilities. It is well suited for enterprise servers handling large databases, virtual desktop infrastructure, backup appliances, and other storage‑intensive workloads. By combining dual ports with solid management tooling, administrators can implement scalable configurations that grow with their datacenter needs while maintaining predictable latency and high availability.

For best results, pair the LPe12002 with certified Fibre Channel switches, carefully plan zoning policies, and leverage the management software to monitor port usage, queue depth, and error counters. The result is a storage connectivity solution that remains responsive under heavy load, supports rapid provisioning, and minimizes downtime during maintenance windows or fabric reconfigurations. With the LPe12002, you gain a dependable backbone for your enterprise storage strategy, one that aligns with modern virtualization initiatives and the evolving demands of data‑driven organizations.

Frequently asked questions

• Q: Is the LPe12002 compatible with major virtualization platforms? A: Yes. The LPe12002 is designed to support virtualization workflows and integrates with common virtualization stacks, including VMware and other hypervisors, through standard Fibre Channel configurations and management tools.
• Q: How many I/O paths does it provide? A: The card offers two independent Fibre Channel channels, enabling multipathing and efficient load balancing across two fabrics or two paths within a fabric.
• Q: What management tools should I use? A: Emulex OneCommand Manager is the primary management interface, complemented by vendor and third‑party software for monitoring, firmware updates, and fabric provisioning.
• Q: Do I need special cables or transceivers? A: You will need standard Fibre Channel SFP modules appropriate for your storage fabric, along with compatible Fibre Channel cables. Transceivers and cables are typically sold separately by the switch vendor or storage integrator.
• Q: Can this card be used in high‑density server environments? A: Absolutely. The low‑profile form factor and dual‑port design are intended for enterprise servers, blades, and dense rack installations where reliable storage connectivity and easy management are essential.
• Q: Are there any considerations for firmware or driver updates? A: Yes. Regular firmware and driver updates help maintain performance and reliability. Use the Emulex management tools to check for updates and apply them following the recommended maintenance procedures.
