Description

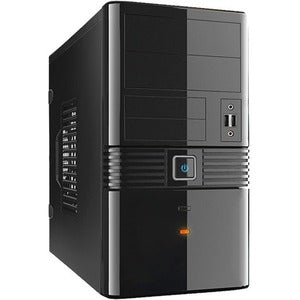

In Win EM023 Mini Tower Chassis
Discover compact engineering without compromising on expansion. The In Win EM023 Mini Tower Chassis is a sleek black micro ATX-ready case designed for space-conscious builds that still demand flexible storage, solid cooling, and accessible front-panel connectivity. With six drive bays, a pre-installed 350 W power supply, and support for up to three fans, this mini-tower chassis offers a smart blend of practicality and performance for home offices, budget gaming rigs, entertainment PCs, or tight workspaces. Its clean lines, sturdy construction, and thoughtful layout make it a standout choice for builders seeking a compact yet capable enclosure.
- Compact mini-tower design for Micro ATX boards — The EM023 is optimized for smaller footprints while delivering full micro ATX motherboard compatibility, balancing space efficiency with expansion capability.
- Extensive drive and bay flexibility — 6 bays total: 2 external 5.25" bays, 2 external 3.5" bays, 1 internal 3.5" bay, and 1 internal 2.5" bay, giving you versatile storage options for HDDs, SSDs, and optical drives where applicable.
- Pre-installed 350 W power supply — A reliable power source is already in place, simplifying your build and ensuring stable power delivery for mainstream components.
- Effective cooling with fan support — Designed to accommodate up to 3 fans, helping maintain clean thermals in a compact enclosure and supporting quiet, steady operation.
- Practical front-panel connectivity — Front I/O includes convenient USB access and an audio input, making it easy to connect peripherals and headsets without reaching behind the case.
Technical Details of In Win EM023 Mini Tower Chassis
- Type: Mini-tower chassis
- Color: Black
- Motherboard compatibility: Micro ATX
- Drive bays: 6 total — 2 external 5.25", 2 external 3.5", 1 internal 3.5", 1 internal 2.5"
- Power supply: 350 W installed
- Front I/O: 2 x USB ports, 1 x Audio In
- Expansion slots: 4
- Fan support: Up to 3 fans
how to install In Win EM023 Mini Tower Chassis
Getting the EM023 up and running is straightforward thanks to its efficient layout and included power supply. Start with a clean workspace and gather your components: a Micro ATX motherboard, a compatible CPU and cooler, RAM, storage drives, and any PCIe expansion cards you plan to use. Before you begin, ensure you have mounting screws and cables ready. The EM023 is designed to simplify the assembly process while keeping cable routing accessible for a tidy build.
Step 1 — Prepare the case: Remove any packaging and inspect the interior for the drive bays and mounting points. The six bays are clearly positioned for quick installation, with external bays available for optical drives or front-access storage devices and internal bays ready for HDDs or SSDs. If you plan to install fans beyond the pre-configured layout, decide the cooling configuration and prepare mounting hardware.
Step 2 — Install the power supply and motherboard: The EM023 comes with a 350 W power supply already installed, so you can focus on mounting your Micro ATX motherboard. Align the motherboard with the case standoffs and secure it with screws. Connect the 24-pin ATX power cable and the 8-pin (or 4/8-pin) CPU power connector from the PSU to the motherboard. Route the cables neatly along the backside to maintain airflow and ease future upgrades.
Step 3 — Install drives: Choose your drive configuration to maximize the available bays. Install 2.5" SSDs or 3.5" HDDs into the internal bays, and place 3.5" or 2.5" drives into the external bays if needed. Secure each drive with screws through the provided mounting points. If you’re using external optical drives in the 5.25" bays, slide them into place and secure them with the appropriate screws or brackets.
Step 4 — Install PCIe cards: Insert your graphics card, sound card, or other expansion cards into the PCIe slots provided (up to 4 slots). Ensure the card is fully seated, then secure it with the case’s rear slot screws. Manage any power connectors for PCIe devices carefully, keeping cables away from fans and other components to prevent interference with airflow.
Step 5 — Connect front panel and case wiring: Attach the front-panel USB cables, audio lead, and power switch/case LED cables to the motherboard according to your board’s manual. The EM023’s front-panel controls are designed for straightforward connection, so you can quickly complete this step without a lot of cable drama. A tidy cable layout not only looks clean but also helps airflow and maintenance over time.
Step 6 — Final checks and boot: Double-check all connections, re-seat any memory modules if needed, and confirm that all cables are routed clear of fans and intake vents. Close the case, connect your monitor, keyboard, and mouse, and power on to verify that POST occurs and that fans ramp up as expected. If you notice no display, re-check power and data connections to the drives and motherboard, then reboot. Once you confirm system initialization, you’re ready to install the operating system and drivers.
Tips for optimizing performance include using the external 5.25" bays for optical drives or primary storage devices where convenient, leveraging the internal 2.5" bay for a fast SSD boot drive, and balancing fan placement to sustain a cool, quiet system. The EM023’s compact size makes cable management essential; invest a little extra time in routing cables along the backside to improve airflow, reduce turbulence, and create a clean internal appearance that’s easy to maintain.
Frequently asked questions
- Q: Is the EM023 compatible with Micro ATX motherboards? A: Yes. The EM023 is designed to accommodate Micro ATX motherboards, making it suitable for a wide range of builds from basic office PCs to compact multimedia systems.
- Q: Does the case come with a power supply? A: Yes. The EM023 includes a pre-installed 350 W power supply, providing reliable power for mainstream components and simplifying initial setup.
- Q: How many drives can I install? A: The chassis supports six drive bays in total: 2 external 5.25" bays, 2 external 3.5" bays, 1 internal 3.5" bay, and 1 internal 2.5" bay, offering flexible storage configurations for HDDs and SSDs.
- Q: How many fans can I install? A: The EM023 supports up to 3 fans, allowing you to tailor cooling performance to your components and noise preferences.
- Q: What front-panel connectivity does it offer? A: The front panel includes 2 x USB ports and 1 x Audio In, providing convenient access for peripherals without needing to reach behind the chassis.
