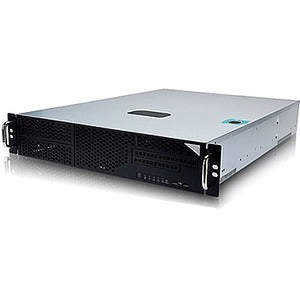

In Win Open-Bay 2U Server Chassis - High-Density 2U Rack-Mount Steel Enclosure with 7 Drive Bays

The In Win Open-Bay 2U Server Chassis is engineered for professionals who demand scalable storage, robust build quality, and reliable performance in a compact 2U footprint. Crafted from steel for enduring durability and designed for efficient airflow, this rack-mountable chassis provides aggressive drive capacity without sacrificing accessibility or serviceability. With a pre-installed 2 x 500 W power supply, it delivers solid power headroom for demanding workloads, while supporting ATX and SSI CEB motherboards to accommodate a wide range of enterprise and workstation configurations. Whether you’re building a virtualization host, a database server, or a high-density compute node, this chassis offers the essential foundations for a dependable data center or edge deployment.

• Optimized 2U form factor with seven drive bays, including 3 external 5.25" bays, 1 external 3.5" bay, and 3 internal 3.5" bays, delivering substantial storage expansion in a compact footprint for dense rack environments.
• Reliable power delivery with 2 x 500 W power supplies installed, providing ample headroom for modern server components and drives while keeping system power stable under load.
• Broad motherboard compatibility, supporting ATX and SSI CEB form factors to accommodate mainstream server and workstation platforms, along with flexible expansion and migration paths.
• Durable steel construction and a practical internal layout that supports straightforward maintenance, efficient cable routing, and clear drive access for quick deployments and servicing.
• Integrated front-end I/O flexibility, including 2 USB ports and standard rack-mount readiness, making it easy to attach peripherals, diagnostics tools, or management devices without opening the chassis.

Technical Details of In Win Open-Bay 2U Server Chassis

• Form factor: 2U rack-mountable server chassis
• Material: Steel
• Drive bays: 7 total — external 3 x 5.25" bays, external 1 x 3.5" bay, internal 3 x 3.5" bays
• Expansion slots: 7
• Power supply: 2 x 500 W installed
• Motherboard support: ATX, SSI CEB
• USB ports: 2 x USB

How to Install In Win Open-Bay 2U Server Chassis

• Prepare your rack space and ensure you have a compatible 19-inch rack and mounting hardware suitable for a 2U chassis. Confirm the rack rails are rated for the weight of the chassis with drives installed.
• Mount the chassis in the rack using the appropriate rails and screws, aligning it securely so it sits level and stable. Tighten fasteners to prevent vibration and ensure proper airflow to the chassis.
• Install the motherboard (ATX or SSI CEB) into the chassis using the correct standoffs and screws. Align the motherboard with the IO shield and rear I/O opening, then tighten standoffs to prevent bending or flexing under load.
• Connect the power supplies and power connectors. Since the unit ships with two 500 W PSUs installed, ensure both units are connected to power, and verify that the system can draw adequate current for CPU, memory, and storage devices during boot and operation.
• Install drives into the available bays: place drives into the external 5.25" bays and external 3.5" bay, then insert internal 3.5" drives as needed. Secure drives with screws or the chassis’ mounting mechanism, and connect data and power cables carefully to avoid obstruction of airflow.
• Route cables cleanly to maximize airflow and accessibility. Connect front-panel USB or diagnostic cables as required by your motherboard and management tools. Verify all connections are secure before powering on.
• Power on, enter the BIOS/UEFI setup, and configure boot order, RAID, and drive recognition as appropriate for your deployment. Install the operating system or virtualization software, and monitor temperatures and fan behavior to ensure stable operation in your environment.

Frequently Asked Questions

Q: What drives can I install in the In Win Open-Bay 2U Server Chassis?

A: The chassis provides 7 drive bays in total: 3 external 5.25" bays, 1 external 3.5" bay, and 3 internal 3.5" bays. This configuration supports a mix of optical/media devices and high-density storage drives typical for servers and workstations.

Q: Which motherboards are supported?

A: The chassis is designed to support ATX and SSI CEB motherboard form factors, offering compatibility with a broad range of server-grade and workstation-grade boards.

Q: Does the chassis come with a power supply?

A: Yes. The Open-Bay 2U Server Chassis ships with two 500 W power supplies installed, providing solid baseline power and headroom for typical dual-processor or high-drive configurations.

Q: How many USB ports are available?

A: The chassis includes 2 USB ports, enabling convenient front- or back-panel connections for maintenance, diagnostics, or peripheral devices without extensive wiring.

Q: Is this chassis suitable for data centers or edge deployments?

A: Yes. Its 2U rack-mount design, steel construction, and flexible drive layout make it suitable for data centers, colocation facilities, or edge computing environments where density and reliability are critical.
