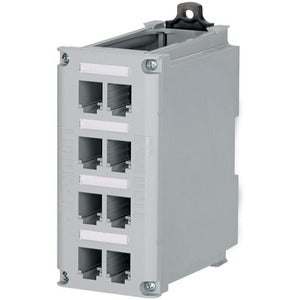

IndustrialNet Copper DIN Rail Patch Panel — 8-Port DIN Rail Patch Panel for Dense Industrial Networking

The IndustrialNet™ Copper DIN Rail Patch Panel is engineered for harsh industrial environments where reliable, high-density connectivity matters. Built with high-impact polycarbonate and designed to snap securely onto a standard 35mm DIN rail, this 8-port patch panel delivers rugged performance without sacrificing compact footprint or ease of installation. Whether you’re upgrading a control cabinet, expanding a machine intelligentsia network, or deploying a distributed automation system, this patch panel provides a solid, copper-focused backbone for fast, secure data transmission.

• The Copper DIN Patch Panel is crafted from high‑impact polycarbonate, delivering superior durability against vibration, dust, and occasional accidental impacts common in industrial settings. Its rugged construction resists cracking and maintains consistent signal integrity in temperatures and conditions that would challenge lesser materials. With a focus on longevity, this patch panel stands up to daily use in manufacturing floors, automation hubs, and outdoor enclosures where environmental factors can strain connectivity over time.
• 8-port density enables scalable copper connectivity in a compact footprint. Each port is engineered to accommodate Mini-Com Modules occupying standard footprints, facilitating orderly organization and expansion of your copper-based network. This design is ideal for systems requiring reliable copper extension between patch panels, controllers, and field devices, delivering predictable performance across distributed locations.
• 35mm DIN rail mounting with adjustable latches provides secure, tool-free installation and a clean, professional appearance inside control cabinets. The latches lock firmly onto the DIN rail, resisting loosening from vibrations and repeated door cycles. This mounting approach streamlines deployment in enclosed panel environments, and the modular nature makes future reconfigurations straightforward as your network evolves.
• Versatile compatibility with Mini-Com Modules ensures seamless integration with existing copper infrastructure. The patch panel’s copper-focused design and module-occupying footprint enable reliable signal transmission with minimal crosstalk and attenuation. This compatibility allows system integrators to combine Copper DIN panels with other Mini-Com components for a cohesive, scalable network solution within industrial racks and cabinets.
• Ease of maintenance and cable management enhances long-term performance. The design supports neat port labeling, accessible terminations, and stable routing for copper cables. This approach reduces installation errors, simplifies troubleshooting, and ensures that routine audits and service calls can be conducted quickly, keeping downtime to a minimum and production lines running smoothly.

Technical Details of IndustrialNet Copper DIN Rail Patch Panel

• Ports: 8-port DIN rail patch panel for copper-based Mini-Com modules
• Mounting: Standard 35mm DIN rail (DIN rail mount) with adjustable latches for secure installation
• Material: High-impact polycarbonate for enhanced durability in demanding environments
• Compatibility: Designed to work with Mini-Com Modules occupying standard footprints; intended for copper networking applications
• Finish/Construction: Rugged, panel-mount friendly design optimized for enclosure use and quick field rewiring

How to Install IndustrialNet Copper DIN Rail Patch Panel

Installing the IndustrialNet Copper DIN Rail Patch Panel is straightforward and designed to minimize downtime while maximizing reliability. Follow these practical steps to ensure a secure, organized, and scalable copper connectivity solution within your control cabinet or equipment enclosure:

• Power down all equipment and disconnect any active copper cables before beginning installation to prevent electrical shock or data corruption.
• Identify a suitable location inside the enclosure with adequate clearance for the 8-port patch panel and its connected Mini-Com Modules. Ensure there is enough space for cable routing and future expansion.
• Mount the patch panel onto a standard 35mm DIN rail using the adjustable latches. Slide the panel onto the rail, adjust the latches to secure the unit firmly, and verify that the panel sits level and stable without play.
• Route copper cables from the field devices or deployment points to the corresponding ports on the patch panel. Use appropriate cable management practices to minimize bending, maintain bend radius, and avoid cable stress. Label each port clearly to simplify future maintenance or changes.
• Attach the Mini-Com Modules occupying the standard footprint into the 8-port slots, ensuring proper alignment and secure seating. After all Module connections are established, recheck hinge points and latching mechanisms to confirm the panel remains firmly attached to the DIN rail during operation.
• Power up the equipment and run a basic functional check. Verify link lights, signal integrity, and that data flows properly through each port under normal operating conditions. If any port does not function as expected, re-seat the Mini-Com Module and inspect the corresponding copper cable for damage or misalignment.

Frequently Asked Questions

• Q: How many ports does the IndustrialNet patch panel have?
• A: It features 8 ports, designed for dense copper connectivity and easy expansion within industrial racks and cabinets.
• Q: What mounting method does this patch panel use?
• A: It is designed for standard 35mm DIN rails, with adjustable latches to secure the unit firmly in place inside control enclosures.
• Q: Is this patch panel compatible with Mini-Com Modules?
• A: Yes. The Copper DIN Patch Panel is designed to work with Mini-Com Modules that occupy standard footprints, enabling seamless integration with existing copper networking components.
• Q: What material is the patch panel made of, and why does that matter?
• A: It is constructed from high‑impact polycarbonate, providing rugged durability for industrial environments where vibration, dust, and minor impacts are common.
• Q: How should I label and manage cables for long-term reliability?
• A: Use clear port labels, maintain proper bend radii, and route cables with adequate spacing from heat sources or moving parts. Regular inspections help prevent wear and ensure consistent performance over time.
