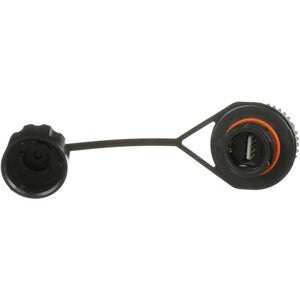

IndustrialNet USB Female A-A 2.0 Bulkhead Coupler

The IndustrialNet USB Female A-A 2.0 Bulkhead Coupler is engineered for reliability in demanding industrial and manufacturing environments. This bulkhead connector delivers a secure, panel-mount USB 2.0 solution with a protective cap to minimize debris ingress when not in use. Built to withstand harsh conditions, the IP67-rated seal guards against dust and temporary immersion, ensuring continuous data transmission and power delivery even in challenging factory floors. The inclusion of a bulkhead anti-rotation washer helps eliminate module rotation, preserving alignment and reliability during high-vibration operation. Whether you’re integrating sensors, PLCs, or industrial computers, this bulkhead connector keeps USB connections stable, protected, and easy to service in rugged environments.

• Rugged USB 2.0 A-A female bulkhead connection designed for harsh industrial environments where reliable data transfer and power delivery are essential.
• IP67-rated seal provides robust protection from dust and temporary immersion, helping maintain performance in factory floors, testing benches, and outdoor installations.
• Protective cap included to shield the USB port from contaminants when not connected, extending connector life and reducing maintenance.
• Bulkhead anti-rotation washer eliminates the potential for module rotation, preserving alignment and ensuring a stable connection in vibration-prone applications.
• Panel-mount design optimized for industrial layouts, enabling easy integration with standard USB 2.0 cabling and equipment in manufacturing environments.

Technial Details of IndustrialNet USB Female A-A 2.0 Bulkhead Coupler

• Interface: USB 2.0 Female A-A bulkhead connector for quick, reliable data transfer and power delivery in industrial systems.
• Sealing: IP67-rated housing provides dust protection and temporary immersion resistance to support rugged factory use.
• Protection: Protective cap keeps the USB port clean when not in use and helps preserve seal integrity.
• Stability: Bulkhead anti-rotation washer prevents rotation, maintaining connector alignment during operation and vibration.
• Mounting: Panel-mount bulkhead design suitable for integration into enclosures, cabinets, and equipment racks in manufacturing lines.

how to install IndustrialNet USB Female A-A 2.0 Bulkhead Coupler

Follow these general steps to install the IndustrialNet USB Female A-A bulkhead coupler in a panel or enclosure. Prepare the installation area by ensuring the panel cutout matches the bulkhead’s external dimensions and that routing paths for cables are clear. Use appropriate hardware consistent with your enclosure and panel material, and verify that the mounting surface is clean and free of debris that could compromise the seal.

• Position the bulkhead in the panel cutout from the exterior side (or as specified by your enclosure design) and align with the mounting surface. Confirm that the orientation allows proper cable routing and access to the protective cap.
• Secure the bulkhead to the panel using the appropriate mounting hardware, then seat the anti-rotation washer to prevent rotation under vibration. Tighten to a snug fit without overtightening, which could damage the seal or housing.
• Route the USB cable(s) to the bulkhead, ensuring the connector ends will seat fully into the female A port. If multiple cables are used, maintain proper strain relief to avoid stressing the connector.
• Attach the USB cable to the bulkhead port and verify a clean, full seating of the connector. Engage any shielding or ferrite beads as required by your system to minimize EMI.
• Close the protective cap when the bulkhead is not in use and perform a basic ingress protection check as part of your QA procedure to confirm the IP67 seal remains intact under typical operating conditions.

Frequently asked questions

• Q: Is this bulkhead connector IP67 rated?
  A: Yes. The bulkhead is designed with an IP67-rated seal to protect against dust and temporary immersion, making it suitable for demanding industrial environments.
• Q: What USB standard does it support?
  A: It supports USB 2.0, offering reliable data transfer speeds compatible with a wide range of USB devices and sensors used in manufacturing and automation.
• Q: Does it come with a protective cap?
  A： Yes. A protective cap is included to shield the USB port when not connected, helping to maintain seal integrity and reduce debris ingress.
• Q: What is the purpose of the anti-rotation washer?
  A: The anti-rotation washer prevents module rotation, keeping the bulkhead securely aligned in high-vibration environments and reducing the risk of misalignment during operation.
• Q: Is this bulkhead suitable for outdoor or wet-area installations?
  A: The IP67 sealing makes it well-suited for dusty or damp environments and temporary immersion scenarios typically encountered in industrial settings, though you should assess any long-term submersion requirements in your application.
