IndustrialNet Mini-Com 8-Port DIN Rail Shielded Patch Panel

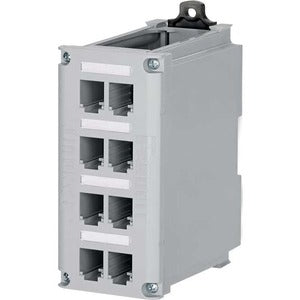

Introducing the IndustrialNet Copper Shielded DIN Rail Patch Panel — a rugged, EMI-aware solution designed for industrial networks and harsh environments. Crafted from high-impact polycarbonate, this 8-port DIN rail patch panel is built to withstand the vibration, dust, and temperature fluctuations typical of factory floors while delivering consistent copper connectivity. It mounts quickly to a standard 35mm DIN rail and features adjustable latches that lock it securely in place, reducing panel movement and ensuring stable signal paths. This Copper DIN Patch Panel is designed to work with any Mini-Com Module, enabling flexible, modular expansion without sacrificing shielding or performance. Whether you're upgrading an existing control cabinet or deploying a new industrial Ethernet backbone, the IndustrialNet patch panel provides a compact, durable home for your copper connections, minimizing EMI risks and preserving signal integrity across multiple ports. With a focus on reliability, ease of installation, and long-term serviceability, it’s an ideal choice for automation, process control, and data communications in manufacturing environments.

• Robust shielded copper design delivers EMI resilience across rugged factory floors, helping maintain performance in environments with motors, welders, and switching gear that can introduce interference.
• High‑impact polycarbonate construction resists impact, abrasion, and chemical exposure, while the secure 35mm DIN rail mounting system standardizes installation in control panels and enclosures.
• Eight copper shielded ports provide a compact, dense patching solution with consistent impedance and shielding for reliable copper connectivity across multiple links.
• Adjustable latches enable fast, tool-free locking to the DIN rail, reducing movement from vibration and ensuring long-term alignment and cable management.
• Designed for Mini-Com compatibility, offering a modular approach that supports easy expansion, reconfiguration, or replacement of modules without swapping the entire panel.

Technical Details of IndustrialNet Mini-Com 8-Port DIN Rail Shielded Patch Panel

• Material: High‑impact polycarbonate for durability in harsh environments
• Ports: 8 copper shielded ports for reliable copper connections
• Mounting: Standard 35mm DIN rail compatibility for quick installation in control cabinets
• Locking mechanism: Adjustable latches to secure the panel to the DIN rail
• Compatibility: Supports any Mini-Com Module, enabling modular networking configurations

How to Install IndustrialNet 8-Port Patch Panel

• Step 1: Confirm your enclosure uses a standard 35mm DIN rail and clear the mounting area of dust and debris to ensure a clean installation.
• Step 2: Align the patch panel with the DIN rail and slide it onto the rail until the adjustable latches engage, securing the panel in place.
• Step 3: Verify the panel is level and firmly seated; if needed, apply gentle pressure to ensure the latches are fully engaged and the unit is stable against vibration.
• Step 4: Connect your Mini-Com Modules to the 8 copper shielded ports, ensuring each connection is fully seated to maintain shielding performance and signal integrity.
• Step 5: Route cables neatly using cable guides or ties, keeping shielded paths clear of sharp bends, and perform a quick continuity check to confirm port activity and shielding continuity.

Frequently asked questions

• Q: Is the IndustrialNet 8-port DIN Rail Patch Panel shielded, and what does copper shielding do for performance?

  A: Yes. The copper shielding helps suppress EMI/RFI, enhancing signal integrity in electrically noisy industrial environments and protecting copper traces from interference produced by motors, drives, and welding equipment.

• Q: Will this patch panel work with my existing Mini-Com modules?

  A: Absolutely. The panel is designed to be compatible with any Mini-Com Module, allowing you to mix and match modules as your network evolves without replacing the patch panel.

• Q: How many ports does it support, and can I expand later?

  A: It provides eight ports in a compact DIN-rail footprint, and its modular design accommodates future expansion or reconfiguration by adding or swapping modules as needed.

• Q: What mounting standard does it use?

  A: It mounts to a standard 35mm DIN rail, a common format in industrial control cabinets, making integration straightforward in most enclosures.

• Q: Is installation tool-free, or do I need special hardware?

  A: The panel uses adjustable latches for secure, tool-free DIN rail mounting; basic cable management hardware is typically sufficient, depending on your enclosure and layout.

• Q: In what environments is this patch panel best suited?

  A: It is well-suited for factory floors, control rooms, and other industrial settings where EMI shielding, durability, and reliable copper connectivity are critical for network performance.
