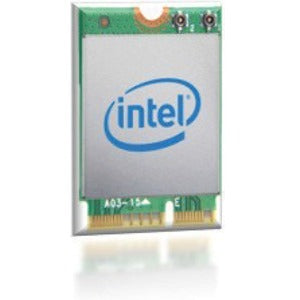

Intel Wireless-AC 9560: 2x2 Wi-Fi + Bluetooth 5.0 for Notebooks

The Intel Wireless-AC 9560 is a CRF (companion RF module) that brings a modern, high‑performance wireless upgrade to notebooks through CNVi integration. Built to accompany the first generation of Intel’s wireless solution, this module delivers the power of 802.11ac Wi‑Fi with Bluetooth 5.0 in a compact, low‑profile package. It supports 2x2 MIMO with Wave 2 features, including 160 MHz channels that unlock substantial throughput—up to 1.73 Gbps theoretical speed when the network, router, and environment permit. Designed for thin and light laptops, this CNVi/CRF combination reduces board space, simplifies integration, and improves overall power efficiency—benefiting both battery life and sustained performance during media streaming, online gaming, video conferencing, and large file transfers. If you’re upgrading an aging notebook or building a new machine that demands reliable wireless connectivity, the Intel 9560 provides a robust, future‑proof foundation.

• Ultra-fast Wi‑Fi: 2x2 802.11ac with Wave 2 capabilities delivers higher real‑world speeds, enhanced throughput, and better performance in busy environments, thanks to MU‑MIMO and 160 MHz channel support where available.
• Bluetooth 5.0 integration: Extended range, faster data transfer rates, and improved coexistence with other wireless devices make this module ideal for wireless peripherals, headphones, keyboards, mice, and wearables.
• CNVi + CRF architecture: A compact, integrated design that reduces motherboard complexity while enabling efficient host communication, lower latency, and better power management in CNVi‑enabled notebooks.
• 2x2 antenna configuration: Two spatial streams provide reliable performance in both 2.4 GHz and 5 GHz bands, delivering smooth streaming, quick file transfers, and snappy online gaming in supported environments.
• Dual‑band versatility and backward compatibility: Supports the common 2.4 GHz and 5 GHz bands, ensuring broader device compatibility and improved network reliability across a range of routers, access points, and mixed‑band home networks.

Technical Details of Intel Wireless-AC 9560

• Product type: CRF companion RF module with CNVi integration for notebook wireless platforms
• Wireless standard: IEEE 802.11ac (Wi‑Fi 5) with 2x2 MIMO and Wave 2 enhancements
• Bluetooth: Bluetooth 5.0 for extended range and higher throughput with compatible peripherals
• Antenna configuration: 2x2 MIMO, enabling improved performance and stability across supported networks
• Channel bandwidth: Supports up to 160 MHz channels where router and regulatory regions permit
• Data rate: Theoretical maximum up to 1.73 Gbps with optimal conditions and channel bonding
• Form factor and interface: CNVi/CRF module designed for CNVi-enabled notebook integrations; typically installed via the notebook’s dedicated wireless slot
• Security and compatibility: Designed to work with Intel driver stacks providing compatibility with Windows ecosystems and ongoing driver support

How to install Intel Wireless-AC 9560

• Verify compatibility: Confirm your notebook supports CNVi with a CNVi slot and a CRF/Intel wireless module exchange. Check for a suitable M.2 or mini‑PCIe interface and ensure there is an available spare antenna connection. Confirm that your BIOS does not restrict CNVi wireless adapters (some models have whitelist restrictions).
• Power down and prepare: Turn off the laptop, unplug from power, and remove the battery if it is easily accessible. Ground yourself to prevent static discharge before handling internal components.
• Access the wireless area: Remove the back panel or service cover to expose the existing wireless card and antenna cables. Identify the current CNVi/CRF module or the available slot in the notebook’s wireless subsystem.
• Disconnect antennas: Note the placement of the two antenna cables (often labeled “A” and “B”) and carefully detach them from the existing module using a gentle lifting motion. Free the old module from its slot by removing any securing screws.
• Install the new module: Insert the Intel Wireless-AC 9560 CRF module into the CNVi/PCIe slot, align the connector, and secure the module with screws. Reattach the two antenna cables to the new module, ensuring a firm connection to prevent interference or loss of signal.
• Power up and install drivers: Replace the service panel, reconnect power, and boot the notebook. Install or update the Intel wireless drivers from Windows Update or Intel’s official driver pages to enable full functionality, including Bluetooth 5.0 and 802.11ac performance improvements.
• Test connectivity: Connect to 2.4 GHz and 5 GHz networks, test Bluetooth peripherals, and verify the performance across multiple devices. Run speed tests or streaming checks to confirm the expected improvements in real‑world conditions.

Frequently asked questions

• Q: What is the Intel Wireless-AC 9560, and what does it include?
• A: The Intel Wireless-AC 9560 is a CNVi‑based CRF module that combines 2x2 Wi‑Fi with Bluetooth 5.0 in a compact form factor for notebooks. It leverages Wave 2 features like 160 MHz channels to deliver faster wireless performance where supported by routers and networks, and it provides the Bluetooth capabilities needed for modern peripherals.
• Q: What kind of speeds can I expect with this module?
• A: Theoretical speeds can reach up to 1.73 Gbps when 160 MHz channels are available and the network conditions are favorable. Real‑world speeds depend on your router, environment, and interference, but you’ll typically see noticeable improvements in streaming, gaming, and large file transfers compared with older wireless solutions.
• Q: Is the Intel Wireless-AC 9560 compatible with most laptops?
• A: Compatibility depends on the notebook’s CNVi support, slot type (M.2 or PCIe/mini‑PCIe), BIOS allowances, and antenna wiring. Verify that your device can accommodate a CNVi/CRF module and that there is no OEM BIOS whitelist blocking replacement wireless adapters.
• Q: Do I need to reinstall drivers after installation?
• A: Yes. After installing the new module, install or update the official Intel wireless drivers to enable both Wi‑Fi and Bluetooth functionalities. Windows Update or Intel’s driver download page will provide the current, supported versions.
• Q: Can I use the Intel Wireless-AC 9560 with Windows 11?
• A: The 9560 is designed to work with supported Windows versions, and Intel provides drivers to ensure compatibility with newer systems. Ensure you install the latest drivers from Intel to maintain optimal performance and security on Windows 11 or Windows 10.
