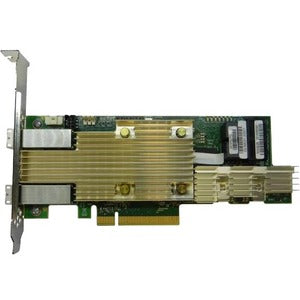

Intel Tri-mode PCIe/SAS/SATA Full-Featured RAID Adapter — RSP3MD088F (8 Internal + 8 External Ports)

The Intel Tri-mode PCIe/SAS/SATA Full-Featured RAID Adapter, model RSP3MD088F, is engineered to power some of the most demanding enterprise workloads. Designed for use in content and web hosting appliances, security appliances, financial institutions, cloud service providers, and broad IT deployments, this RAID adapter combines dense storage connectivity with flexible tri-mode operation. Its PCIe interface, SAS, and SATA capabilities unify high-throughput data access with robust protection for critical applications, delivering reliability, scalability, and manageability in a single, compact card. The standard, low-profile MD2 form factor ensures seamless integration into both Intel servers and third-party systems, enabling efficient installation in rackmount servers, appliances, and edge devices. In practice, IT teams rely on the RSP3MD088F to accelerate I/O-heavy workloads, improve data protection, and reduce storage bottlenecks across mixed environments. This makes it a compelling option for data centers and enterprise IT where performance, reliability, and compatibility matter as data volumes continue to grow and service-level requirements tighten. With its versatile design and broad ecosystem support, the Intel RAID Adapter is built to future-proof storage infrastructure while preserving compatibility with existing hardware investments.

• Tri-mode architecture with expansive port footprint: The adapter delivers PCIe, SAS, and SATA connectivity in a single, compact card, featuring 8 internal and 8 external ports. This enables dense storage configurations and flexible cabling for front- and back-end storage arrays, capable of scaling alongside growing workloads.
• Low-profile MD2 form factor for broad compatibility: The standard MD2 profile is designed to fit both Intel and third-party server platforms, allowing easy integration into a wide range of servers, appliances, and edge devices without compromising expansion capabilities.
• Enterprise-grade reliability for mission-critical workloads: Built to support the demands of content hosting, security appliances, financial services, and cloud service providers, the RSP3MD088F emphasizes robust data protection, resilience, and steady performance under heavy I/O workloads.
• Flexible management and scalable performance: Comprehensive management options enable configuration of arrays, monitoring of health, and tuning of throughput. Administrators can optimize performance, protection, and resource utilization across complex storage environments with confidence.
• Future-ready design for growing data centers: With an extensive port footprint and compatibility with modern server ecosystems, this adapter positions IT teams to scale capacity and preserve compatibility with evolving storage technologies, reducing total cost of ownership over time.

Technical Details of Intel Tri-mode PCIe/SAS/SATA Full-Featured RAID Adapter

• Model: Intel® RAID Adapter RSP3MD088F
• Form Factor: MD2, low-profile
• Interface: Tri-mode PCIe/SAS/SATA
• Ports: 8 internal ports, 8 external ports
• Target deployments: content and web hosting appliances, security appliances, financial institutions, cloud service providers, enterprise IT
• Compatibility: Intel and third-party server platforms

How to Install Intel Tri-mode PCIe/SAS/SATA RAID Adapter

To integrate the RSP3MD088F into a supported server or appliance, follow these steps to ensure a secure and stable installation. Begin with proper static precautions and a powered-down system to reduce the risk of damage to components. Verify that your chassis has an appropriate MD2-compatible PCIe slot and sufficient space for the card and any required cabling. Always consult your server or motherboard documentation for slot compatibility and supported configurations before installation.

1) Power down the server, unplug power cables, and remove the chassis cover to access the motherboard and expansion slots. 2) Locate a suitable PCIe slot that matches the card’s interface and length, ensuring there is ample clearance for cabling and airflow. 3) Remove the slot cover if needed and align the RSP3MD088F with the PCIe slot. Gently seat the card into the connector until it is firmly seated. 4) Secure the card to the chassis with the rear bracket screw to prevent movement under operation. 5) Connect SAS and SATA cables to the appropriate internal and external connectors according to your storage topology, following your cabling plan to minimize cross-talk and ensure clean signal paths. 6) Replace the chassis cover, reconnect power, and boot the system. 7) Enter the server BIOS or RAID configuration utility to initialize the card, verify detection, and create or import storage arrays as required. 8) Install the latest drivers and firmware for the RAID adapter from the vendor or system integrator, then use the management utility to monitor health, performance, and array status. 9) Validate that all drives are visible to the operating system and that the configured arrays operate as intended within your workload profiles.

Frequently Asked Questions

• Q: What is the port configuration of the Intel RSP3MD088F? A: It provides 8 internal ports and 8 external ports in a tri-mode PCIe/SAS/SATA interface, enabling flexible storage connectivity for dense configurations and mixed storage environments.
• Q: Which systems is this RAID adapter compatible with? A: It is designed for use in Intel and third-party server products and is suitable for content and web hosting appliances, security appliances, financial institutions, cloud service providers, and enterprise IT environments seeking scalable storage performance.
• Q: How do I configure RAID arrays and protect data? A: Use the BIOS/RAID configuration utility provided with the server or card to initialize the device, create the desired arrays, assign drives, and set redundancy options. Always follow best practices for backup and recovery and adhere to your organization’s data protection policies.
• Q: How can I update firmware and drivers? A: Obtain the latest drivers and firmware from Intel or your server vendor’s support site, then apply updates through the server’s management utility or operating system device manager as directed by the vendor documentation.
• Q: Is this adapter hot-swappable? A: Compatibility with hot-swapping depends on the host system, chassis design, and storage enclosure. In many enterprise deployments, installation and maintenance of RAID adapters are performed with the system powered down or in accordance with the platform’s hot-swapping capabilities and guidelines.
