Description

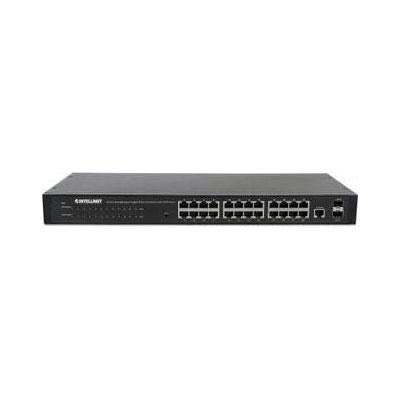

Intellinet 24-Port Network Switch, 24-Port (RJ45), Rackmount, Gigabit, 4 SFP, Ethernet Web-Smart, 10/100/1000 Mbit/ (With C14 2 Pin Euro Power Cord)
The Intellinet 24-Port Network Switch is engineered for small to mid-size businesses and branch offices that demand secure, scalable, and easy-to-manage edge connectivity. This Gigabit-capable, rack-mountable switch combines 24 RJ45 ports with 4 SFP uplinks, delivering flexible connectivity for desktops, servers, printers, IP phones, and wireless access points. With Web-Smart management and SNMP support, network administrators gain insight and control without sacrificing performance or simplicity. The inclusion of a European C14 power cord makes it ideal for regional deployments where a reliable, plug-and-play power solution is essential.
- 24 x 10/100/1000 Mbps RJ45 ports plus 4 x 1000 Mbps SFP uplink ports for flexible copper or fiber connections and scalable network growth.
- Web-Smart management with SNMP monitoring enables intuitive browser-based configuration, centralized control, and remote diagnostics for proactive network operation.
- Layer 2 switching features include 802.1Q VLAN tagging, QoS (802.1p/DSCP), IGMP Snooping, and Spanning Tree Protocol variants to optimize performance and avoid loops in nested networks.
- Reliable, non-blocking performance with auto-negotiation, auto-MDI/MDI-X, and IEEE standards compliance to ensure seamless interoperability with existing equipment and future upgrades.
- Rack-mountable 1U chassis designed for 19-inch equipment racks, with a C14 Euro power cord included for convenient installation in European power environments.
Technical Details of Intellinet 24-Port Network Switch
- Ports: 24 x 10/100/1000 Mbps RJ45 ports for edge devices and servers, plus 4 x 1000 Mbps SFP uplink ports for fiber or copper uplinks
- Management: Web-based GUI (Web-Smart) with SNMP v1/v2/v3 support for monitoring and configuration
- VLAN: 802.1Q VLAN tagging with support for multiple VLANs and a management VLAN for secure device administration
- Quality of Service: 802.1p and DSCP-based QoS to prioritize voice, video, and critical data
- Loop Prevention: Spanning Tree Protocol (STP/RSTP) to prevent broadcast storms in redundant topologies
- Traffic Control: IGMP Snooping for efficient multicast traffic handling and reduced broadcast domains
- Auto Features: Auto-negotiation and Auto-MDI/MDI-X for simplified port connections and plug-and-play usability
- Power and Compliance: 100-240V AC, 50/60 Hz input; EU C14 power cord included for European deployments
- Form Factor: 1U, rack-mountable 19-inch chassis suitable for data centers, server rooms, and office closets
- Dimensions and Weight: Designed for standard 19-inch racks; compact footprint to maximize rack space
- Operating Environment: Built for typical office environments with robust performance in a compact form factor
how to install Intellinet 24-Port Network Switch
- Unbox and verify all components, including the switch, mounting hardware, and the included European power cord.
- Power down affected equipment and plan your rack layout to minimize cable runs and maximize airflow.
- Mount the switch in a standard 19-inch rack using the provided screws; leave space for cooling and cable management.
- Connect edge devices (workstations, printers, IP phones, access points) to the 24 RJ45 ports on the switch.
- Connect uplink devices or distribution gear to the 4 SFP ports using appropriate transceivers or modules; ensure fiber or copper options match your infrastructure.
- Power on the switch and access the Web UI via the default IP address or via DHCP if configured by your network; follow the setup wizard to assign IP, VLANs, and basic security settings.
- Configure VLANs to separate traffic (e.g., management, user data, voice), set up QoS for critical applications, and enable IGMP Snooping for multicast efficiency as needed.
- Implement security measures such as strong admin passwords, SNMP access controls, and limit management access to trusted networks or VPNs.
- Save the configuration and monitor port activity, utilization, and error statistics through the Web-Smart interface or SNMP tools for ongoing maintenance.
Frequently asked questions
- What are the main benefits of the Intellinet 24-Port Network Switch?
- Can I manage this switch remotely?
- What types of uplink options does it provide?
- Is this switch suitable for enterprise deployments?
- What power and mounting options are included?
The switch offers abundant edge ports for devices, flexible uplinks via 4 SFP ports, Web-Smart management for easy administration, and robust Layer 2 features (VLANs, QoS, IGMP Snooping, STP) to optimize performance and reliability in small to medium-sized networks.
Yes. It supports a Web-based GUI for local management and SNMP (v1/v2/v3) for remote monitoring and control, allowing network administrators to configure and monitor the device from centralized management systems.
The switch includes four 1000 Mbps SFP uplink ports, enabling fiber or copper uplinks depending on the transceivers or modules installed, which provides flexible scalability for growth and redundancy.
While designed with small- to mid-sized networks in mind, the combination of 24 Gigabit ports, four SFP uplinks, and rich Layer 2 features makes it a solid option for branch offices, regional networks, and compact data-center edge applications requiring secure, manageable connectivity.
The unit ships with a C14 Euro power cord and is built for 19-inch rack installation in a standard 1U chassis, offering easy integration into existing rack environments and power distribution setups.
