Interface Module

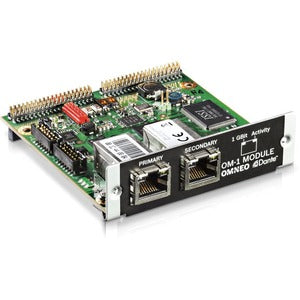

The OM-1 Interface Module is a compact, robust interface designed for seamless integration into an OMNEO network. This device enables high-fidelity Dante audio to be sent to and received from other PAVIRO Controllers with the OM-1 Interface Module installed. With support for up to 16 digital input signals and 16 digital output channels, the OM-1 delivers flexible, scalable routing for modern audio installations—ranging from corporate boardrooms and conference facilities to live event venues and broadcast environments. Engineered for reliability in demanding environments, the module emphasizes straightforward deployment, dependable performance, and compatibility with established audio networking standards. Whether you’re building distributed paging, immersive sound reinforcement, or centralized AV workflows, the OM-1 Interface Module provides a resilient backbone for unified control across OMNEO and Dante ecosystems.

• Seamless OMNEO and Dante integration: The OM-1 serves as a bridge that enables Dante audio to be sent to and from other PAVIRO Controllers equipped with an OM-1 Interface Module, creating a unified, scalable networked audio path across facilities.
• High-channel, flexible I/O: Supports up to 16 digital input signals and 16 digital output channels, delivering versatile routing for microphones, line-level sources, and speaker-management systems while preserving audio quality and synchronization.
• Compact, robust form factor: Designed to fit easily into standard rack spaces or compact installations, the OM-1 minimizes footprint without compromising performance, making it ideal for venues with space constraints or modular AV builds.
• Plug-and-play with PAVIRO ecosystem: Integrates smoothly with PAVIRO Controllers, enabling centralized control, consistent user experience, and simplified network management across multiple devices and rooms.
• Professional-grade reliability and standards support: Built to operate within enterprise-grade networks, leveraging OMNEO and Dante protocols for stable routing, monitoring, and interoperability with common audio tools and controllers.

Techncial Details of Interface Module

• Form factor: Compact interface module engineered for OMNEO networking environments.
• Network compatibility: OMNEO network connectivity with Dante audio capability to and from other PAVIRO Controllers featuring an OM-1 Interface Module.
• Inputs/Outputs: Up to 16 digital audio input channels and 16 digital audio output channels for flexible routing and expansion.
• Compatibility: Designed to work in tandem with PAVIRO Controllers that deploy the OM-1 Interface Module, enabling synchronized operations across devices.
• Use case: Ideal for installations requiring scalable, low-latency, networked audio distribution across rooms, floors, or entire venues.

How to install Interface Module

• Plan your network topology: Ensure your OMNEO-enabled infrastructure is configured and that Dante-enabled devices are discoverable in the Dante Controller or equivalent routing tools.
• Connect the OM-1 Interface Module to the network: Use a standard Ethernet connection to your managed switch or PoE-capable switch if power over Ethernet is supported in your deployment.
• Power up and verify indicators: Apply power and confirm that status indicators reflect healthy operation; consult the product manual for LED patterns that indicate normal activity.
• Configure routing between OMNEO and Dante devices: Use your network management tools to establish desired audio paths between the OM-1 and other Dante-enabled devices, including PAVIRO Controllers, ensuring correct channel mapping for the 16x16 I/O.
• Test audio paths and levels: Perform end-to-end tests with microphones, line sources, and loudspeakers; monitor signal integrity, latency, and level matching across the network to confirm stable, high-quality audio delivery.
• Document the setup: Record IP addresses, channel assignments, and routing matrices to simplify future maintenance and potential expansions.

Frequently asked questions

• Q: What is the primary purpose of the OM-1 Interface Module?
• A: The OM-1 Interface Module provides a compact, scalable bridge between OMNEO networks and Dante audio, allowing 16x16 digital I/O routing and seamless communication between PAVIRO Controllers equipped with the module.
• Q: How many audio channels does the OM-1 support?
• A: The OM-1 supports up to 16 digital input channels and 16 digital output channels, enabling flexible routing for a variety of installations—from small meeting rooms to large venues.
• Q: Is the OM-1 compatible with both OMNEO and Dante protocols?
• A: Yes. The OM-1 is designed to operate within OMNEO networks while enabling Dante audio to be exchanged with other compatible devices, including PAVIRO Controllers, ensuring cross-network interoperability.
• Q: What kind of installations benefit most from the OM-1?
• A: Installations requiring scalable, low-latency networked audio—such as conference venues, auditoriums, retail spaces, campuses, and broadcast environments—benefit from the OM-1’s 16x16 I/O and OMNEO/Dante compatibility.
• Q: How do I troubleshoot connectivity issues between OMNEO and Dante devices?
• A: Start with verifying network configuration, IP addressing, and switch settings; ensure that Dante Controller and OMNEO management tools recognize connected devices; check channel mappings and latency settings; consult the official manuals for compatible firmware versions and supported configurations.
• Q: Are there any special considerations for integrating with PAVIRO Controllers?
• A: When integrating with PAVIRO Controllers, ensure each controller’s OM-1 Interface Module is properly initialized, routing matrices are aligned across devices, and centralized control software is configured to reflect desired paths for both input and output channels to achieve cohesive operation across the entire system.
