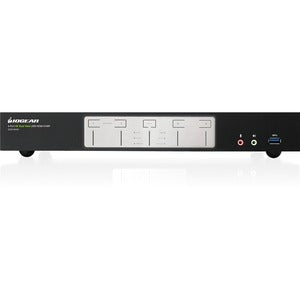

IOGEAR 4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio

IOGEARSKU: 6274855

Price:
Sale price$726.00

Description

IOGEAR 4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio

Elevate your high-end, multi-monitor workstation with the IOGEAR 4-Port 4K Dual View KVMP Switch. This compact, feature-rich device unifies keyboard, video, mouse, and peripherals across up to four computers, delivering pristine 4K HDMI video, seamless switching, and versatile USB sharing. Built for power users who demand reliability and speed, it enables dual-monitor productivity without clutter or compromise. With a built-in USB 3.0 hub, integrated audio routing, and intuitive control options, you can manage multiple systems—from development rigs to design workstations—through a single, streamlined interface. If you’re looking to maximize desk space and minimize cable chaos while preserving top-tier display quality, this KVMP switch is designed to meet and exceed those needs.

  • 4-Port KVMP Switch for up to four computers with dual-monitor capability: Manage multiple machines while driving two HDMI displays, delivering crisp 4K visuals for a true multi-display workflow.
  • USB 3.0 hub and peripheral sharing: Share keyboards, mice, printers, USB drives, and other USB devices across all connected PCs at high speed, with effortless plug-and-play familiarity.
  • HDMI connection with 4K60 support: Experience stunning color, detail, and smooth motion across compatible displays, ideal for design, video editing, gaming, and engineering workloads.
  • Integrated audio routing: Dedicated audio lines for each computer ensure clean, independent sound without reconnecting cables or juggling adapters.
  • intuitive control and broad compatibility: Switch between hosts via keyboard hotkeys or front-panel button, with cross-platform compatibility for Windows, macOS, and Linux environments.

Technical Details of IOGEAR 4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio

  • Video connections: 4 HDMI inputs from computers; 2 HDMI outputs to dual monitors for a true dual-view setup.
  • Video resolution: Supports up to 4K Ultra HD (3840 x 2160) at 60 Hz for sharp, fluid images and accurate color reproduction.
  • USB hub: Built-in USB 3.0 hub facilitates high-speed sharing of peripherals among all connected hosts, with consistent performance for keyboards, mice, drives, and printers.
  • Switching method: Keyboard hotkeys and front-panel push-button switching provide fast, reliable control without software installation.
  • Audio: Analog stereo audio with microphone capability routed per host to simplify audio management across systems.
  • Compatibility: Designed to work across major operating systems, including Windows, macOS, and Linux, enabling mixed-platform setups.
  • Power and connectivity: Typically bus-powered through connected computers; external power is optional in certain configurations or setups requiring additional stability.
  • Form factor: Compact desktop enclosure that fits neatly on a traditional workstation or in a media/telecom rack with compatible mounting options.
  • EDID and display reliability: Includes EDID pass-through and automatic display re-detection to maintain stable, consistent output when switching hosts.

how to install IOGEAR 4-Port 4K Dual View KVMP Switch with HDMI Connection, USB 3.0 Hub and Audio

  • Place the KVMP switch on your desk and position it within easy reach of your PCs and displays. Ensure there is adequate ventilation and enough space to route cables cleanly.
  • Connect the two HDMI displays to the switch’s HDMI outputs. If you plan to use two monitors, use high-quality HDMI cables to preserve 4K fidelity and color accuracy.
  • Connect each computer to one of the switch’s HDMI inputs using HDMI cables. If a computer uses a non-HDMI output (for example DisplayPort), use a reliable adapter to convert to HDMI before connecting to the switch.
  • Attach your keyboard and mouse to the USB ports on the KVMP switch to enable shared control across all connected PCs. If you have additional USB devices (printer, USB drive, etc.), plug them into the built-in USB 3.0 hub ports.
  • Connect the audio sources and microphones to the appropriate 3.5mm jacks, if required, and route audio to the desired host via the switch’s audio paths.
  • Power up the connected computers and the switch (if using an external power adapter). Use the front-panel push button or your keyboard hotkeys to select the active host. If necessary, adjust display settings in each operating system to align with the dual-monitor arrangement.
  • Test switching between hosts to confirm video, audio, and peripheral sharing are functioning as expected. Make minor display or audio level adjustments within each OS to optimize your dual-view workflow.

Frequently asked questions

  • Q: What is a KVMP switch? A: A KVMP switch combines keyboard, video, mouse, and peripheral sharing across multiple computers. It lets you control several PCs from one keyboard and mouse set, while routing video to monitors and sharing USB devices and audio conveniently.
  • Q: Can I run a dual-monitor setup with this switch? A: Yes. The device supports dual HDMI outputs that feed two displays, enabling a true dual-view experience when paired with compatible 4K-capable monitors.
  • Q: How many computers can I connect? A: The switch accommodates up to four computers, allowing quick switching among four hosts while maintaining a centralized desktop setup.
  • Q: Do I need drivers to use the switch? A: In most cases, no driver installation is required. The KVMP switch is designed for plug-and-play operation, with standard OS support for keyboard, mouse, and USB devices.
  • Q: Does the device support audio switching? A: Yes. The unit includes audio routing features that allow audio from the active computer to be played through connected speakers or headphones without reconnecting cables.
  • Q: Is 4K at 60 Hz available? A: When used with compatible monitors and sources, the switch supports up to 4K Ultra HD at 60 Hz for smooth motion and rich detail.
  • Q: Is a software installation required for Windows or macOS? A: No software installation is typically required; the solution is designed to operate via hardware hotkeys and front-panel controls with broad cross-platform compatibility.
