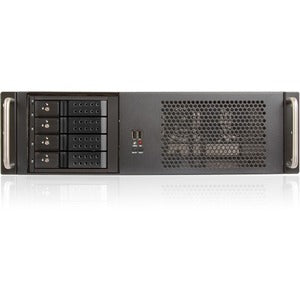

iStarUSA 3U Compact Rackmount Chassis compatible with PS2 Power Supply

Introducing the iStarUSA D-314-MATX, a compact 3U rackmount chassis engineered for reliable industrial computing in tight spaces. It supports microATX motherboards with dual-core or quad-core CPUs, includes a robust backplane for up to four full-height add-on cards, and is designed to work with PS2-compatible power supplies. With a shallow 16" depth, this chassis fits into dense data centers, edge deployments, studios, and rugged installations while maintaining accessible I/O and solid thermal management. Built for durability and easy deployment, the D-314-MATX blends expandability with compact form to maximize rack density without sacrificing performance.

• Designed for dependable 3U rack deployment in compact environments, the iStarUSA D-314-MATX uses a sturdy chassis that delivers stable power delivery and reliable operation for microATX boards, whether you’re running a dual-core or quad-core processor. It prioritizes chassis rigidity and shielded I/O to protect critical components in busy installations.
• Compact 16" depth enables easy integration in tight racks and cabinet enclosures, making it ideal for space-constrained data centers, edge deployments, and studios. The 3U height aligns with standard 19" rack rails, offering convenient mounting in existing infrastructure while preserving room for multiple PCI/PCIe cards via the backplane.
• Flexible motherboard and backplane support: Full-size I/O on the front and compatibility with microATX motherboards, paired with a backplane that accommodates up to four full-height add-on cards, delivering substantial expansion potential for NICs, RAID controllers, accelerators, and other enterprise-grade peripherals.
• Thermal and airflow options: The chassis supports optional two 80mm cooling fans at the front to promote efficient airflow across CPU, memory, and backplane cards. This cooling arrangement helps maintain performance under load and extends component life in industrial settings.
• PS2 power supply compatibility and maintenance-friendly design: Built to work with PS2 power supplies, this chassis provides reliable power delivery for rugged environments. Its layout simplifies routine maintenance, component swaps, and field service, keeping downtime to a minimum while preserving a clean, organized interior for cable management and airflow.

Technical Details of iStarUSA 3U Compact Rackmount Chassis

• 3U rackmount chassis height for standard server racks
• Depth: 16 inches, optimizing rack density in compact environments
• Motherboard compatibility: microATX boards for flexible CPU and memory configurations
• Backplane capability: supports 4 full-height add-on cards for expansive I/O and PCI/PCIe expansion
• Power supply: PS2 power supply compatibility for stable, proven power delivery
• Cooling: optional front-mounted two 80mm fans for improved airflow and thermal management

How to install iStarUSA 3U Compact Rackmount Chassis

Step 1 — Prepare the rack and chassis: Ensure your rack space is clean and accessible. Gather the microATX motherboard, backplane, PS2 power supply, PCI/PCIe add-on cards, and necessary cables. Verify the PS2 power supply compatibility with your system’s power requirements.

Step 2 — Mount the motherboard: Install standoffs and align the microATX motherboard with the chassis’ I/O shield. Secure the board using screws designed for the chassis, ensuring the back panel ports remain accessible for external connections.

Step 3 — Install the backplane and add-on cards: Slide the backplane into the designated bay and connect it to the motherboard. Insert up to four full-height add-on cards into the backplane, securing them with screws or brackets as specified by the chassis design.

Step 4 — Install the power supply: Fit the PS2-compatible power supply into the chassis, route cables neatly, and connect power and data lines to the motherboard and backplane as required.

Step 5 — Configure cooling and cabling: If you’re using the optional front 80mm fans, install them in the front panel and route power to them. Organize data and power cables to promote airflow and simplify future maintenance.

Step 6 — Final assembly: Slide the assembled components into the rack, secure the chassis to the rails, attach front I/O cables, and perform a post-installation boot to verify operation and BIOS/firmware recognition of installed cards and devices.

Frequently asked questions

• Q: What motherboard types are supported? A: MicroATX motherboards are supported, offering a balance of expansion and compact form factor for diverse builds.
• Q: How many PCI/PCIe cards can the backplane hold? A: The backplane supports up to four full-height add-on cards, enabling robust expansion for NICs, RAID controllers, and other peripherals.
• Q: Does this chassis include fans? A: Front cooling is optional with two 80mm fans; configurations vary by SKU. Consider adding fans for higher heat-generating components.
• Q: Is the power supply included? A: The chassis is compatible with PS2 power supplies; power supply inclusion depends on the specific SKU and vendor configuration.
• Q: What are the ideal use cases? A: This 3U compact chassis is well-suited for industrial servers, edge computing, small data centers, and rugged applications where space and expansion matter.
