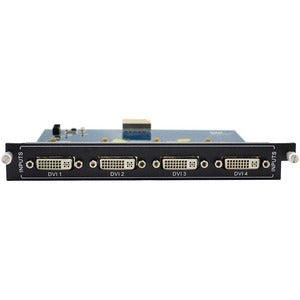

KanexPro 4-Input DVI Card for Modular Matrix

The KanexPro MOD-IN-DVI is a 4-Input DVI module designed to enhance the capabilities of HDMMX modular matrix switchers. This high-bandwidth expansion card is purpose-built for professional AV installations that demand reliable, crisp DVI routing across multiple sources. By adding four native DVI inputs, it lets system integrators scale their input channels to match complex configurations—without compromising signal integrity or the overall performance of the matrix. Whether you’re designing a boardroom, command center, educational facility, or live-event setup, the MOD-IN-DVI delivers the flexibility, reliability, and precision you expect from a KanexPro solution.

• Expanded input capacity for modular matrices: Add four DVI inputs to your HDMMX system, enabling more source options and streamlined routing without replacing existing infrastructure.
• High-bandwidth, full-resolution support: Handles standard high-definition formats up to 1080p or 1920x1200 with consistent signal quality and smooth cross-point switching for rapid source-to-output transitions.
• Modular and scalable design: Designed to integrate with KanexPro’s HDMMX modular matrix switchers, allowing you to increase or reduce input channels as project requirements evolve.
• Full cross-point switching capability: Enables any input to be routed to any output with precise control, enabling complex routing schemes for multi-display environments.
• Reliable ecosystem compatibility: Part of the KanexPro modular ecosystem, optimized for professional deployments with robust build quality and dependable performance in demanding settings.

Technical Details of KanexPro 4-Input DVI Card for Modular Matrix

• Card type: 4-Input DVI module designed for HDMMX modular matrix switchers
• Video interface: DVI inputs that support high-definition video routing
• Input channels: 4 independent DVI inputs
• Resolution support: Full HD up to 1080p and 1920x1200
• Routing capability: Full cross-point switching, enabling any input to any output
• Compatibility: Designed for use with KanexPro HDMMX modular matrix switchers
• Form factor: Modular card that snaps into the HDMMX chassis to extend input capacity
• Reliability: Built for professional environments with robust construction and consistent performance

how to install KanexPro 4-Input DVI Card for Modular Matrix

Installing the MOD-IN-DVI card is a straightforward process designed to minimize downtime and disruption in established systems. Follow these general steps to expand your HDMMX matrix with four additional DVI inputs:

Step 1: Prepare the system. Ensure the HDMMX modular matrix chassis is powered down and safely disconnected from power. Verify that there is an available modular slot within the chassis that supports the MOD-IN-DVI card. Have the appropriate screws or fasteners on hand if your chassis requires them to secure the module in place.

Step 2: Align and insert. Gently align the MOD-IN-DVI card with the available slot in the HDMMX chassis and firmly seating it into the connector. Apply even pressure until the card is fully seated, then secure it with the appropriate mounting mechanism if your system uses screws or latches.

Step 3: Restore power and detect. Reconnect power to the chassis and allow the system to boot. Use the matrix control software or onboard indicators to verify that the new DVI inputs are detected and recognized by the controller.

Step 4: Configure routing. In the matrix management interface, assign the newly added DVI inputs to the outputs required for your deployment. Establish source-to-display mappings, create routing presets, and ensure color formats and timing match your display devices' specifications.

Step 5: Test and validate. Run a full validation of all four DVI inputs across the expected outputs. Confirm that each input delivers stable video without artifacts, ensuring synchronization across the video wall or multi-display setup. Save your configuration and document the new channel map for future maintenance.

Frequently asked questions

Q: What does the KanexPro MOD-IN-DVI card add to a modular matrix system?

A: It adds four native DVI inputs to a KanexPro HDMMX modular matrix, expanding the total number of sources available for routing and display. This makes it easier to accommodate additional video sources without reconfiguring existing infrastructure.

Q: What resolutions are supported by the MOD-IN-DVI card?

A: The card supports full HD resolutions, including 1080p and 1920x1200, enabling high-quality video transmission across compatible displays. This ensures sharp, clear video across standard corporate and AV environments.

Q: Is the MOD-IN-DVI card hot-swappable or does it require system downtime for installation?

A: The card is designed to be added or removed to adjust input channels within a KanexPro HDMMX modular matrix. While many installations aim for minimal disruption, it is typically best practice to power down the chassis before physically installing or removing the module to ensure a clean insertion and to avoid signal interruptions.

Q: Does this card support cross-point switching?

A: Yes. The MOD-IN-DVI card provides full cross-point switching, allowing any of its four inputs to be routed to any output as dictated by the routing matrix software or control system. This enables flexible, dynamic layouts for complex display configurations.

Q: Is the MOD-IN-DVI compatible with other KanexPro matrix products?

A: It is designed to work with KanexPro HDMMX modular matrix switchers, ensuring seamless integration within KanexPro's modular ecosystem and optimized performance in multi-source, multi-display environments.
