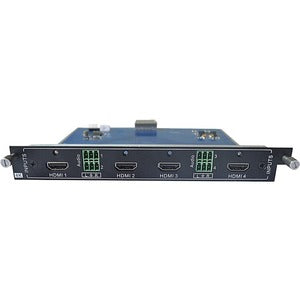

KanexPro MOD-IN-HDTV-4K: 4-Input HDMI Card for Modular Matrix with 4K

The KanexPro MOD-IN-HDTV-4K is a high-performance 4K-compliant HDMI input card designed to slot into KanexPro’s HDMMX Modular Matrix Switchers. Built for professional AV environments, this card enables you to bring in up to four separate HDMI sources with native 4K video capabilities, while seamlessly embedding analog audio into the HDMI stream when needed. Whether you are building an executive boardroom system, digital signage network, or a multi-room AV distribution setup, this modular input card delivers crisp video, robust color depth, and streamlined integration that keeps cables and rack space to a minimum. With support for UHD resolutions, 3D content, and deep color, the MOD-IN-HDTV-4K helps you deliver immersive, synchronized video and audio experiences across your matrix.

• 4K-ready HDMI inputs: Four HDMI input channels per card provide the flexibility to bring in multiple 4K or 1080p sources. The card is designed to handle UHD resolutions, enabling high-detail content, crisp text, and vibrant color reproduction essential for corporate presentations, live events, and digital signage deployments.
• 3D and Deep Color support: In addition to 4K, the MOD-IN-HDTV-4K supports 3D content and up to 48-bit Deep Color at 1080p/60, ensuring smooth, accurate color rendering and broad compatibility with a wide range of source devices and display technologies.
• Analog audio embedding: This input card includes an analog audio embedder capability, allowing you to insert line-level analog audio into the HDMI output stream. This feature simplifies audio routing in environments where external audio sources or room microphones must be integrated into the video signal without extra processing hardware.
• Designed for HDMMX modular matrices: The MOD-IN-HDTV-4K is engineered to work seamlessly with KanexPro HDMMX modular matrix switchers, enabling plug-and-play integration within a scalable AV distribution system. Its form factor is optimized for easy installation inside compatible chassis, with reliable performance tailored to professional installations.
• Professional reliability and flexible deployment: Built for non-stop operation in conference rooms, control rooms, retail spaces, and broadcast environments, this 4-input HDMI card combines robust build quality with straightforward configuration, reducing installation time and post-deployment support.

Technical Details of KanexPro MOD-IN-HDTV-4K

• HDMI inputs: 4 HDMI input channels per MOD-IN-HDTV-4K card, enabling multiple source connections to the modular matrix system.
• Video capabilities: UHD resolutions including 4K (3840x2160) support, with compatibility for 3D content. The card is designed to preserve high image fidelity across supported formats.
• Color depth: Supports up to 48-bit Deep Color at 1080p/60, ensuring rich, accurate color representation for compatible sources and displays.
• Audio features: Analog audio embedding capability to insert analog audio into the HDMI stream, simplifying audio routing within the matrix network.
• System compatibility: Specifically engineered to work with KanexPro HDMMX Modular Matrix Switchers, enabling cohesive, scalable integrated AV systems.
• Card type and deployment: Input card designed for modular matrix chassis, intended for installation within compatible HDMMX systems for easy expansion and source integration.
• Power and connectivity: Powered through the host matrix chassis and relies on the chassis’s power delivery and control software to manage inputs and routing. No separate power supply is required for the card itself beyond the chassis.
• Environmental and reliability notes: Built to endure professional environments with stable performance and straightforward maintenance, reducing downtime in critical presentation or broadcast settings.

How to Install KanexPro MOD-IN-HDTV-4K

• Power down the KanexPro HDMMX modular matrix chassis and unplug it from any power sources. Ensure you follow your facility’s safety and ESD guidelines during installation.
• Open the chassis and locate an available slot that supports MOD-IN-HDTV-4K. Confirm compatibility with your specific HDMMX model to ensure seamless integration.
• Insert the MOD-IN-HDTV-4K card firmly into the designated slot and secure it with the mounting screws or latches provided by the chassis. Verify that the card is seated and locked in place according to the chassis documentation.
• Connect up to four HDMI sources to the card’s HDMI inputs using high-quality HDMI cables. Verify source resolution settings to ensure compatibility with 4K and 1080p/60 as required by your application.
• If you plan to embed analog audio, connect the analog audio sources to the appropriate inputs on the card as specified in the chassis and card documentation. Ensure proper signal levels to avoid clipping or noise in the embedded audio stream.
• Power on the matrix chassis and access the control software or user interface used to configure HDMMX systems. Assign each HDMI input to the desired outputs and enable the analog audio embedding feature where required.
• Perform a test sequence: route each input to a target display, verify video quality at 4K and 1080p/60, and listen for synchronized audio. Check for 3D compatibility if your source includes stereoscopic content and make any necessary timing adjustments within the matrix control panel.
• Document the input-to-output mappings for future reference, label cables for easier maintenance, and save the configuration in the matrix’s profile library to expedite deployment in future projects.

Frequently asked questions

• What resolutions does the MOD-IN-HDTV-4K support? It is designed for 4K UHD content and can handle 4K resolutions, with support for 3D content and up to 48-bit Deep Color at 1080p/60 where applicable in the signal chain. For source devices that output 4K, you can route that content through the card to compatible displays within the HDMMX system.
• How many HDMI inputs does this card provide? The MOD-IN-HDTV-4K provides four HDMI input channels on a single card, allowing you to bring in four separate sources into your modular matrix for routing and processing.
• Can I embed analog audio with HDMI using this card? Yes. The card includes an analog audio embedding option that allows you to insert analog audio into the HDMI stream, facilitating unified video and audio delivery within the matrix network.
• Is this card compatible only with KanexPro HDMMX matrices? The MOD-IN-HDTV-4K is designed to work with KanexPro HDMMX Modular Matrix Switchers. It is intended for use within compatible HDMMX chassis to enable combined video and audio routing across multiple displays or rooms.
• Do I need an external power supply for the card? No external power supply is required for the MOD-IN-HDTV-4K card itself. It receives power from the host HDMMX chassis, which provides the necessary power and control interfaces for operation.
• How should I optimize installation for reliability? Use high-quality HDMI cables, ensure sources are within supported bandwidth, label inputs and outputs, maintain a clean rack with proper cable management, and keep firmware on the matrix chassis up to date. Regularly back up configuration profiles and test after any change to the routing or source devices.
