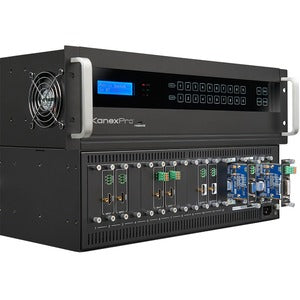

KanexPro FLEX-MMX16: 4K Flexible 16 Input / Output Seamless Matrix Switcher

The KanexPro FLEX-MMX16 is a 4K seamless video modular matrix engineered for professional AV integrators who demand scalable, glitch-free signal routing. With sixteen adaptable PCIe slots, this system empowers you to customize a robust, future-proof backbone that can grow from compact installations to large multi-zone networks. Twelve cards handle input and output duties, while four dedicated video output slots are optimized for use with single 4K HDMI and HDBaseT input/output cards. The result is a modular matrix that delivers pristine picture quality, ultra-low latency, and precise routing across multiple rooms, displays, and endpoints. Whether you are building a corporate headquarters, an academic campus, a command center, or a digital signage ecosystem, FLEX-MMX16 provides the flexibility to define complex signal paths, respond quickly to changing demands, and simplify management through centralized control. Designed to support high-resolution 4K content, robust color accuracy, and seamless transitions, this matrix switcher is a cornerstone for demanding AV deployments where reliability and performance matter most.

• The 4K seamless performance is achieved through a PCIe-based modular architecture that supports high-bandwidth video paths with minimal latency, enabling smooth, glitch-free switching even in dense AV environments.
• Modular expansion with 16 adaptable PCIe slots lets you tailor the system to project scope—populate inputs, outputs, and output-specific cards as your installation grows, without replacing the core chassis.
• Dedicated four-output architecture is optimized for use with single 4K HDMI and HDBaseT input/output cards, delivering stable routing to multiple rooms or zones while preserving image integrity and signal quality.
• Flexible routing and centralized control provide granular management of sources, destinations, and presets. This makes complex AV layouts easier to configure, monitor, and adjust, reducing on-site commissioning time.
• Rugged build and AV-grade reliability ensure consistent performance in professional environments. The system is designed for long-term operation with dependable signal distribution across varied installations and workloads.

Technical Details of KanexPro FLEX-MMX16

• Model: KanexPro FLEX-MMX16 4K Flexible 16 Input / Output Seamless Matrix Switcher
• Channel architecture: 16 adaptable PCIe slots, paired with 12 input/output cards and 4 dedicated video output cards for versatile routing configurations
• Video resolution support: Up to 4K (3840x2160) at 60 Hz with compatible color sampling for pristine 4K image quality
• HDBaseT integration: Includes support for HDBaseT input/output cards to extend distribution range without sacrificing signal fidelity
• Input/output flexibility: Designed to accommodate a mix of HDMI sources and sinks, plus HDBaseT-enabled endpoints for long-distance routing
• Seamless switching: Optimized for glitch-free transitions between sources to maintain professional AV performance during live events or critical presentations
• Control and management: Centralized control options enable routing, source selection, preset management, and status monitoring across the matrix

how to install KanexPro FLEX-MMX16

• Power down the host system and prepare a compatible chassis or enclosure that supports PCIe modular cards, ensuring proper grounding and ventilation.
• Install the sixteen PCIe cards (input/output and dedicated video output cards) into the available slots, following the manufacturer’s guidelines for slot assignment and cooling clearance.
• Physically mount the FLEX-MMX16 in a rack or cabinet, connect the power supply, and verify all ventilation paths to maintain optimal operating temperatures.
• Connect video sources to the appropriate input cards (HDMI sources for 4K paths) and connect displays or HDBaseT endpoints to the corresponding output cards to establish the routing topology.
• Power up the system and use the supplied control software or API to configure routes, presets, and monitoring. Validate each path for resolution, color integrity, and latency, then save your standard operating configurations.

Frequently asked questions

• Q: What is the KanexPro FLEX-MMX16 best suited for? A: It is designed for professional AV installations that require a scalable, modular 4K matrix with 16 inputs/outputs, flexible routing, and the ability to grow over time. Ideal for multi-zone corporate spaces, education campuses, command centers, and digital signage networks.
• Q: How many PCIe slots does FLEX-MMX16 offer and how are they allocated? A: FLEX-MMX16 features sixteen adaptable PCIe slots. Twelve of these are used for input/output cards, while four are dedicated to video output cards, enabling a mix of channel routing and dedicated output paths.
• Q: Does FLEX-MMX16 support 4K content? A: Yes. The system supports 4K video paths up to 60 Hz, providing high-fidelity image quality for contemporary AV sources and displays.
• Q: Can I distribute signals over HDBaseT? A: Yes. The matrix includes HDBaseT input/output card options to extend distribution distances while preserving signal integrity, which is ideal for large rooms or campuses.
• Q: How is control handled? A: Control is centralized via compatible software and APIs, allowing routing, source selection, and preset management to be performed efficiently from a single interface or integrated control system.
