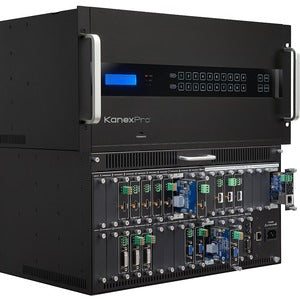

KanexPro 4K Flexible 32-Input / 32-Output Seamless Matrix Switcher

The KanexPro FLEX-MMX32 is a 4K seamless video modular matrix built for demanding AV environments. Engineered around a versatile PCIe-based platform, this system offers a robust, scalable solution for routing multiple video sources to numerous displays with precision and reliability. It features a total of 32 adaptable slots designed to host input, output, and dedicated video output cards, giving integrators the control to tailor configurations for a variety of installations—from corporate conference rooms and education campuses to broadcast facilities and large-scale digital signage networks. With its modular design, the FLEX-MMX32 delivers glitch-free performance, streamlined management, and future-ready expandability for complex AV routing needs.

• 32-slot PCIe-based chassis with 24 IO cards and 8 dedicated video outputs. This flexible architecture lets you mix and match input, output, and specialty cards to fit your exact routing requirements, enabling highly customized video paths without compromising performance or reliability.
• 4K seamless switching for glitch-free AV routing. Designed to deliver smooth, artifact-free video transitions and low-latency routing across multiple sources and destinations, the FLEX-MMX32 is ideal for professional environments where timing and image integrity matter.
• Dedicated outputs for HDMI and HDBaseT cards. The system includes 8 dedicated video outputs, specifically optimized for use with single 4K HDMI and HDBaseT output cards, simplifying long-distance distribution and secure, clean, matrix-driven playback.
• Modular scalability for growing AV deployments. As an adaptable matrix, it accommodates evolving needs—add more inputs, outputs, or specialized video processing cards over time to keep pace with expanding projects and new endpoints.
• Designed for system integrators seeking reliable performance and flexible configuration. The FLEX-MMX32 provides a professional-grade platform with a focus on reliability, ease of integration, and future-proof upgrade paths for complex installations.

Technical Details of KanexPro FLEX-MMX32

• Model: KanexPro FLEX-MMX32
• Type: 4K seamless video modular matrix switcher
• Chassis: 32 adaptable PCIe slots (configurable with input, output, and dedicated video output cards)
• Input/Output cards: 24 slots allocated to input/output functionality, with 8 dedicated video output slots for use with single 4K HDMI and HDBaseT output cards
• Video resolution: Supports 4K video routing, enabling high-resolution distribution to multiple displays
• Output options: 8 dedicated outputs designed for compatibility with HDMI and HDBaseT cards, facilitating long-distance distribution and flexible end-point connections
• Control and management: Software-driven routing and configuration designed for professional AV systems and system integrators

How to install KanexPro FLEX-MMX32

Installing the FLEX-MMX32 begins with careful planning of your routing matrix. Start by mapping out which sources will be routed to which displays and identify where HDMI and HDBaseT endpoints will be placed. Ensure you have sufficient space for the modular chassis, appropriate cooling, and the power supply requirements required by the cards you intend to install. Follow these high-level steps to get up and running:

• Power down your rack and mount the FLEX-MMX32 chassis in a secure equipment rack. Confirm mounting rails, ventilation, and clearance for heat dissipation around the unit.
• Install the PCIe input, output, and dedicated video output cards into the available slots. Reserve slots for future expansion as needed so you can scale without reworking existing wiring.
• Connect your video sources to the designated input cards and connect your display endpoints (HDMI or HDBaseT) to the corresponding output cards. Use high-quality shielded cables to preserve signal integrity at 4K resolutions.
• Power up the system and access the control interface to configure routing maps. Define source-to-display paths, assign cards to specific zones, and create presets for repeatable deployments.
• Test each route at full resolution, verifying continuity, color accuracy, and timing across all outputs. Save configurations, back up system profiles, and document your rack layout for future maintenance.

Once configured, the KanexPro FLEX-MMX32 provides a centralized, scalable solution for managing complex AV routing. Its modular approach makes it easier to reconfigure in response to changing room layouts, new endpoints, or shifts in presentation patterns, while maintaining the performance needed for 4K delivery and synchronized playback across multiple displays. For installers, this means faster deployments, simpler upgrades, and long-term reliability in mission-critical environments.

Frequently asked questions

• What is the KanexPro FLEX-MMX32? A 4K seamless video modular matrix switcher designed with 32 adaptable PCIe slots (24 cards for input/output and 8 dedicated video output cards) to provide flexible routing for professional AV installations.
• How many inputs and outputs does it support? The system offers 32 input/output card slots, enabling a broad matrix of source-to-display paths through modular cards, plus 8 dedicated outputs for HDMI and HDBaseT cards.
• What video formats and resolutions are supported? It is designed for 4K video routing, delivering seamless 4K distribution across connected endpoints and displays.
• Is it compatible with HDBaseT? Yes, the architecture includes outputs suitable for HDBaseT cards, enabling long-distance, high-quality video distribution.
• Who should use this product? System integrators, AV installers, and facilities managers working on large-scale, multi-zone AV deployments requiring flexible, scalable routing and reliable 4K performance.
• How do I start configuring routes? After installation, access the control software to define input-to-output mappings, create routing presets, and adjust timing and display assignments to fit the venue.
