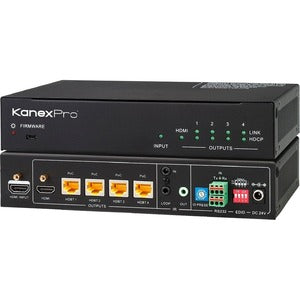

KanexPro 4K HDBaseT 1x4 Distribution Amplifier up to 230 feet (70m)

The KanexPro 4K HDBaseT 1x4 Distribution Amplifier is a compact, half‑rack width solution that takes one HDMI source and delivers pristine Ultra HD video to four displays over a single CAT6 cable. Designed for classrooms, conference rooms, and digital signage, it also supports daisy‑chain configurations to drive up to 16 displays without compromising signal integrity. Simplified yet powerful, this distribution amplifier makes multi‑screen viewing effortless while fitting neatly into standard AV racks.

• 1x4 HDBaseT distribution from a single HDMI input — transmit high‑quality 4K video and audio to four displays over a single CAT6 cable.
• Daisy‑chain up to 16 displays — extend your setup by linking multiple KanexPro units, enabling expansive multi‑screen walls without sacrificing performance.
• Compact half‑rack width design — space‑saving enclosure that fits neatly into any AV rack or under‑table installation.
• Plug‑and‑play installation with CAT6 cabling — quick setup for classrooms, meeting rooms, retail displays, and digital signage environments.
• Supports Ultra HD 4K video — delivers crisp, vibrant 4K content to multiple displays from a single source.

Technical Details of KanexPro 4K HDBaseT 1x4 Distribution Amplifier

• HDMI Input 1 x HDMI Type A input.
• HDBaseT Outputs 4 x HDBaseT (RJ45) outputs.
• Maximum Resolution 4Kx2K @ 60Hz supported on all outputs.
• Distance Up to 70 m (230 ft) over CAT6 for 4K video.
• Daisy‑Chaining Supports daisy‑chaining up to 16 displays when combined with compatible receivers.
• Power External power supply required.
• Chassis Half‑rack width enclosure for compact installations.

How to install KanexPro 4K HDBaseT 1x4 Distribution Amplifier

Install in a few straightforward steps to set up a robust multi‑display system.

• Connect your HDMI source to the HDMI input on the distributor using a standard HDMI cable.
• Connect four HDMI cables from the distributor's HDBaseT outputs to HDMI displays or HDBaseT receivers via CAT6 cabling.
• Run CAT6 cables to each display location, ensuring runs stay within the 70 m (230 ft) limit for 4K video.
• If you plan to daisy‑chain, connect additional KanexPro units or compatible receivers to create a larger display network, following the device’s daisy‑chain configuration.
• Plug in the external power supply, power on all devices, and select the appropriate input sources on each display.

Frequently Asked Questions

• Q: What is the maximum transmission distance for 4K content? A: Up to 70 meters (230 feet) over CAT6 cables per output.
• Q: Can I drive more than four displays from a single unit? A: Yes, by daisy‑chaining to additional KanexPro receivers or distribution amplifiers, up to 16 displays total with compatible equipment.
• Q: What resolutions are supported? A: Ultra HD 4K (3840x2160) at 60 Hz is supported on all outputs, depending on cable length and display compatibility.
• Q: Does this require an external power supply? A: Yes, it requires an external power adapter to operate.
• Q: Do I need HDCP compliance? A: Ensure your source and displays are HDCP‑compliant; the distributor passes HDCP content to connected displays as supported by HDBaseT technology.
