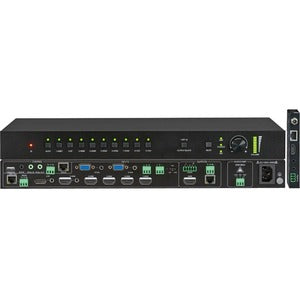

KanexPro 9-Input 4K System Switcher & Scaler w/ 4K HDBaseT Input/ Output

The KanexPro SW-HDSC914K is a premier 9-input switcher and presentation scaler designed for high-end AV setups in corporate, education, and media environments. Built to handle true 4K signal paths, it enables seamless switching between diverse sources while preserving image quality across displays. With a flexible mix of HDMI, VGA, DisplayPort, and HDBaseT connectivity, this system switcher delivers reliable performance for conference rooms, lecture halls, and multimedia studios. The device’s scaling capability ensures each source is delivered at the optimum resolution for your display, whether you’re presenting in 4K or downscaling to match legacy projectors. Two mirrored outputs offer synchronized content across multiple screens, making it ideal for immersive presentations and consistent messaging in multi-display configurations. In short, the SW-HDSC914K is a robust, scalable solution for modern presentation environments that demand crisp visuals, flexible inputs, and dependable control.

• 9-input versatility: 5 HDMI, 2 VGA, 1 DisplayPort, and 1 HDBaseT input ensure a wide range of sources—from laptops and media players to legacy equipment—can be routed with ease.
• True 4K processing: Supports input and output resolutions up to 3840x2160p, preserving detail and color accuracy across high-resolution displays.
• Dual mirrored outputs: Simultaneous HDMI and HDBaseT outputs can mirror the same content, enabling synchronized displays in rooms with multiple projectors or screens.
• Built-in presentation scaler: Automatically upscales or downscales content to match connected displays, minimizing black bars and ensuring seamless visuals in mixed-display environments.
• HDBaseT integration with PoH: Power over HDBaseT and flexible long-reach transmission simplify installation, reducing cabling clutter in conference spaces and classrooms while maintaining signal integrity.

Technical Details of KanexPro SW-HDSC914K

• 9-input switcher with a combination of 5 HDMI inputs, 2 VGA inputs, 1 DisplayPort input, and 1 HDBaseT input for versatile source connections.
• 2 simultaneous mirrored outputs: one HDBaseT output and one HDMI output, enabling synchronized display across multiple destinations.
• 4K input/output capability: supports resolutions up to 3840x2160p for high-detail presentation content.
• Integrated presentation scaler: enables on-the-fly resizing of video signals to fit diverse display panels without manual re-encoding.
• HDBaseT powered connection: allows power delivery over HDBaseT, simplifying installation by reducing the number of required power sources on remote displays.
• Flexible routing and control: designed for straightforward operation in boardrooms, classrooms, and event spaces, with intuitive switching between inputs and quick access to scaling settings.

How to install KanexPro SW-HDSC914K

• Plan your source placement and determine which inputs will be used for frequently accessed devices. Connect laptops, media players, or other sources to the appropriate HDMI, VGA, DisplayPort, or HDBaseT inputs on the switcher.
• Connect the display(s) to the two available outputs: one HDMI output and one HDBaseT output. Ensure that displays are capable of handling up to 4K resolutions or are properly scaled by the unit’s internal scaler.
• Power the KanexPro SW-HDSC914K and configure the HDBaseT link to the remote displays if required. Use the device’s front-panel controls or a compatible control system to switch inputs and adjust scaling as needed.
• Adjust EDID management and scaling settings to match the capabilities of your displays. This ensures a clean, artifact-free image when switching between sources with different resolutions or aspect ratios.
• Test each input by presenting different content (4K video, office documents, web pages) and verify that the mirrored outputs stay synchronized. If you encounter any discrepancies in color or timing, re-check HDMI/VGA/DisplayPort connections and verify that the sources are configured for the target resolution.

Frequently asked questions

• Q: How many inputs does the KanexPro SW-HDSC914K have and what types are they?

  A: It features 9 inputs in total: 5 HDMI, 2 VGA, 1 DisplayPort, and 1 HDBaseT input for versatile source connectivity.

• Q: What resolutions are supported by this system switcher?

  A: The device supports true 4K processing with input and output resolutions up to 3840x2160p, ensuring crisp, detailed visuals on compatible displays.

• Q: Can the outputs be mirrored?

  A: Yes. The KanexPro SW-HDSC914K provides two simultaneous mirrored outputs over HDMI and HDBaseT, ideal for multi-display setups that require synchronized content.

• Q: Does the unit include scaling capabilities?

  A: Yes, it includes a built-in presentation scaler that can upscale or downscale content to fit the connected displays, minimizing image distortion and ensuring consistent framing across screens.

• Q: Is power delivered over HDBaseT?

  A: The system supports power over HDBaseT (PoH) on the HDBaseT link, simplifying installation by reducing the number of power outlets needed near distant displays.

• Q: Is this suitable for boardrooms, classrooms, and event spaces?

  A: Absolutely. With multiple input types, 4K capability, scalable outputs, and long-reach HDBaseT support, it’s designed for professional AV deployments in a variety of environments.
