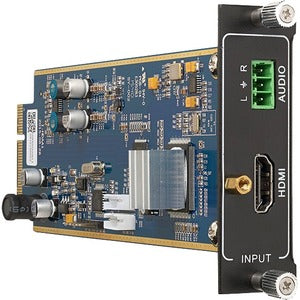

KanexPro FLEX-IN-HD: One-Input HDMI 1080p Card with Audio

Introducing the KanexPro FLEX-IN-HD, a seamless one-input HDMI card with PCM analog audio designed for FLEX-MMX12 chassis. This compact yet powerful module is engineered for professional AV workflows, delivering reliable video performance at 1080p/60 HD and flexible PC resolutions up to 1920x1200@60Hz. Built to exacting standards, the FLEX-IN-HD blends dependable signal handling with streamlined EDID management and robust HDCP compliance, ensuring compatibility across a wide range of displays, sources, and environments. Whether you’re building a compact broadcast rig, a corporate presentation system, or a digital signage network, this KanexPro card helps you capture, route, and display high-quality video with ease and confidence.

• One HDMI input delivers clean, reliable video from a single source, supporting 1080p/60 HD and PC resolutions up to 1920x1200@60Hz. This makes it ideal for multimedia presentations, live switching, conference rooms, and compact broadcast setups. The card mounts within the FLEX-MMX12 chassis for a tidy, modular installation, enabling scalable AV configurations as your needs evolve.
• PCM analog audio support provides synchronized audio with video, enabling teams to route or capture clean audio signals alongside the HDMI feed. This capability is perfect for environments where embedded HDMI audio needs to be processed by external audio systems or recording devices, ensuring comprehensive AV performance without additional adapters.
• HDCP compliant design protects content while maintaining broad compatibility with protected sources. This is essential when working with premium media, streaming sources, or licensing-restricted content, giving you confidence that your devices will cooperate without content protection conflicts.
• EDID management from the switcher simplifies source/display compatibility, reducing guesswork when pairing displays with sources. The FLEX-IN-HD negotiates display capabilities automatically, so you get the best possible image quality at your target resolution without manual EDID poking or frequent reconfigurations.
• Designed for FLEX-MMX12 chassis, the card offers a plug-and-play installation with a minimal footprint and robust thermal and electrical integration. Its modular design supports quick swaps, easy upgrades, and networked AV environments where space, reliability, and streamlined maintenance matter most.

Technical Details of KanexPro Flexible One Input HDMI 1080p Card with Audio

• Chassis compatibility: FLEX-MMX12
• Input: 1 x HDMI input
• Video resolutions: 1080p/60 HD; PC resolutions up to 1920x1200@60Hz
• HDCP: HDCP compliant
• Audio: PCM analog audio (embedded or passthrough as configured by the system)
• EDID management: EDID management from the switcher to ensure seamless source compatibility
• Applications: Ideal for professional AV switchers, multi-source environments, digital signage, and compact broadcast setups

how to install KanexPro FLEX-IN-HD

• Prepare the FLEX-MMX12 chassis: power down the system, disconnect all cables, and check that there is a free expansion slot ready for the KanexPro card.
• Insert the KanexPro FLEX-IN-HD into the appropriate PCIe or mezzanine slot inside the FLEX-MMX12 chassis, ensuring the connector seats firmly and the card sits flush with the backplane. Secure the card with the screw or latch specified for your chassis model.
• Connect your HDMI source to the card’s HDMI input using a high-quality HDMI cable. If you require analog audio, verify whether PCM audio routing is configured through the switcher or external audio equipment and connect accordingly.
• Power on the chassis and access the switcher or management interface to verify recognition of the FLEX-IN-HD. Use the EDID management settings to align the source with the display capabilities, ensuring optimal resolution and color settings.
• Test the signal by selecting the source in your workflow, then confirm video at 1080p/60 and audio playback. If needed, adjust EDID or resolution settings in the switcher to resolve any compatibility issues or to optimize performance for your display environment.

Frequently asked questions

• Q: What is the KanexPro FLEX-IN-HD? A: It is a single-input HDMI 1080p card with PCM analog audio designed for the FLEX-MMX12 chassis, enabling high-quality video and audio integration in modular AV systems.
• Q: What resolutions does it support? A: It supports video up to 1080p/60 HD and PC resolutions up to 1920x1200@60Hz, making it versatile for both multimedia playback and computer-based sources.
• Q: Is it HDCP compliant? A: Yes, the card is HDCP compliant, ensuring compatibility with protected content and licensed sources.
• Q: Does it manage EDID from the switcher? A: Yes, EDID management is supported from the switcher to help guarantee source/display compatibility and stable performance across devices.
• Q: Which chassis is required for this card? A: The KanexPro FLEX-IN-HD is designed for use with the FLEX-MMX12 chassis, offering a modular and scalable solution for professional AV installations.
