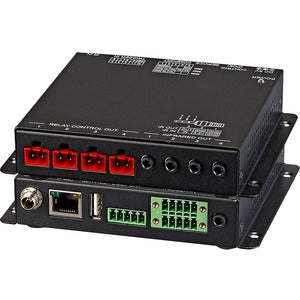

KanexPro CR-3XCONTROL: Integrated IR/RS-232 and Relay Controller

The KanexPro CR-3XCONTROL is a versatile central control system engineered to streamline the operation of a wide range of AV devices. Designed to handle infrared (IR), RS-232, and relay-based sources, this controller brings together disparate components such as projectors, DVD players, displays, and other AV equipment under a single, cohesive command framework. It is built to simplify complex sequences, reduce setup time, and deliver repeatable, reliable performance in classrooms, meeting rooms, boardrooms, and home theaters. With its robust feature set, the CR-3XCONTROL helps AV technicians and integrators deliver professional, professional-grade control that is both flexible and scalable for growing setups.

• Eight external trigger connections directly activate 8 of 16 total user-defined macro events, enabling quick, reliable execution of multi-device sequences with a single action.
• Multi-network control supports IR, RS-232, and relay-based devices, allowing you to command projectors, DVD players, displays, receivers, and other AV sources from one centralized hub.
• Macro automation for streamlined operation programs complex, multi-step actions into concise macros, so a single button press powers on equipment, selects inputs, adjusts volume, starts playback, or runs a pre-defined presentation routine.
• Installation-friendly design tailored for AV racks and cabinet mounting, with clear wiring options and a compact footprint that fits neatly into standard equipment racks for clean, professional installations.
• Future-proof with scalable macro capacity accommodates up to 16 macros, giving you room to expand as your AV environment grows or evolves over time.

Technical Details of KanexPro CR-3XCONTROL

• Control methods: IR, RS-232, and relay outputs provide flexible, multi-modal device control across a variety of AV sources.
• Macro capacity: 16 user-defined macro events, enabling sophisticated automation sequences without constant hand-assembly of commands.
• External triggers: 8 dedicated trigger inputs that map to macro actions, enabling quick, physical or sensor-based activation of routines.
• Target devices: Designed to manage projectors, DVD players and other IR/RS-232/relay-based sources, supporting common AV workflows in education and business environments.
• Central control philosophy: A single hub to orchestrate diverse devices, reducing clutter and improving reliability in complex AV racks and install environments.

How to install KanexPro CR-3XCONTROL

• Plan and map your devices: Identify the projectors, players, displays, and other equipment you want to control, and decide which macro sequences will streamline your most frequent tasks.
• Prepare a safe installation area: Mount the CR-3XCONTROL in a standard AV rack or on a stable shelf within easy reach of the equipment it will control, ensuring proper ventilation and cable access.
• Connect IR components: Attach IR emitters and receivers as required for the devices in your system, ensuring proper line-of-sight and placement for reliable IR control.
• Wire RS-232 devices: Run RS-232 cables to compatible devices, following any manufacturer-recommended baud rate and handshake settings to ensure robust serial communication.
• Attach external triggers: Connect the eight external trigger inputs to their corresponding sources (sensors, buttons, or control panels) and map each trigger to the appropriate macro action.
• Program macros: Use the controller’s configuration interface to define up to 16 macros, assign corresponding device actions (IR, RS-232, relay), and tune timing to fit your installation needs.
• Test and refine: Run each macro sequence in a controlled test to verify device responsiveness, adjust timing gaps, and confirm that the entire automation workflow behaves as intended.

Frequently asked questions

• What can the KanexPro CR-3XCONTROL manage? It is designed to control IR, RS-232, and relay-based sources, including projectors, DVD players, displays, and other AV devices that support these interfaces.
• How many macros does it support? The controller supports up to 16 user-defined macro events, enabling you to bundle multiple actions into a single trigger.
• How many external triggers are available? There are eight external trigger connections that can activate macros, providing flexible integration with external panels, sensors, or control interfaces.
• Can IR, RS-232, and relay controls be used together? Yes. The CR-3XCONTROL is designed to orchestrate IR, RS-232, and relay-based commands within the same automation workflow for cohesive operation.
• Is installation suitable for classrooms and boardrooms? The central control design is well-suited for educational and corporate environments where reliable, repeatable AV control is essential, helping reduce setup time and user error.
