KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set

Transform your living room, classroom, or boardroom into a sleek, modern AV space with the KanexPro WP-EXTHDBTKIT. This US Decora style single-gang HDMI 2.0 wall plate transmitter paired with a matching HDBaseT receiver delivers high-performance video and audio over a single CAT5e/6/6a cable up to 230 feet (70 meters). Designed for clean, professional installations, this kit brings 4K60 video, infrared (IR) control, and Power over Cable (POC) to the receiver, eliminating messy power bricks while preserving the aesthetic of a wall-mounted setup. Whether you’re sharing a laptop, Blu-ray player, or a 4K media streamer, KanexPro provides a reliable, future-proof solution that blends seamlessly into any décor.

• Elegant, space-saving wall plate design: A US Decora style single-gang transmitter keeps your installation tidy and professional. The compact form factor fits standard wall boxes, hiding cables behind the wall while maintaining a clean, low-profile look in living rooms, classrooms, and conference spaces.
• Crystal-clear 4K HDMI 2.0 performance: The transmitter supports HDMI 2.0 bandwidth, enabling 4K at 60 Hz with broad color depth (4:4:4) and HDR compatibility. This ensures lifelike video detail and vibrant color across compatible displays, Blu-ray players, and streaming boxes without lag or dropouts.
• Reliable long-reach delivery via HDBaseT: Extend a single HDMI source over CAT5e/6/6a to a display up to 70 meters (230 feet) away with HDBaseT technology. The result is a robust, reliable signal that remains high-quality even across sizable rooms or lecture halls, with reduced cable clutter compared to multiple dedicated runs.
• Integrated IR control and device compatibility: IR pass-through lets you control the source device from the display area, so you can pause, play, or navigate without approaching the source. This feature is ideal for wall-mounted TVs, projector setups, or mounted media players where convenient remote access matters.
• Power over Cable (POC) for streamlined installation: The receiver is powered via the CAT cable from the transmitter, eliminating the need for a separate power supply at the receiver end. This simplifies installation, reduces cable clutter, and preserves the sleek wallplate aesthetic for a polished, professional look.

Technical Details of KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set

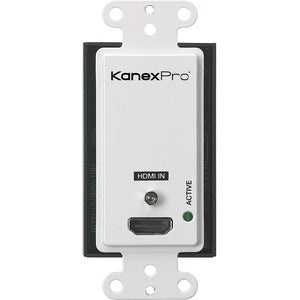

• Transmitter: US Decora style single-gang HDMI 2.0 wall plate with HDMI input for connecting source devices such as laptops, Blu-ray players, or 4K media players.
• Receiver: HDBaseT-enabled receiver included; provides the display connection and supports IR pass-through for remote control of the source.
• Transmission distance: Extends HDMI over CAT5e/6/6a up to 70 meters (230 feet) with HDBaseT, delivering a stable, high-quality signal across typical room sizes and larger venues.
• Video support: HDMI 2.0 bandwidth, capable of 4K60 (3840x2160) with 4:4:4 color, along with HDR compatibility for enhanced dynamic range and color accuracy on modern displays.
• Audio and HDCP: Supports modern audio formats and HDCP 2.2 for protected content, ensuring compatibility with contemporary 4K sources and displays.
• IR control: Infrared pass-through enables convenient remote operation of the source device from the display location, improving usability in wall-mounted or conference-room setups.
• POC (Power over Cable): The receiver is powered through the CAT cable from the transmitter, removing the need for a separate power adaptor at the receiver end and simplifying installation.
• Cable compatibility: Uses standard CAT5e/6/6a cabling, making it easy to source and install with common network cable supplies.
• Mounting and installation: Designed for quick installation in a standard wall box with a clean, professional finish; ideal for retrofit or new-build projects seeking a tidy, unobtrusive AV solution.

how to install KanexPro Single HDMI 2.0 Wallplate over HDBaseT 70M w/ IR & POC Receiver Set

• Plan the installation location for the transmitter in a standard wall box and determine the best route for the CAT6/6a run to the display location. Ensure the CAT cable path is free from excessive bending and interference.
• Power off all connected equipment. Remove the faceplate from the wall box to access the transmitter’s HDMI input and the receiver’s HDBaseT/HDMI outputs.
• Connect the HDMI source (laptop, Blu-ray, or 4K media player) to the HDMI input on the transmitter. Use high-quality HDMI cables to preserve signal integrity, especially for 4K60 content.
• Run a CAT5e/6/6a cable from the transmitter’s HDBaseT output to the receiver’s HDBaseT input, ensuring the run length does not exceed 70 meters (230 feet) for reliable performance.
• Connect the HDMI output on the receiver to the display or projector. If using the IR control feature, connect any IR emitter or receiver peripherals as instructed by the kit’s setup guide.
• Take advantage of Power over Cable (POC): if supported by your specific setup, verify that the transmitter is supplying power to the receiver over the CAT cable, eliminating the need for a separate power supply at the receiver end.
• Power on the source and display. Use the display’s input selector to view the HDMI signal from the transmitter. Confirm video and audio are correctly transmitted and that the IR remote can control the source from the display location.
• Optional: configure any EDID or resolution settings on the source to ensure optimal compatibility with the connected display, particularly for 4K content. Test HDR, color, and audio formats to ensure a consistent viewing experience.

Frequently asked questions

• What is the maximum transmission distance? The KanexPro wallplate set supports HDMI transmission over HDBaseT up to 70 meters (230 feet) using CAT5e/6/6a cabling, making it suitable for medium to large rooms and conference spaces.
• Does it support 4K video? Yes. The system is designed to handle HDMI 2.0 bandwidth, delivering 4K at 60 Hz with color 4:4:4 and HDR compatibility for a vivid, immersive viewing experience.
• Is power required at the receiver end? No. The receiver is Power over Cable (POC) powered from the transmitter, simplifying installation and reducing cable clutter.
• Can I control the source device from the display area? Yes. The kit includes IR pass-through, allowing you to use a remote from the display location to operate the source device without needing to approach it directly.
• What devices can I connect? The transmitter accepts a variety of HDMI sources such as laptops, Blu-ray players, streaming devices, and other HDMI-equipped media players, making it versatile for home theaters, classrooms, and corporate spaces.
• Is HDCP 2.2 supported? Yes. The system is designed to support HDCP 2.2 for protected 4K content, ensuring compatibility with modern 4K devices and streaming services.
