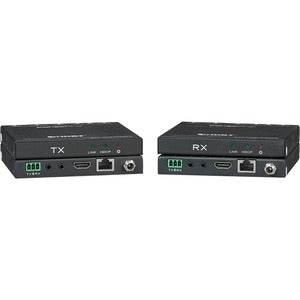

KanexPro UltraSlim 4K/30 HDMI Extender Over HDBaseT — 70m (230ft)

Meet the KanexPro EXT-HDBT70M UltraSlim HDMI Extender, a compact, high-performance solution designed for demanding AV deployments where distance, reliability, and image fidelity matter. This HDBaseT extender set includes a transmitter and receiver that work together to carry uncompressed HDMI video and audio, along with control signals, over a single CAT5e or CAT6a cable. With support for 4K at 30 Hz and 1080p, HDCP 2.2 compliance, and a sleek, space-saving form factor, it’s ideal for boardrooms, classrooms, digital signage, home theaters, and residential or light commercial installations where a clean, low-profile installation is essential. Whether you’re distributing a documentary from a Blu-ray player to a distant display, mirroring a laptop presentation across a conference room, or delivering multi-media content to a wall display, this extender brings high-quality video to the far end with minimal setup and maximum reliability.

• Uncompressed HDMI video and audio over a single CAT5e/CAT6a cable, delivering 4K at 30 Hz and 1080p with pristine image fidelity across distances up to 70 meters (230 feet).
• UltraSlim transmitter and receiver units designed for discreet placements behind displays, inside wall boxes, or in compact AV racks, reducing clutter and enabling clean, professional installs.
• HDBaseT technology consolidates video, audio, control signals, and power delivery over one high-quality cable, simplifying cabling and minimizing installation time.
• HDCP 2.2 compliant to ensure secure playback of protected content from Blu-ray players, streaming devices, PCs, and other high-definition sources without compatibility concerns.
• Plug-and-play installation with standard HDMI connections and included power adapters for both transmitter and receiver—no complex configuration required in most setups.

Technical Details of KanexPro UltraSlim 4K/30 HDMI Extender Over HDBaseT

• Extender type: HDBaseT transmitter and receiver kit for HDMI distribution
• Video support: Uncompressed HDMI signals up to 4K/30 Hz and 1080p
• Transmission distance: Up to 70 meters (230 feet) over CAT5e/CAT6a cable
• Standards: HDBaseT technology with HDCP 2.2 compliance for protected content
• Cabling: Uses a single CAT5e or CAT6a cable to carry video, audio, and control data
• Power: External adapters required for both TX and RX units (included with kit)
• Form factor: UltraSlim design optimized for concealed mounting behind displays or in compact enclosures

How to Install KanexPro UltraSlim 4K/30 HDMI Extender Over HDBaseT

• Position the transmitter near your HDMI source (Blu-ray player, computer, streaming device) and connect the source’s HDMI output to the TX HDMI input. Attach the TX power adapter to supply the unit with power.
• Run a single CAT5e/CAT6a cable from the transmitter location to the display area where you will place the receiver.
• Connect the CAT5e/CAT6a cable to the RX HDMI input, then connect the RX HDMI output to your display or projector with another HDMI cable. Attach the RX power adapter to power the receiver.
• Power on all devices and verify that the link between TX and RX is established. If the display does not automatically select the proper resolution, adjust the source or display settings to 4K/30 Hz or 1080p, depending on content and display capabilities.
• Test the setup with representative content to confirm video and audio quality across the full distance. If needed, swap to a different CAT cable or re-route to ensure the signal remains stable.

Frequently asked questions

• Q: What resolutions does the KanexPro UltraSlim HDMI Extender support?
• A: It supports uncompressed HDMI video up to 4K at 30 Hz and 1080p, with reliable audio transmission across the extended distance.
• Q: How far can the signal be extended?
• A: Up to 70 meters (230 feet) over a single CAT5e or CAT6a cable, depending on cable quality and installation conditions.
• Q: Does it require power supply?
• A: Yes. Both transmitter and receiver units require power via included adapters for reliable operation.
• Q: Is HDCP 2.2 supported?
• A: Yes. The extender is HDCP 2.2 compliant, ensuring compatibility with protected 4K content across displays and sources.
• Q: Is installation plug-and-play?
• A: For most setups, yes. It is designed for straightforward, plug-and-play installation, with resolution adjustments managed on the source or display if necessary.
• Q: Can I use this extender for advanced control or additional devices?
• A: The HDBaseT architecture supports integrated control signals; however, for complex control systems, verify compatibility with your specific devices and, if needed, consult the installation guide for EDID and control options.
