KanexPro VGA 1x1 Extender over CAT5e/6 with Audio — Up to 1,000 ft (300 m)

Upgrade any video distribution setup with the KanexPro VGA 1x1 Extender over CAT5e/6 with Audio. This compact extender brings high-resolution VGA video and stereo audio across long distances using a single CAT5e/6 cable, simplifying cabling and cost. Perfect for classrooms, conference rooms, control rooms, digital signage, and houses of worship, it makes it easy to place your source far from the display while maintaining sharp images, synchronized sound, and reliable performance. The transmitter captures VGA video and audio from your source and transmits them to the remote receiver, which outputs VGA to your display and passes through the audio to speakers. Because the system uses standard RJ-45 connections and a single cable, installation is quick and scalable, with the ability to add more displays or extend your network without complex infrastructure. The receiver features a dedicated gain and peaking rotary switch that lets you fine-tune brightness and skew over long cable runs, ensuring consistent image quality even in larger rooms or across multiple zones. With KanexPro, you get a robust, industry-standard extension solution that preserves image fidelity and audio clarity while reducing clutter and cost.

• Transmits high-resolution VGA signals and stereo audio over a single CAT5e/6 cable for streamlined routing and minimal cable clutter.
• Supports remote distances up to 1,000 ft (300 m) between transmitter and receiver, preserving image clarity and audio fidelity across rooms, auditoriums, or digital signage environments.
• Receiver includes a dedicated gain and peaking rotary switch to adjust brightness and skew, enabling precise image alignment and performance over long cable runs.

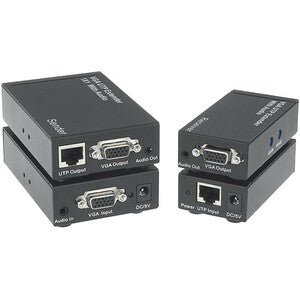

• Includes transmitter and receiver units designed for plug-and-play installation with standard RJ-45 cabling on both ends, reducing setup time and complexity.
• Ideal for classrooms, conference spaces, retail environments, and multi-display installations where reliable VGA plus audio distribution is required over a single UTP cable.

Technical Details of KanexPro VGA 1x1 Extender

• Transmission: VGA video plus stereo audio over a single CAT5e/6 cable
• Distance: Up to 1,000 ft (300 m) between transmitter and receiver
• Video resolution: Supports high-resolution VGA signals (exact resolutions may vary by source and display)
• Audio: Stereo audio passthrough
• Connectors: RJ-45 for both ends; VGA and power connections as required by the kit
• Power: External power supply required for both transmitter and receiver
• Includes: Transmitter unit, receiver unit, power adapters, and necessary mounting hardware
• Gain/Skew control: Separate rotary switch on the receiver to adjust brightness and skew for long-distance compensation

How to install KanexPro VGA 1x1 Extender

Install the KanexPro VGA 1x1 Extender quickly and with minimal setup, converting a standard VGA source into a reliable long-distance distribution solution using a single CAT5e/6 cable. Begin by planning your installation path, identifying a location near your VGA source (computer, media player, or presentation device) and near the display or displays you wish to drive.

• Connect the transmitter to the VGA output of your source device using a standard VGA cable. If your source provides embedded audio, connect its stereo line-out or headphone output to the transmitter's associated audio input as specified in the user manual.
• Connect a single CAT5e/6 cable from the transmitter's RJ-45 output port to the receiver's RJ-45 input port. Ensure the cable runs are within recommended distance and avoid excessive physical stress or interference.
• At the display end, connect the receiver to the monitor or projector with a VGA cable. If you have external speakers or an audio system, connect the receiver's audio output to the speakers as appropriate to route the synchronized stereo audio with the video.
• Plug in the power adapters for both transmitter and receiver, then power them on. Use the gain and peaking rotary control on the receiver to fine-tune brightness and skew to compensate for cable length and display characteristics.
• Test the setup by playing content from the source and adjusting the receiver’s gain/peaking until image brightness is consistent across the screen and the color alignment matches your display. If you experience any latency or color discrepancies, recheck cable routing and confirm both units are connected to compatible VGA sources and displays.

Frequently asked questions

• Q: What is the maximum distance the KanexPro VGA 1x1 Extender can cover? A: It supports remote distances up to 1,000 ft (300 m) between the transmitter and receiver over a single CAT5e/6 cable.
• Q: Does the extender carry stereo audio? A: Yes, it carries stereo audio alongside the VGA video signal, enabling synchronized audio playback at the display.
• Q: Are there controls to compensate for long cable runs? A: Yes. The receiver includes a separate gain and peaking rotary switch used to adjust brightness and skew, helping preserve image quality over long distances.
• Q: What equipment is included? A: The kit typically includes a transmitter unit, a receiver unit, power adapters, and necessary mounting hardware. No additional drivers are required for basic operation.
• Q: Do I need special cables or extra equipment? A: You only need a single CAT5e/6 cable between the transmitter and the receiver. Standard VGA cables connect from the transmitter to the source and from the receiver to the display.
• Q: Is it compatible with all VGA sources and displays? A: The extender is designed to work with standard VGA sources and displays. For best results, ensure both source and display support standard VGA resolutions and that the distance and cable quality meet recommended guidelines.
