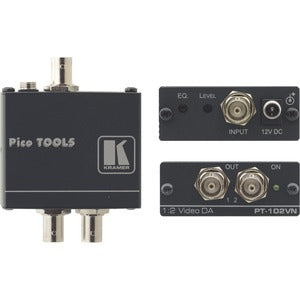

Kramer Pt-102Vn 1:2 Composite Video Distribution Amplifier

The Kramer Pt-102Vn is a versatile 1:2 distribution amplifier designed to take a single video input and deliver two identical, high-fidelity outputs. Built to handle both composite video (CVBS) and SDI signals, this compact device emphasizes signal integrity through careful buffering and isolation, making it an ideal choice for classrooms, conference rooms, or any setup that requires reliable, extended video distribution. Whether you are expanding a small AV system, broadcasting to multiple displays, or routing a video feed to an additional recording device, the Pt-102Vn preserves picture quality and minimizes distortion as you distribute the signal across longer distances and multiple destinations. Its robust design, practical performance, and intuitive operation make it a staple for professional AV racks and desktop setups alike. With the Pt-102Vn, you gain a dependable, plug-and-play solution that ensures your video remains sharp, synchronized, and easy to manage from source to screen.

• One input, two outputs: Connect a single video source and receive two identical, buffered outputs, enabling simultaneous monitoring on two displays or distribution to recording equipment without compromising signal integrity.
• Supports CVBS and SDI: Designed to work with both standard-definition composite video and SDI formats, offering flexible compatibility for mixed equipment environments and future-proofing for evolving AV setups.
• Buffering and isolation for reliability: Built-in buffering maintains signal strength and isolates outputs from each other, reducing crosstalk, noise, and potential reflections that can degrade video quality on longer runs.
• Enhances long-distance distribution: Specifically engineered to extend the reach of video feeds, helping you deliver clear, stable pictures to distant displays or downstream devices without loss of detail.
• Compact, rugged design for easy integration: The Pt-102Vn combines a durable chassis with straightforward wiring, allowing seamless integration into desktop or cabinet installations and minimal footprint in crowded AV racks.

Technical Details of Kramer Pt-102Vn

• Input: 1 x video input capable of handling Composite Video (CVBS) or SDI signals
• Outputs: 2 x identical buffered video outputs
• Function: One-input, two-output distribution amplifier with buffering and isolation to preserve signal integrity
• Signal compatibility: Supports both CVBS and SDI formats
• Application: Ideal for extending video distance and distributing a single source to multiple displays or recording devices

How to install Kramer Pt-102Vn

• Place the Pt-102Vn on a stable surface or mount it in a compatible AV rack according to your installation preference.
• Connect your video source to the single input BNC connector using a high-quality video cable appropriate for the signal type (CVBS or SDI).
• Connect the two output devices (monitors, projectors, or recorders) to the two output BNC connectors using matching 75-ohm video cables.
• Power the distribution amplifier with the manufacturer-recommended power supply and verify that all connected equipment is powered on.
• Power on your video source and downstream devices, then test the signal at each output to confirm identical, clean video transmission with synchronized timing.

Frequently asked questions

• Q: What signals does the Pt-102Vn support? A: It supports composite video (CVBS) and SDI signals, providing flexibility for different types of equipment in your AV system.
• Q: How many outputs does it provide? A: The Pt-102Vn features two identical outputs, allowing you to drive two displays or two downstream devices from a single input.
• Q: Does it require power? A: Yes, the distribution amplifier is powered by an external supply; ensure you use the correct Kramer power adapter specified for the unit.
• Q: Can I use it in a rack-mount environment? A: The Pt-102Vn is designed for compact deployment and can fit in standard AV rack setups with appropriate mounting hardware; refer to your installation needs for the best fit.
