Kramer 4K60 4:2:0 HDMI Audio Embedder/De-Embedder

KramerSKU: 4382089

Price:
Sale price$513.00

Description

Kramer 4K60 4:2:0 HDMI Audio Embedder/De-Embedder

Introducing the FC-69, a high-performance 4K60 HDMI audio embedder and de-embedder designed for professional AV installations, broadcast environments, and streaming studios that demand precise, reliable audio routing alongside pristine video. This compact yet feature-rich device uniquely handles both embedding and de-embedding tasks, enabling you to inject analog audio into the HDMI output or extract audio from HDMI inputs or from the HDMI-ARC channel and deliver it simultaneously to S/PDIF coax and unbalanced stereo outputs. With support for 4Kx2K at 60 Hz and 4:2:0 chroma subsampling, the FC-69 ensures compatibility with today’s displays while preserving video clarity. Whether you’re outfitting a conference room, a home theater, or a live production setup, this tool gives you flexible, synchronized audio paths that simplify complex signal routing and reduce latency, all in a compact, dependable chassis.

  • Versatile HDMI audio routing — FC-69 excels as both an audio embedder and a de-embedder. Embed analog audio into the HDMI output when you need to synchronize audio with video across displays, or de-embed audio from HDMI input or ARC to feed S/PDIF and unbalanced stereo lines. This dual capability eliminates the need for multiple separate devices, streamlining your signal chain and reducing clutter in rack spaces.
  • 4K60 4:2:0 video support — The unit handles 4Kx2K video at 60 Hz with 4:2:0 chroma subsampling, ensuring compatibility with modern video sources, projectors, and displays while maintaining high video fidelity. This makes it suitable for professional environments where ultra-high-definition video performance matters as much as audio routing accuracy.
  • Simultaneous digital and analog audio outputs — When de-embedding, audio is delivered through digital S/PDIF coax and unbalanced stereo RCA outputs, while video continues to pass through HDMI. For embedding, you can pull analog audio in from L/R inputs and combine it with the HDMI stream. This multi-output capability supports diverse downstream equipment, from soundbars and receivers to external DACs and dedicated recording interfaces.
  • ARC-aware and source-flexible operation — The FC-69 accommodates Audio Return Channel workflows, allowing audio from the display’s ARC-enabled HDMI path to be routed to external audio devices. This is particularly valuable in setups where you need to capture room audio or route TV/monitor audio to a separate system without extra cabling or switching hardware.

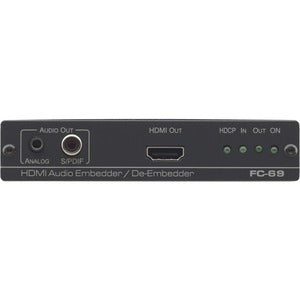

  • Compact, robust design for professional use — Built to survive demanding installation environments, the FC-69 combines durable construction with simple, intuitive controls. LED indicators provide clear status feedback, and the device’s compact footprint makes it easy to mount in rack frames, portable cases, or AV cabinets alongside other critical equipment.

Technical Details of Kramer 4K60 4:2:0 HDMI Audio Embedder/De-Embedder

  • Video support: 4Kx2K at 60 Hz, with 4:2:0 chroma subsampling. This ensures compatibility with most 4K sources while delivering reliable, stable video performance.
  • HDMI inputs/outputs: One HDMI input and one HDMI output for bidirectional video and audio handling. This configuration enables clear separation between source and display while maintaining synchronized audio paths.
  • Analog audio embedding: L/R stereo analog input to embed into the HDMI output signal, enabling seamless integration of external analog sources (microphones, line-level devices) into the HDMI stream for downstream displays and AV receivers.
  • HDMI audio de-embedding: De-embed audio from HDMI input or from HDMI ARC, providing separate digital (S/PDIF coax) and unbalanced stereo outputs for external processing, recording, or amplification.
  • Outputs for de-embedded audio: S/PDIF coax digital output and unbalanced stereo RCA outputs, allowing connection to a wide range of AV receivers, DACs, and analog audio equipment.
  • ARC compatibility: Support for Audio Return Channel workflows enables routing audio from the display back to external devices without additional cabling or devices, simplifying complex setups.
  • Power: External power supply required. The FC-69 is designed to provide stable operation in professional configurations and is suitable for rack mounting or portable use.
  • Indications: Front-panel LED indicators provide quick visual confirmation of power, input status, and audio routing activity to assist technicians during installation and troubleshooting.

How to install Kramer 4K60 4:2:0 HDMI Audio Embedder/De-Embedder

  • Power down all equipment before wiring to prevent static or damage. Place the FC-69 in a suitable location within your rack or on a stable surface where cables can reach all devices without strain.
  • Connect the video source to the HDMI input on the FC-69. This could be a Blu-ray player, streaming device, computer, or any HDMI 4K60-capable source.
  • Connect the HDMI output from the FC-69 to the display (TV or projector). Ensure the display is configured to accept 4K60 input if needed.
  • To embed analog audio into the HDMI stream, connect your analog audio source to the L/R RCA input on the FC-69. If you want a mono mix or specific channel routing, configure the device accordingly via its controls or settings.
  • If de-embedding is required, connect the HDMI source you want to extract audio from to the FC-69’s HDMI input and connect the S/PDIF coax and stereo RCA outputs to your audio devices (receivers, DACs, recorders, etc.).
  • Power up the FC-69 and all connected devices. Use the on-device controls or attached controls to select the appropriate mode (embed or de-embed) and confirm that HDMI video and audio are flowing correctly to all destinations. Check the LED indicators for status feedback during setup.
  • For ARC workflows, enable ARC on the display and route the ARC audio through the FC-69 to your external audio system as needed. Verify synchronization between video and audio across devices and adjust any display or system lip-sync settings if necessary.
  • Test with multiple content types (movies, games, music, live streams) to ensure consistent performance across resolutions and bitrates. If any audio/video mismatch occurs, re-check cable quality, EDID considerations, and mode selection on the FC-69 and connected displays.

Frequently asked questions

  • Q: What exactly does the FC-69 do? A: The FC-69 is a 4K60 HDMI audio embedder and de-embedder. It can embed analog audio into an HDMI output, or de-embed audio from HDMI input or HDMI ARC and route it to S/PDIF and unbalanced stereo outputs simultaneously. It provides flexible audio routing for professional AV setups and live productions.
  • Q: What video resolutions does it support? A: It supports 4Kx2K at 60 Hz with 4:2:0 chroma subsampling, ensuring compatibility with modern 4K displays while maintaining stable performance.
  • Q: Can it handle Audio Return Channel (ARC)? A: Yes, the FC-69 is designed to work with ARC workflows, enabling audio from the display to be routed to external audio devices without additional cabling.
  • Q: How many audio outputs are available for de-embedding? A: When de-embedding, you get both a digital S/PDIF coax output and unbalanced stereo RCA outputs, giving you multiple options for connecting to audio equipment.
  • Q: Do I need a separate power supply? A: Yes, external power is required to operate the FC-69. Ensure you use the included or specified power supply for reliable performance in professional installations.
  • Q: Is this device suitable for rack installation? A: The FC-69 is compact and built for professional environments, making it well-suited for rack mounting or placement in AV cabinets alongside other gear.
