Description

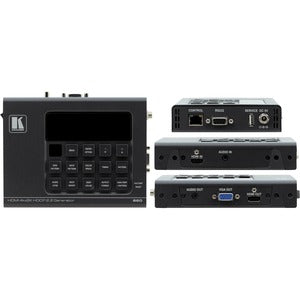

The 860 HDMI 18G (6G per graphic channel) Signal Generator & Analyzer is an advanced and handy tool for generating, testing and verifying the signal path within your (up to) 4K@60Hz (4:4:4) HDMI 2.0/HDCP 2.2 ecosystem. With 88 built-in resolutions, 55 test patterns and over a dozen types of AV analysis functions, this unit provides an enormous range of testing options. HDMI data packet, EDID and HDCP analysis is supported along with EDID upload and emulation. Additionally the Status and Control Data Channel (SCDC) can be monitored, enabling HDMI 18G signal detection and analysis. Up to 8 channels of LPCM audio test tones can be generated with a wide range of frequencies and audio levels.
- HDMI Output Supports - 350p, 480p, 576p, 720p, 1080i, 1080p, 640?480, 800?600, 1024?768, 1280?1024, 1366?768, 1400?1050, 1440?900, 1600?900 (RB), 1600?1200, 1680?1050, 1920?1200 (RB), 3G4K, 6G4K.
- VGA Output Supports - 350p, 480p, 576p, 720p, 1080i, 1080p, 640?480, 800?600, 1024?768, 1280?1024, 1366?768, 1400?1050, 1440?900, 1600?900 (Reduced Blanking; RB), 1600?1200, 1680?1050, 1920?1200 (RB), 2048?1080p.
- HDMI Timing Generation - Up to 4096?2160 @60Hz (4:4:4), 8?bit.
- HDR Bypass & Analysis Support.
- Analysis of Input Audio Signals.
- Analysis & Control of HDCP v1.4 and v2.2.
- Analysis & Emulation of EDID Data - Including SCDC.
- Analysis of HDMI Data Packet.
- Data Path Analysis - Source and sink up to 18G HDMI signals (6G per graphic channel).
- Standards Compliance - HDMI 2.0, DVI 1.0 and HDCP 1.4/2.2.
- Max. Resolution - 4K@60Hz (4:4:4).
