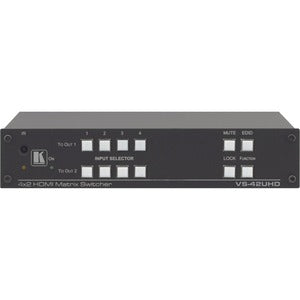

Kramer VS-42UHD 4x2 HDMI Automatic Matrix Switcher

Introducing the Kramer VS-42UHD, a premium 4x2 HDMI matrix switcher engineered for demanding AV installations and high-end home theater setups. This device excels at delivering pristine 4K@60Hz video (4:2:0) across two outputs, while intelligently reclocking and equalizing incoming HDMI signals to maintain image fidelity even over longer cable runs. With the ability to route any input to Output A, Output B, or both simultaneously, the VS-42UHD offers flexible, scalable switching that simplifies complex multiscreen environments—from corporate boardrooms and digital signage networks to immersive home cinema systems. Built to meet professional performance standards, it helps ensure rock-solid reliability and sharp, color-accurate video across multiple displays with minimal latency and effortless control.

• Flexible routing for multi-display setups: Selectively route any of the four HDMI inputs to Output A, Output B, or broadcast to both outputs at once. This capability enables synchronized or independent displays across rooms or zones, simplifying multi-room installations without compromising signal integrity.
• Robust 4K60 4:2:0 support with legacy resolution compatibility: The VS-42UHD handles ultra-high-definition content at 4K resolution with 60 Hz refresh and 4:2:0 chroma subsampling, while also supporting WUXGA for legacy sources. This broad compatibility ensures you can enjoy pristine 4K content from current sources while still accommodating older devices in your system.
• Signal integrity through reclocking and equalization: To preserve image clarity across varying cable lengths and installations, the switcher reclocks and equalizes HDMI signals. This feature minimizes jitter, color bleeding, and motion artifacts, delivering stable, high-quality video even in challenging room layouts.
• High data-rate performance for demanding sources: With a maximum data rate of 8.91 Gbps (2.97 Gbps per graphics channel), the VS-42UHD supports high-bandwidth signals and rich color detail, ensuring reliable transmission of complex video streams, high-dynamic-range content (as supported by sources), and fast-moving scenes without degradation.
• HDCP compliant for protected content: The matrix switcher provides HDCP compliance to ensure secure content playback across connected displays and displays’ receivers, enabling seamless integration with Blu-ray players, streaming devices, set-top boxes, and other protected sources without interruptions.

Technical Details of Kramer VS-42UHD

• Max Data Rate: 8.91 Gbps total, 2.97 Gbps per graphics channel
• Max Resolution: 4K@60Hz (4:2:0) and WUXGA
• Inputs: 4 HDMI inputs
• Outputs: 2 HDMI outputs
• Signal Processing: Reclocking and equalization for signal integrity
• HDCP: HDCP compliant
• Control and Routing: Automatic matrix switching with flexible routing from any input to one or both outputs

How to install Kramer VS-42UHD

• Plan your layout: Determine which sources (HDMI devices) will connect to Input 1–4 and which displays will connect to Output A and Output B. Consider cable lengths and potential interference to optimize performance.
• Power down equipment: Before making any connections, switch off all sources and displays to prevent HDMI handshake issues during setup.
• Connect HDMI sources: Attach your HDMI sources to Inputs 1 through 4 using high-quality HDMI cables. Ensure cables are securely seated at both ends.
• Connect displays: Connect your display devices to Outputs A and B. If you intend to drive two displays from the same source, plan your routing accordingly to avoid unintended signal conflicts.
• Power and configure: Plug in the VS-42UHD and power on the system. Use the front-panel controls or a compatible control system to select the desired input-to-output routing. If available, configure EDID settings to match your displays for optimal compatibility.
• Test and refine: Verify each input routed to each output, check for seamless handshake, and confirm 4K60 4:2:0 playback on both displays. Make adjustments as needed to optimize latency, switching speed, and image quality.

Frequently asked questions

• What does 4K60 4:2:0 mean for my setup? It refers to a 4K resolution at 60 Hz with chroma subsampling at 4:2:0, which reduces color bandwidth slightly but is widely supported by many display devices while preserving sharp luminance details for most content. The Kramer VS-42UHD maintains compatibility with both high-resolution sources and legacy displays by offering this standard format.
• Can I route an input to both outputs at the same time? Yes. The VS-42UHD is designed to route any single input to Output A, to Output B, or to both outputs simultaneously, enabling synchronized multi-display presentations or different content on each screen if desired.
• Is the switcher suitable for professional AV installations? Absolutely. Its robust video processing, signal integrity features, and flexible routing are tailored for professional environments such as classrooms, conference rooms, digital signage networks, and advanced home theaters where reliable performance is critical.
• Will it work with protected content? Yes. The VS-42UHD is HDCP compliant, ensuring protected content is transmitted securely from source devices to displays without encrypted-content issues.
• How do I ensure best performance with long HDMI cables? The built-in reclocking and equalization help compensate for cable losses, maintaining image quality over longer distances. For optimal results, use high-quality HDMI cables and follow recommended cable length guidelines for 4K60 signals.
• What kind of control options are available? The product supports straightforward control via its front panel and is compatible with common control systems used in professional AV setups, making integration with room controllers or automation systems straightforward.
