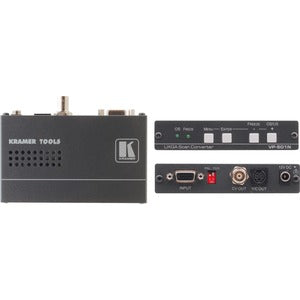

Kramer VP-501N Scan Converter

The Kramer VP-501N is a high‑performance scan converter engineered for professionals who work with computer graphics and HDTV content. Designed to bridge the gap between high‑resolution computer sources and consumer displays, this device reliably converts input signals up to UXGA (1600x1200) and 1080p HDTV into composite and S‑Video (Y/C) formats. Capable of handling PAL or NTSC formats, the VP-501N delivers crisp, stable images with accurate color reproduction, ensuring presentations, classrooms, studios, and control rooms look their best on a wide range of projectors and displays. Built to meet the demands of professional AV environments, it balances powerful image processing with compact, user‑friendly operation, providing seamless integration into existing signal chains without sacrificing timing or fidelity.

• Ultra‑high‑resolution input support: Accepts computer graphics and HDTV component video signals at resolutions up to UXGA (1600x1200) and 1080p, preserving detail from PC desktops, CAD programs, graphic design work, and HD video sources.
• Dual outputs for maximum compatibility: Simultaneously outputs composite and S‑Video (Y/C), enabling easy connection to projectors, CRT displays, tape decks, and other consumer or professional video devices while maintaining synchronized timing across formats.
• Global format support: Built to operate in PAL or NTSC environments, with flexible timing options to ensure stable pictures on displays worldwide—ideal for international installations, classrooms, and broadcast‑adjacent workflows.
• Professional signal conversion: Serves as a dedicated drain and transfer solution between computer graphics sources and video displays, converting between signal types without introducing significant latency or distortion, while preserving color accuracy and edge detail.
• Rugged Kramer engineering in a compact form: Encased for rack or desktop use, the VP‑501N combines reliable performance with a compact footprint suitable for crowded AV racks and portable setups alike, backed by Kramer’s reputation for durability and support.

Technical Details of Kramer VP-501N

• Model: VP-501N
• Input: Computer graphics and HDTV component video signals, supporting resolutions up to UXGA (1600x1200) and HDTV up to 1080p
• Output: Composite video and S‑Video (Y/C) signals simultaneously
• Formats: PAL or NTSC
• Signal conversion: Scan converter and format adaptation from computer/HD sources to consumer video formats
• Enclosure: Rack‑mountable chassis designed for professional AV installations and compact equipment racks

How to install Kramer VP-501N

To achieve optimal results, place the VP‑501N near your display system and ensure adequate airflow in the equipment rack or on the workspace bench. Connect your computer graphics source (such as a PC, workstation, or graphics card) to the VP‑501N input using the appropriate interface (for example, a VGA or component connection compatible with the unit). Run separate cables from the VP‑501N outputs to your display devices: one cable to a projector or monitor using the composite input, and a second connection to a display or recording device using S‑Video (Y/C). Power on the converter and the connected displays. Select the desired output format (PAL or NTSC) on the VP‑501N, then adjust scaling, positioning, and timing for the best fit on your screen. If the image appears shifted or clipped, fine‑tune the output size and sync settings until the picture is centered and crisp. In environments with mixed sources, test with representative content to verify color fidelity and edge sharpness across both outputs. Keep cabling tidy and shielded to minimize interference, and avoid long cable runs that could degrade signal quality. The VP‑501N is designed for straightforward, reliable operation in busy AV setups, whether in classrooms, boardrooms, studios, or event venues.

Frequently asked questions

• What resolutions does the VP‑501N support? It accepts input resolutions up to UXGA (1600x1200) and HDTV up to 1080p. The device scales or converts these inputs to composite and S‑Video outputs with preserved detail and color integrity.
• Can it output to both composite and S‑Video simultaneously? Yes. The VP‑501N provides simultaneous outputs for broad compatibility with different displays and recording devices without needing multiple boxes.
• Does it support PAL and NTSC formats? Yes. The converter can operate in either format, making it suitable for international installations and diverse AV environments.
• How do I install and configure the VP‑501N? Connect your source to the input, connect the outputs to your display devices, select the desired format (PAL or NTSC), and adjust scaling and alignment for a clean image. The unit is designed for easy setup and reliable operation in professional contexts.
• Is the VP‑501N compatible with standard projectors and monitors? Yes. Since it outputs standard composite and S‑Video signals, it works with a wide range of consumer and professional displays, including projectors, CRTs, and video monitors.
• What environments is the VP‑501N suited for? It excels in classrooms, corporate boardrooms, broadcast studios, lecture halls, and event venues where high‑resolution computer graphics must be displayed on traditional video screens with reliable timing and color accuracy.
